3ware AMCC 9690SA-8I-KIT

Úvod Řadiče SAS/SATA SAS/SATA II (3Gb/s) 3ware AMCC 9690SA-8I-KIT

3ware AMCC 9690SA-8I-KIT

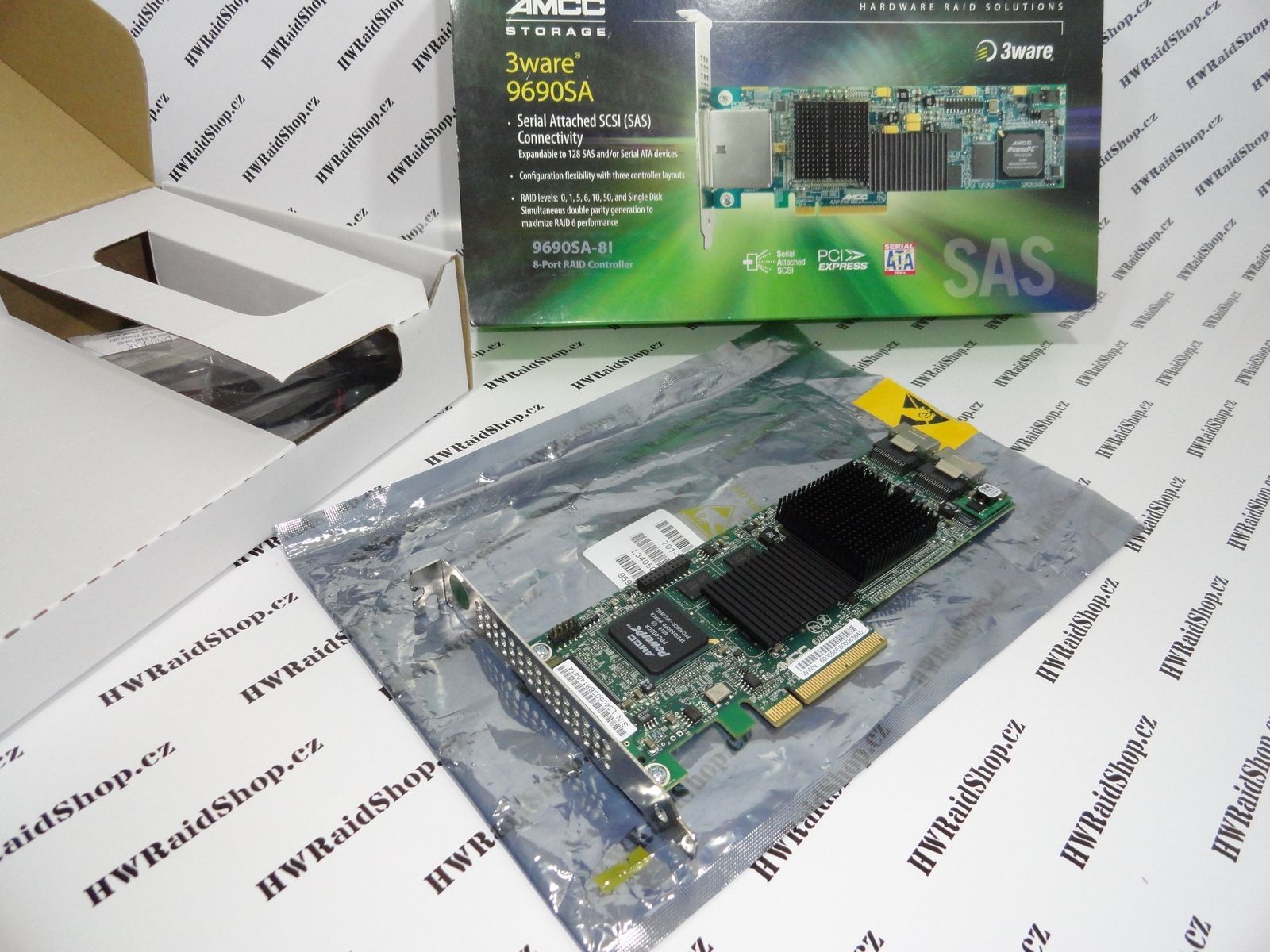

Nové balení bylo rozbaleno pro kontrolu a otestování.

  • RAID 0, 1, 5, 6, 10, 50 and Single Disk
  • 2 x 8087 mini-SAS Internal Connectors
Výrobce: AMCC/3WARE/LSI
Kód: 9690SA-8I-KIT

Dostupnost: skladem
Počet ks: 1 ks
12 500,- Kč5 590,- Kč

Popis 3ware AMCC 9690SA-8I-KIT

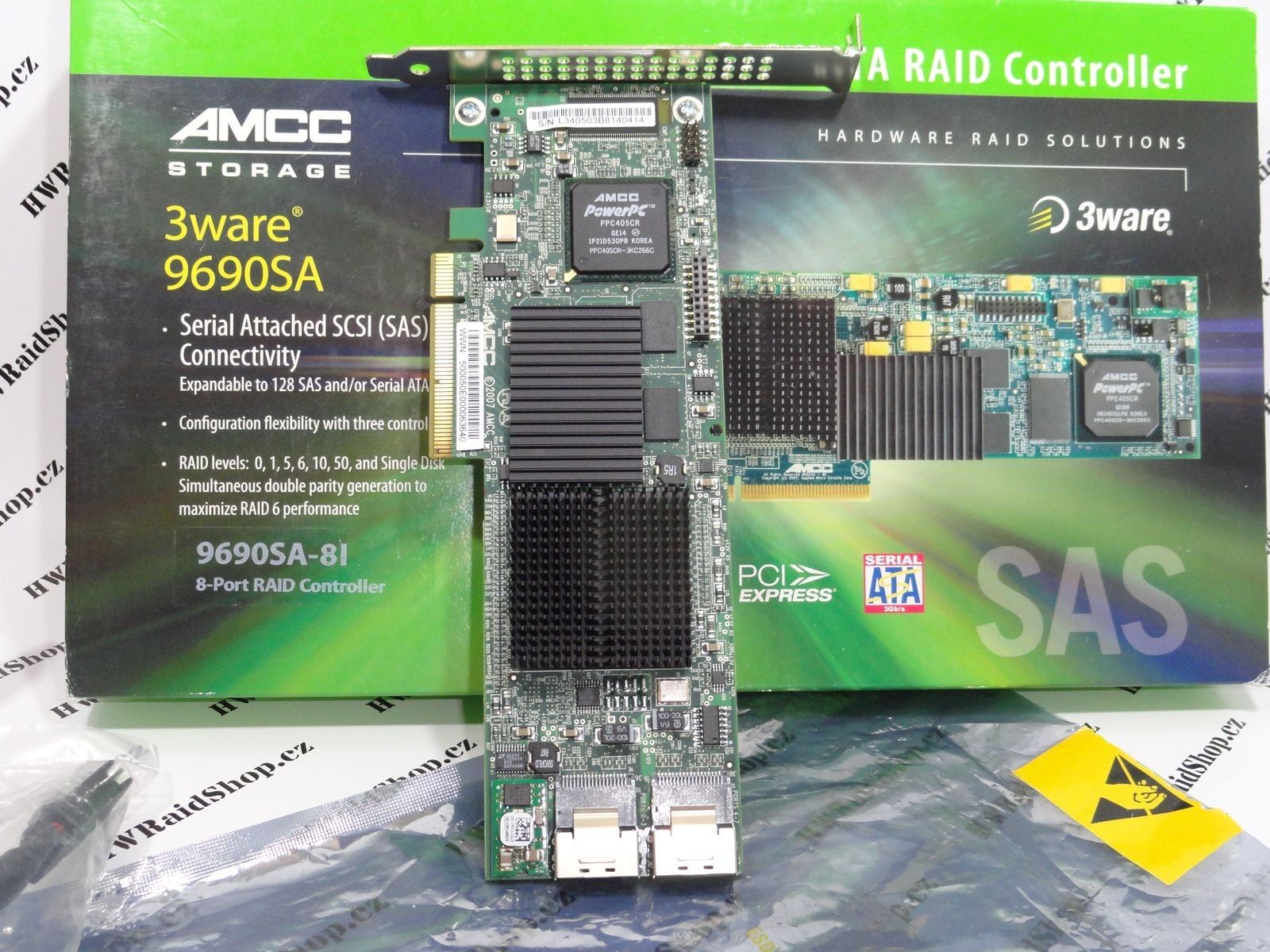

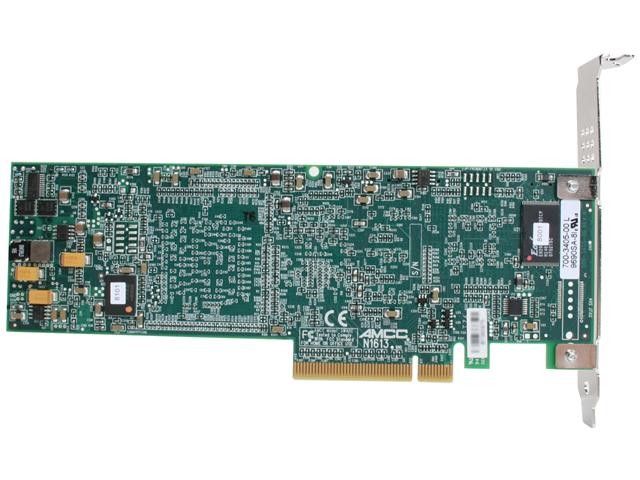

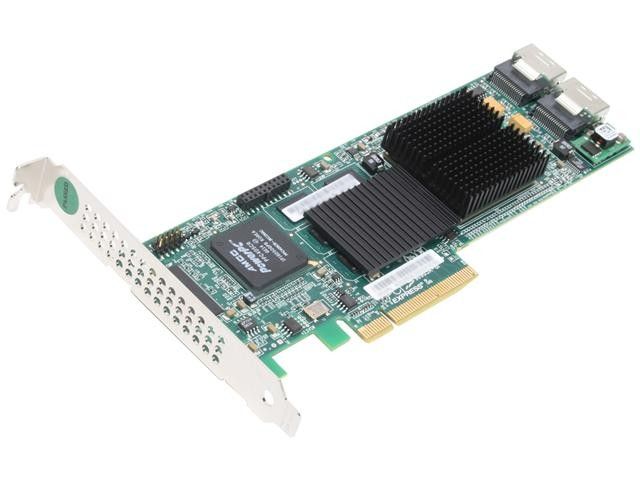

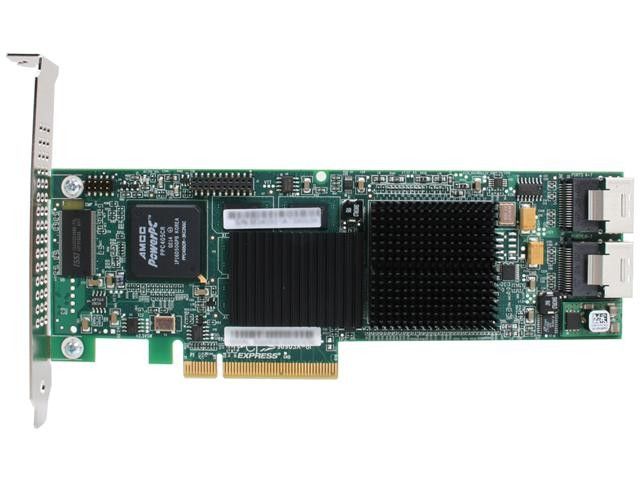

Raid řadič 3ware AMCC 9690SA 8 int SAS/SATA



Update firmware na nejnovější verzi !! podpora  3TB a 4TB disků viz. odkaz



3ware 9690SA Product Brief - LSI

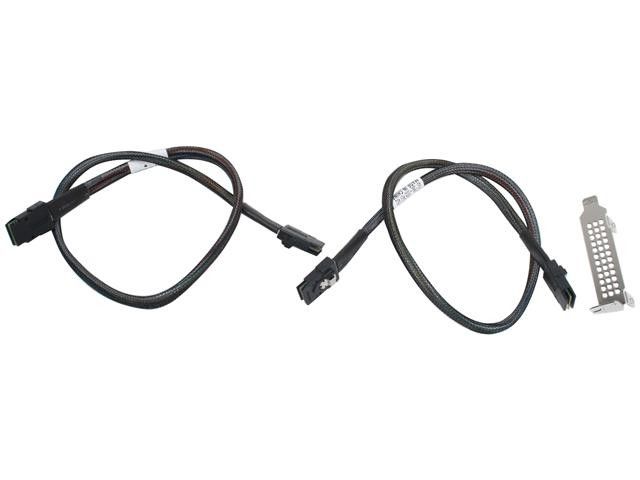

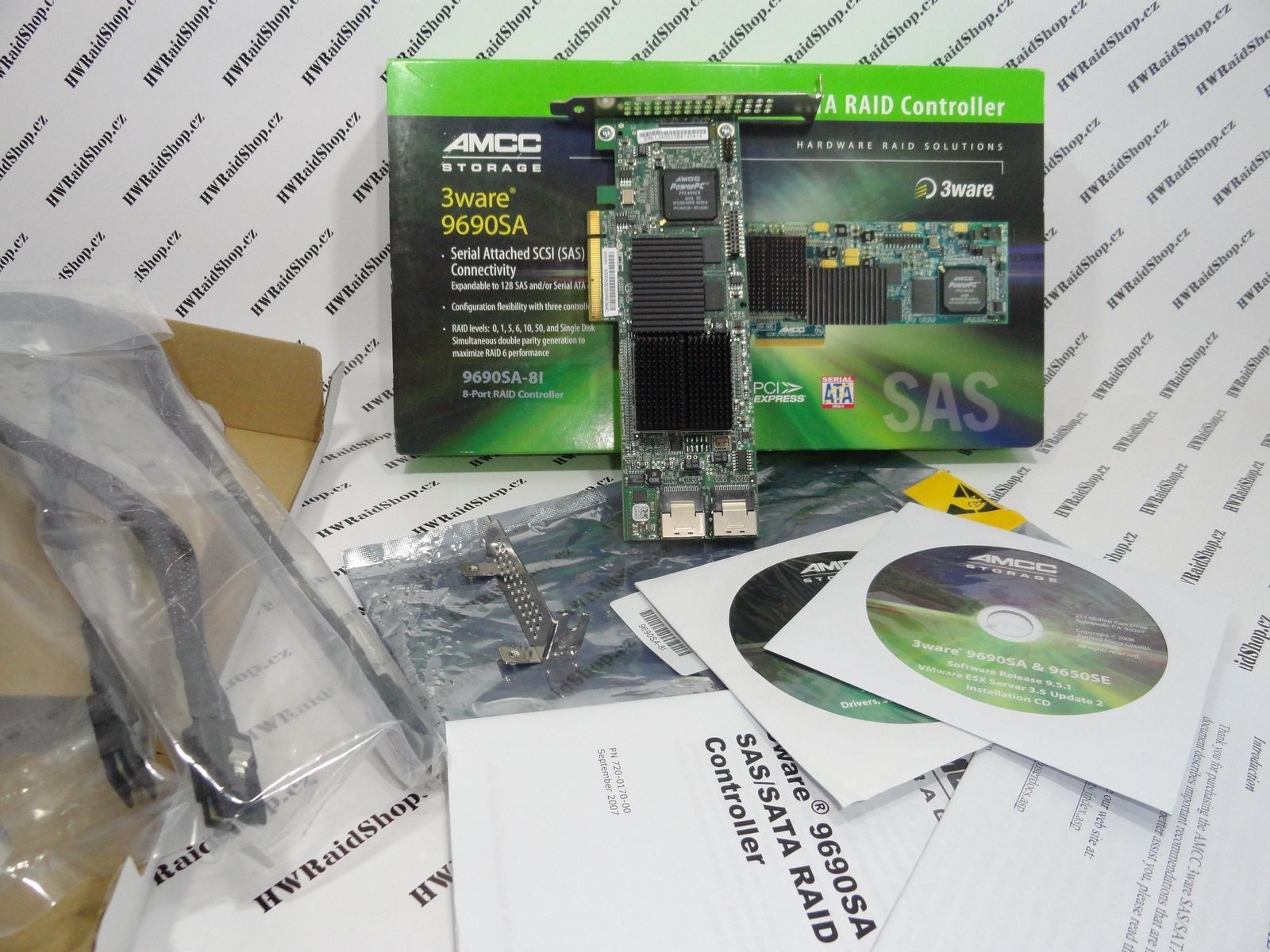

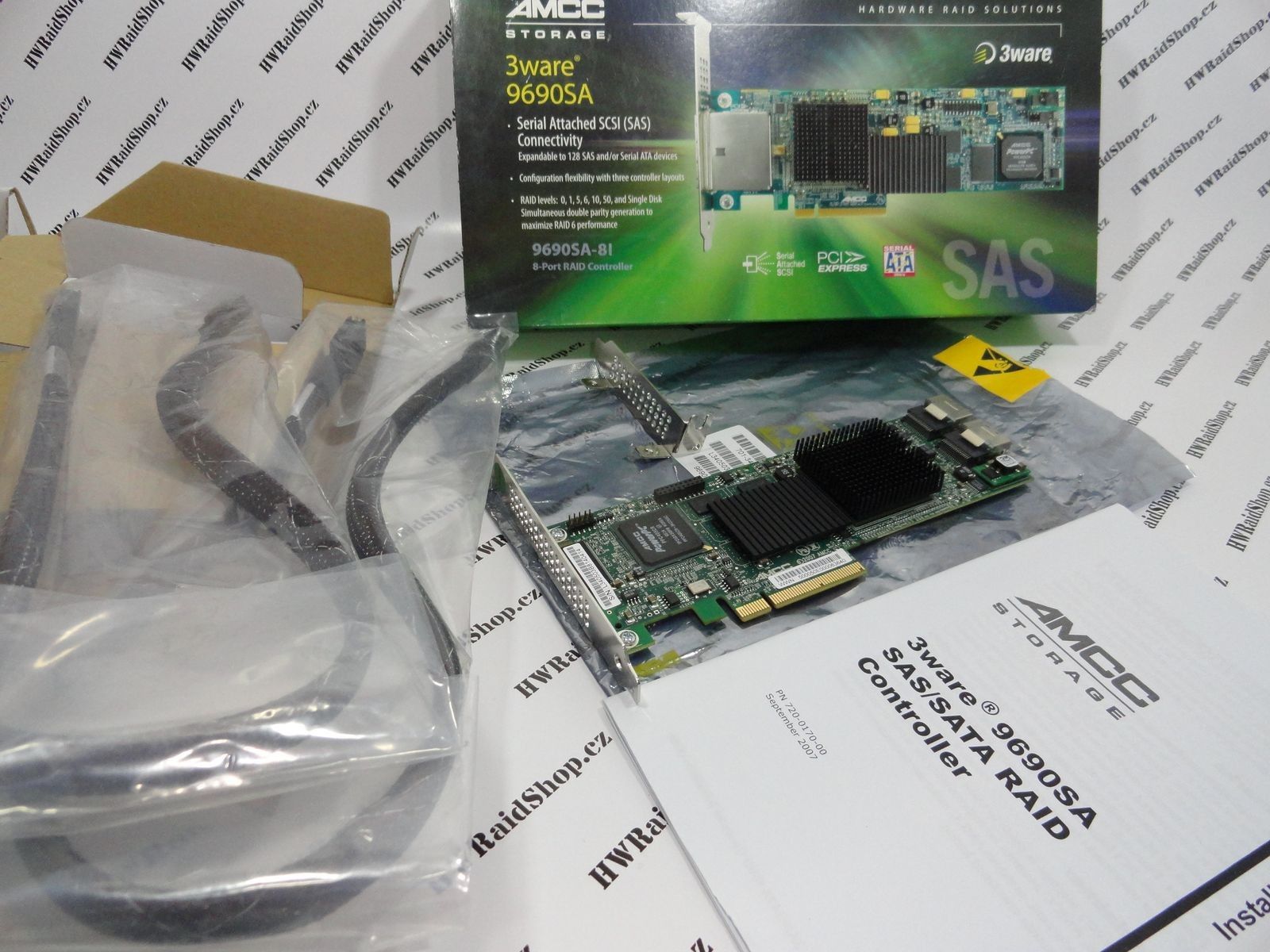

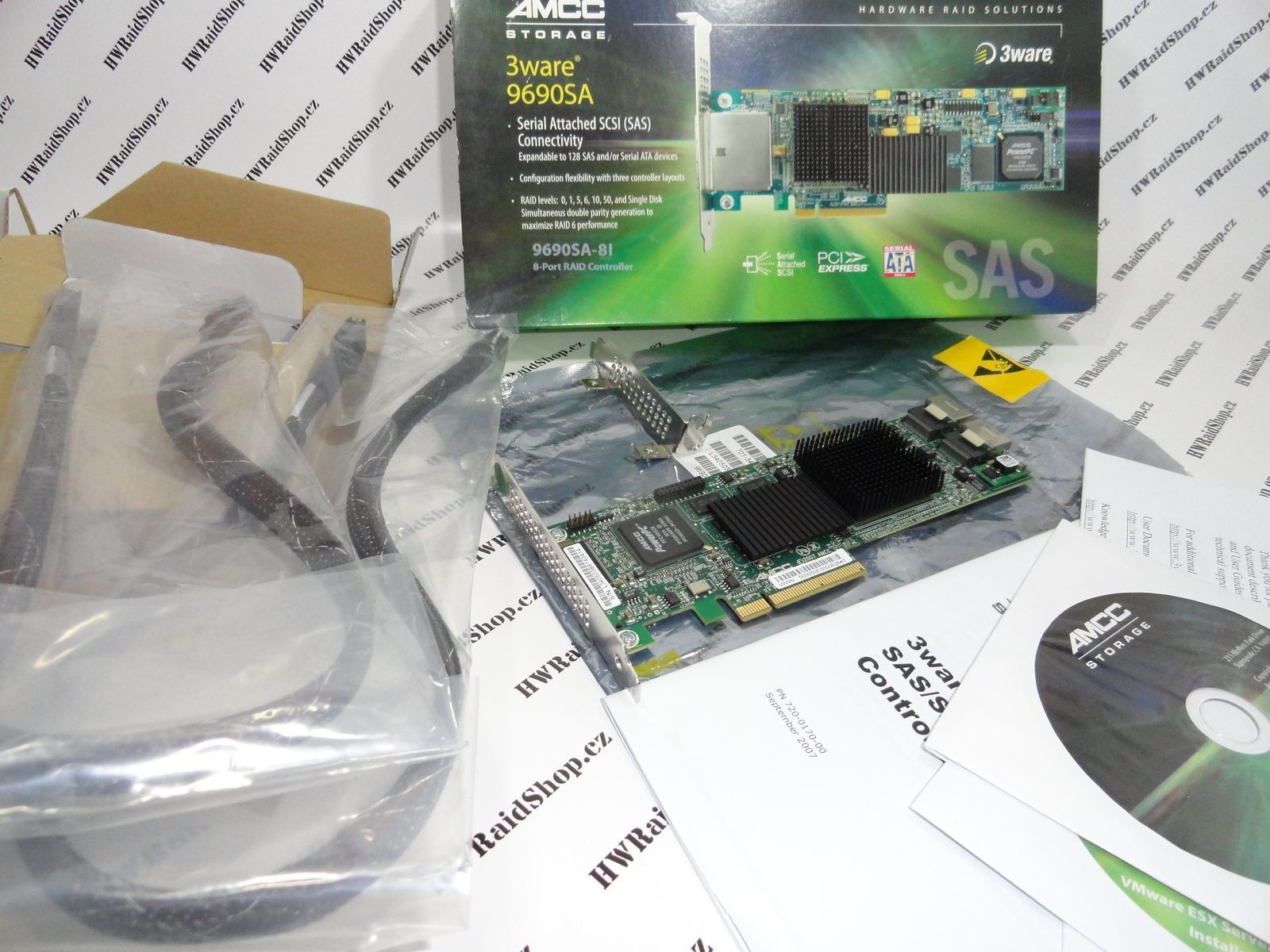

KIT= Krabicová verze obsahuje raid řadič, manuály, instalační cd, dvojici kabelu SFF-8087 to SFF-8087


8 kanálovy SAS/SATA řadič do PCI-Express (x8). 8 interních kanálů.

- RAID 0, 1, 5, 6, 10, 50

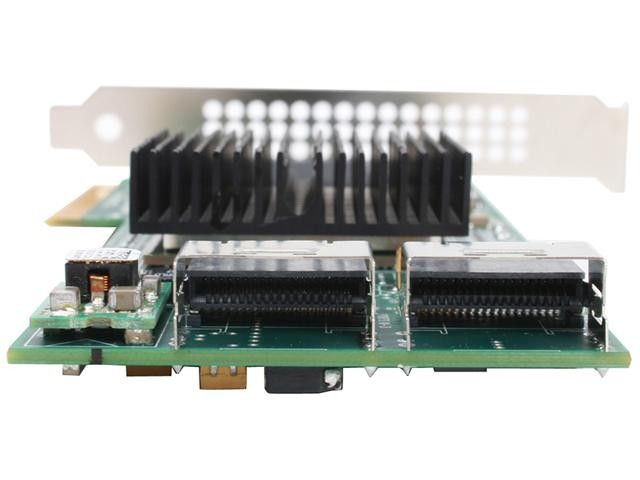

- SFF-8087 mini-SAS konektory
- 512MB DDR2 533 Onboard Memory
- low profile
- 8th-generation StorSwitch™ non-blocking switched architecture
- On-board I/O RISC processor and RAID offload provides true hardware RAID
- Bootable array support for greater fault tolerance of your OS
- Variable stripe size for performance tuning by application
- Support for greater than 2TB volumes
- 512MB DDR2 533 memory with ECC protection
- 128 max disk drives via SAS expanders
- Complete configuration management suite (3ware BIOS Manager (3BM), 3ware Disk Manager 2 (web based), Command Line Interface (CLI))
- SNMP support
- SMTP support for email/pager notification
- Staggered drive spin-up support
- Auto carving allows LUNs > 2TB to be divided into multiple units for legacy operating systems limited to 2TB max. per LUN
- Battery Backup Unit (BBU) with remote battery support
- Write journaling for improved performance and data protection against accidental drive removal
- Multiple SAS/SATA RAID sets
- Multiple logical unit sizes and RAID levels on one card
- Hot-swap and hot-spare support for data availability
- Dynamic sector repair for robust data protection
- S.M.A.R.T. disk drive monitoring for reliability
- Emergency Flash Recovery protects against failed firmware upgrade
- Drive activity LED support
- Array/Drive Status and drive identification LED support
- Enclosure management via I2C and SES 2.0
- Drive insertion and removal notification
- Online Capacity Expansion and RAID Level Migration



3ware 9690SA-8I-KIT

Model
Brand
3ware
Model
9690SA-8I-KIT
Specifications
Type
SATA / SAS
Internal Connectors
2 x 8087 mini-SAS
Interface
PCI-Express x8
Cache Memory
512MB DDR2 533
RAID
RAID 0, 1, 5, 6, 10, 50 and Single Disk
Operating Systems Supported
Microsoft Windows Vista/2003/XP, Red Hat Linux, SuSE Linux,
Fedora Linux, 2.4 Linux kernel, 2.6 Linux kernel, FreeBSD; 32/64-bit
Driver support for Windows, Linux and FreeBSD
Dimensions
7.3" x 2.7"
Features
8th-generation StorSwitch non-blocking switched architecture
On-board I/O RISC processor and RAID offload provides true hardware RAID - SCSI device driver model to take advantage of SAS or inexpensive Serial ATA drives
Bootable array support for greater fault tolerance of your OS
Variable stripe size for performance tuning by application
Support for greater than 2TB volumes
128 max disk drives via SAS expanders
Complete configuration management suite
3ware BIOS Manager (3BM) – easy to use BIOS configuration tool
3ware Disk Manager 2 (3DM2) – browser-based management tool
Command Line Interface (CLI) – scriptable configuration tool
SNMP support
SMTP support for email/pager notification
Staggered drive spin-up support
Auto carving allows LUNs > 2TB to be divided into multiple units for legacy operating systems limited to 2TB max. per LUN
Remote Battery Backup Unit (BBU) support
Write journaling for improved performance and data protection against accidental drive removal
Multiple SAS/SATA RAID sets
Multiple logical unit sizes and RAID levels on one card
Hot-swap and hot-spare support for data availability
Dynamic sector repair for robust data protection
S.M.A.R.T. disk drive monitoring for reliability
Emergency Flash Recovery protects against failed firmware upgrade
Drive activity LED support
Array/Drive Status and drive identification LED support
Enclosure management via I2C and SES 2.0
Drive insertion and removal notification.
Online Capacity Expansion and RAID Level Migration
RoHS compliant
Low profile form factor
PCI Express x8 configurations, PCI Express 1.1 compliant
Serial Attached SCSI (SAS) 1.1 specification support
SATA 2.6 specification support
BIOS PnP (plug and play) and BBS (BIOS boot specification) support
Raid Level: 0, 1, 5, 6, 10, 50 and Single Disk
Cache: 512MB
Celkový počet portu: 8
Počet internich portu: 8
Typ konektoru: SFF-8087 interní
Připojeni k PC: PCI-Express x8
