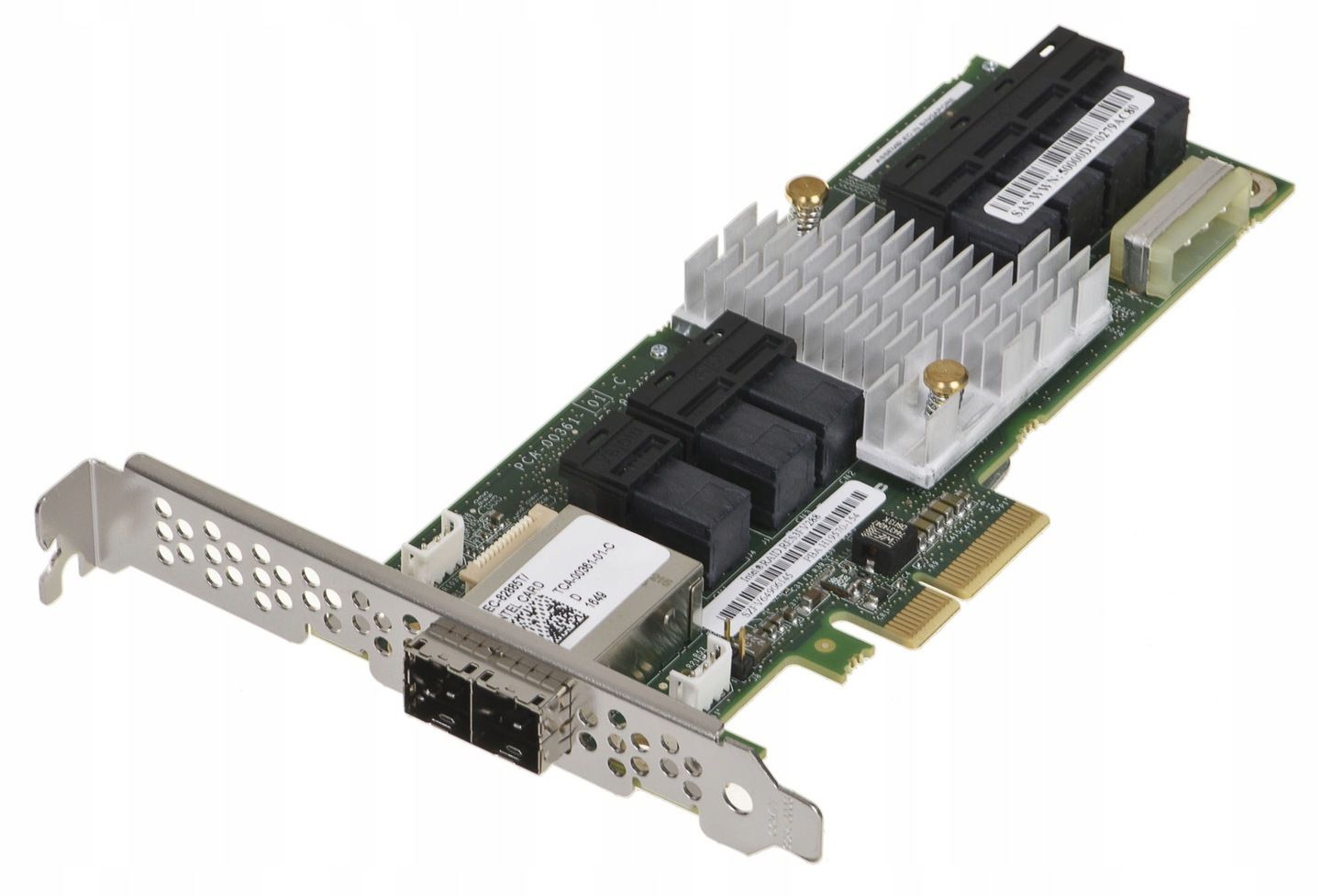

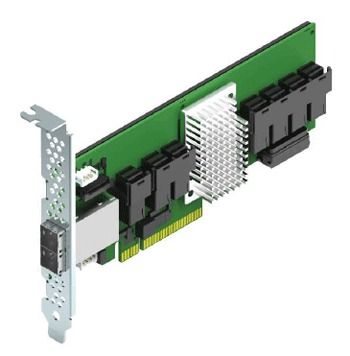

Intel RAID SAS Expander RES3FV288
Intel RAID SAS Expander RES3FV288
Nové
- 7 x SFF-8643 - HDMini-SAS Internal Connectors
- 2 x SFF-8644 - HDMini-SAS external Connectors
- Data Transfer Rate12 Gb/s
| Výrobce: | INTEL |
| Kód: | RES3FV288 |
| Dostupnost: | skladem |
| Počet ks: | 1 ks |
Intel RAID SAS Expander RES3FV288
Intel RAID Expander Card RES3FV288
Low-profile SAS/SATA expander board
(BULK = Bez kabelu a příslušenství )
Stránky výrobce:
Essentials
Low Profile MD2 Form Factor RAID Expander Card
28 internal ports and 8 external ports
SAS 3.0 (12G) compliant including 6Gbps device bandwidth aggregation for 12Gbps data transfer
Redundant dual-port capable for HA and high performance systems
Power from PCIe x1 or 4-pin connector
HD Mini-SAS Connectors
Target MarketScalable Performance
Board Form FactorLow Profile MD2 Card
Data Transfer Rate12 Gb/s
Supported DevicesSAS/SATA
RAID Level SupportedDependent on paired RAID card
# of Ports Internal28
# of Ports External8
PCIe Host InterfacePCIe x4 power only
Extended Warranty Available for Purchase (Select Countries)Yes
Additional Extended Warranty DetailsIntel RAID Extended Warranty
Included Items(1) Expander board and (2) short cables to connect to a RAID card or module
Supplemental Information
Description28 internal port and eight external port, 12-Gb/s capable expander card for use with Intel RAID products.
