Úvod
Řadiče SAS/SATA SAS/SATA III (6Gb/s)LSI 3Ware SAS 9750-8i SATA+SAS RAID Controller 8-Port 6G/s PCI Express (LSI00214) single
Řadiče SAS/SATA SAS/SATA III (6Gb/s)LSI 3Ware SAS 9750-8i SATA+SAS RAID Controller 8-Port 6G/s PCI Express (LSI00214) single

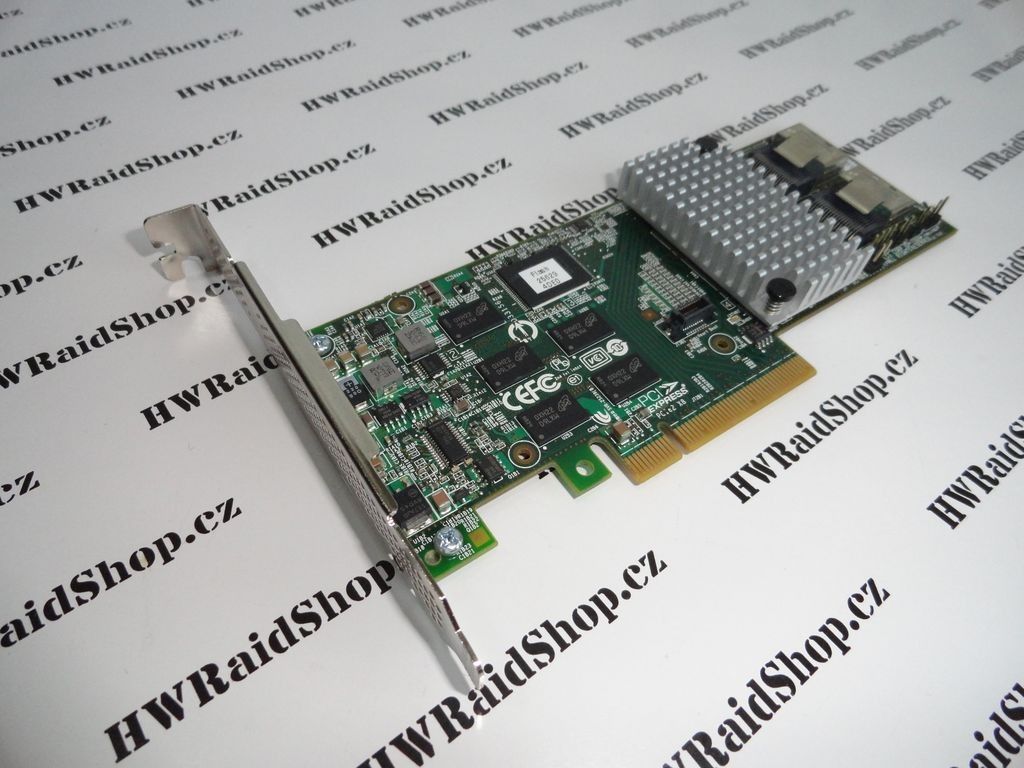

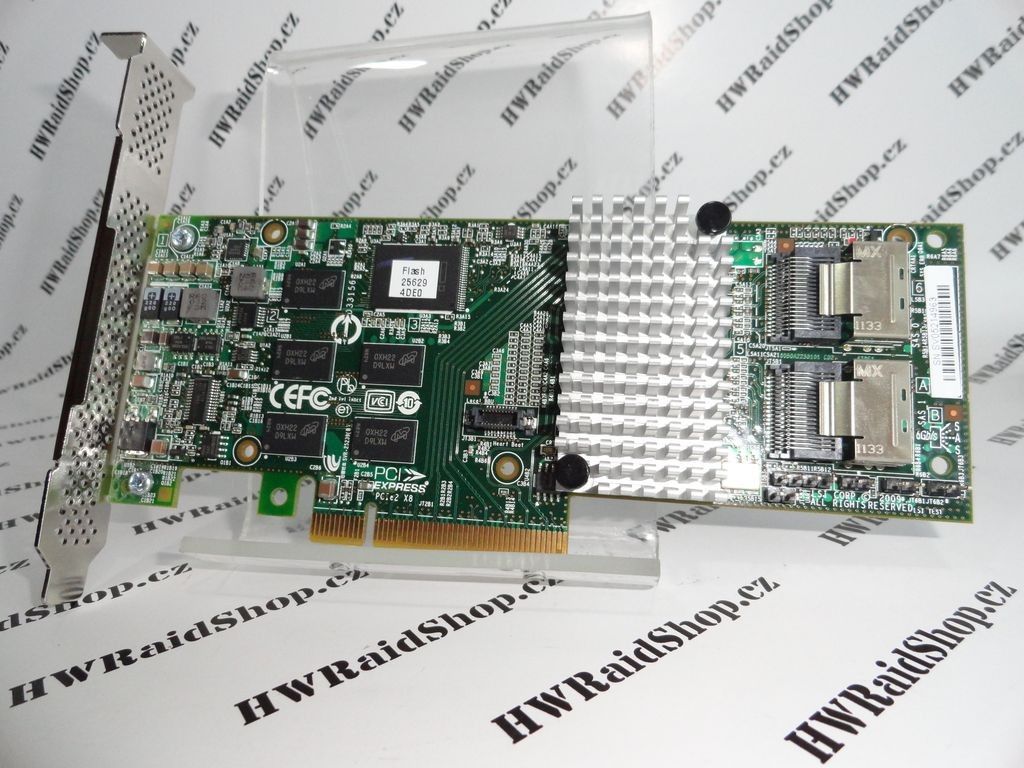

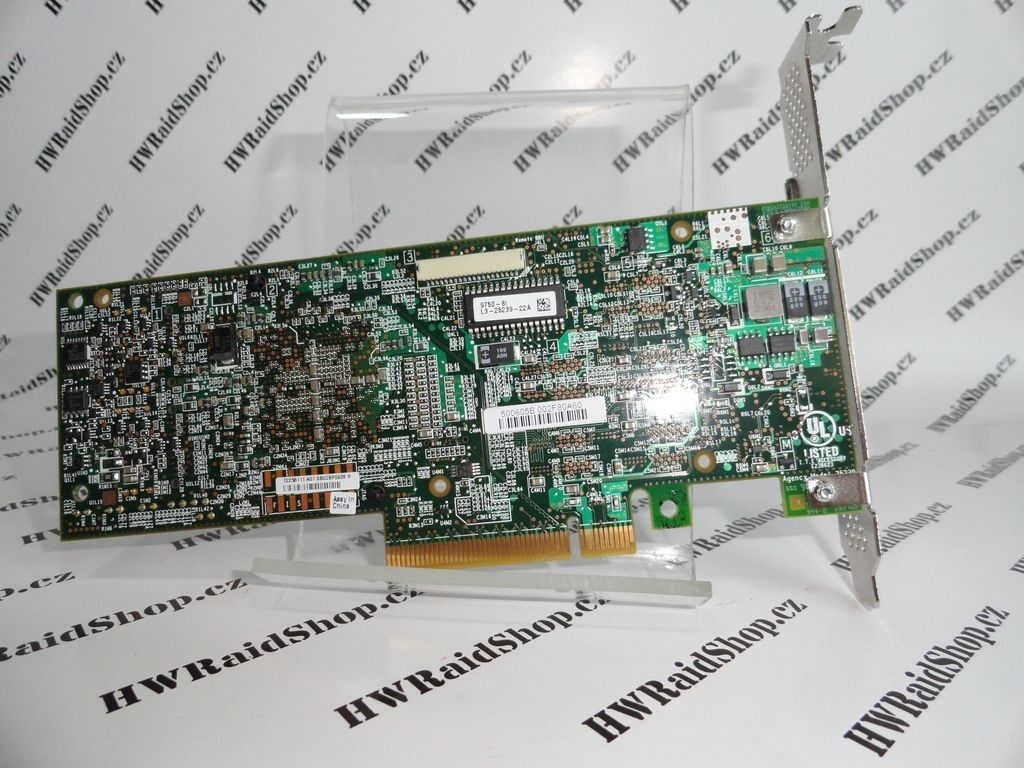

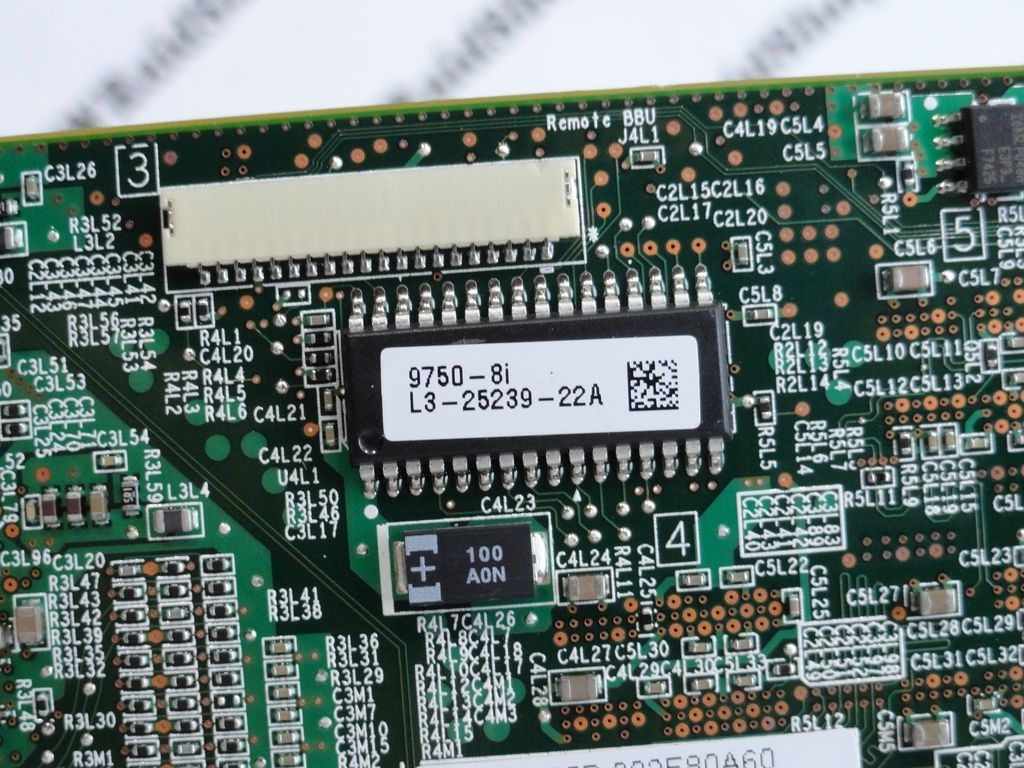

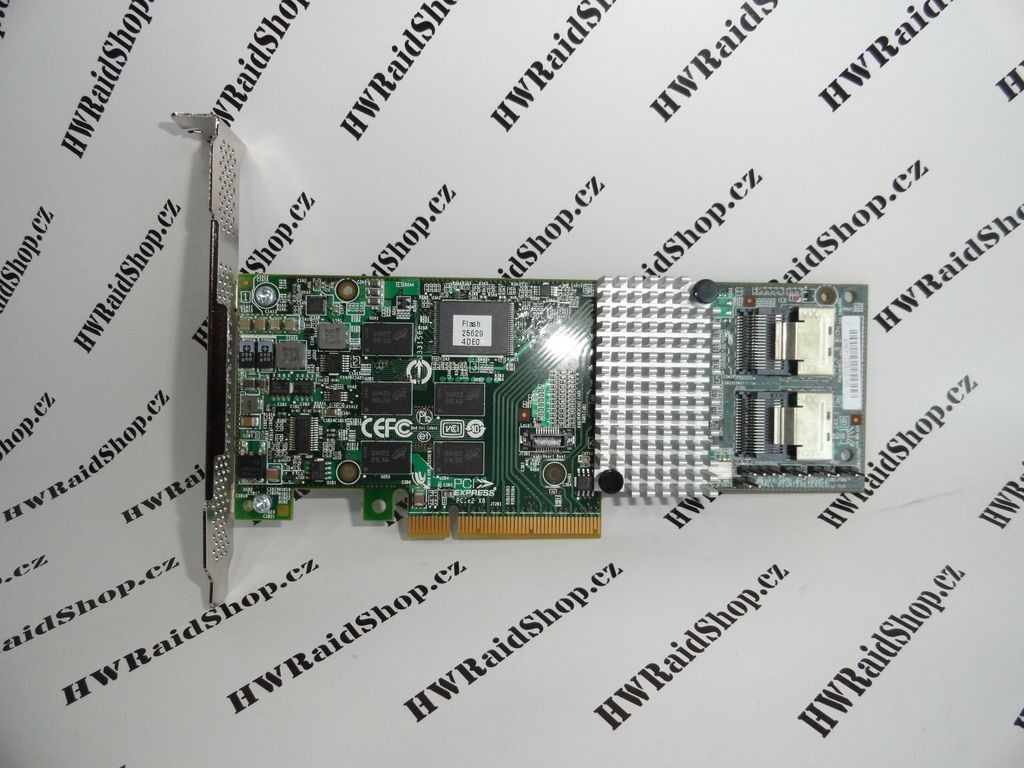

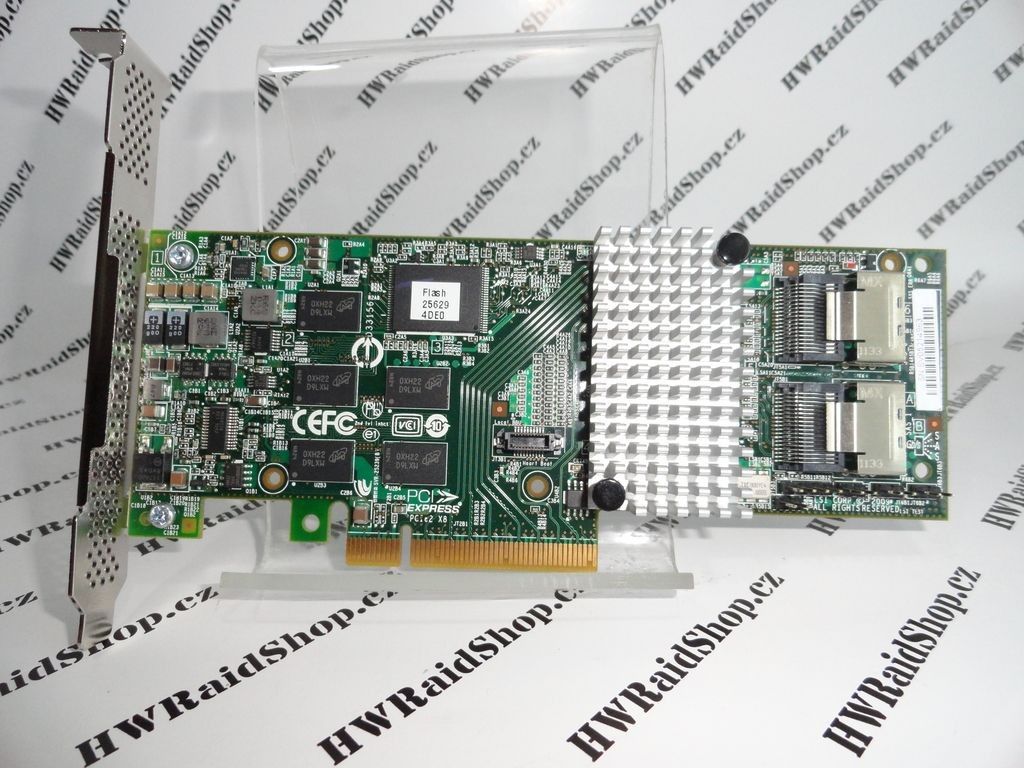

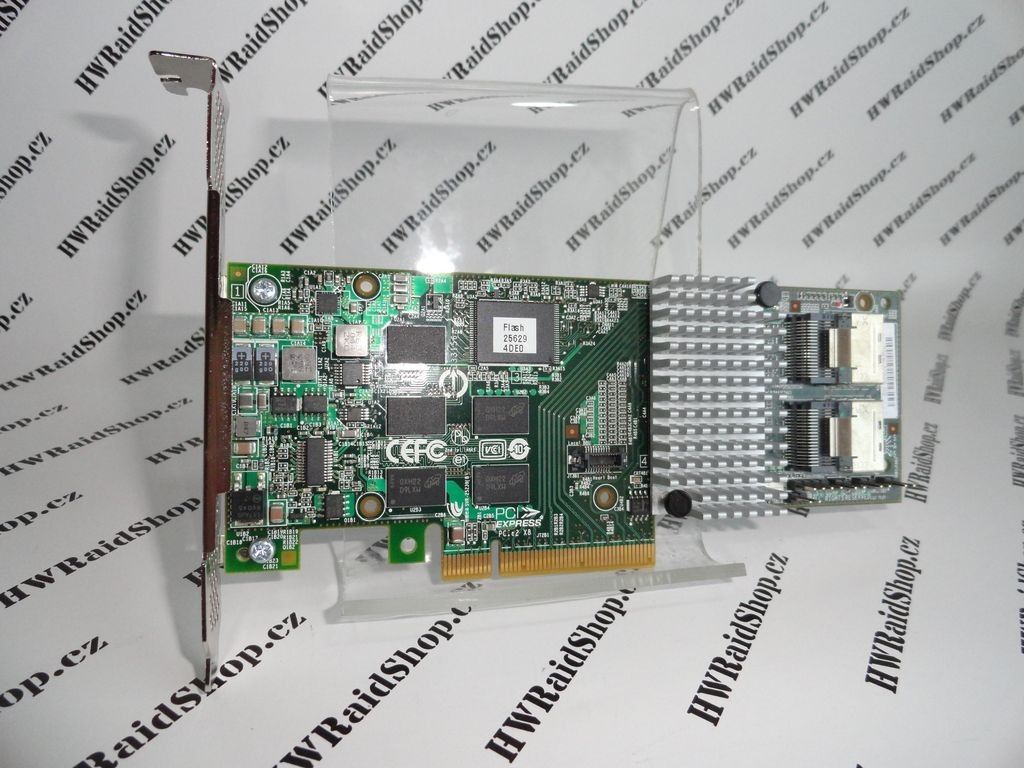

LSI 3Ware SAS 9750-8i SATA+SAS RAID Controller 8-Port 6G/s PCI Express (LSI00214) single
Zboží je bazarové - otestované 100% funkční
- Serial ATA/600
- PCI Express x8
- Plug-in Card
- RAID Supported
- 0, 1, 5, 6, 10, 50 RAID Level
| Výrobce: | AMCC/3WARE/LSI |
| Kód: | 9750-8i |
| Dostupnost: | Prodáno |
| Počet ks: | 0 ks |
5 990,- Kč5 490,- Kč
LSI 3Ware SAS 9750-8i SATA+SAS RAID Controller 8-Port 6G/s PCI Express (LSI00214) single
LSI 3ware SAS 9750-8i (LSI00214) single
Stránka výrobce: 3ware SAS 9750-8i
Product Brief:3ware SAS 9750-8i Product Brief
Na výběr low či full profile braket.
Address mid-range server storage applications needing multi-stream support.
For media and large file storage environments, the 3ware® SAS 9750-8i 6Gb/s SATA+SAS RAID controller card delivers RAID data protection and sustained throughput for concurrent sequential data streams. StreamFusion®+ technology balances multiple data streams to help mitigate bottlenecks.
- Connect up to 127 SATA or SAS drives with 8 internal 6Gb/s SAS ports
- Fits compact and rack servers and workstations with low-profile form factor
- Bandwidth to support critical applications with PCIe® 2.0 connectivity
- Read-ahead caching accelerates performance even in degraded volume states
- Pick the right balance of protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and single disk
| RAID-on-Chip Controller | LSISAS2108 RAID-on-Chip (ROC) |
| RAID Management Software | 3ware® Disk Manager 2 (3DM2™), Command Line Utility (CLI), 3ware BIOS Manager (3BM) |
| Cache Protection | LSIiBBU07, an optional intelligent battery backup module that connects directly to the controller |
| Physical Dimensions | Low profile (6.6" x 2.536") |
| Host Bus Type | x8 lane PCI Express® 2.0 |
| Cache Memory | 512MB 800MHz DDR II SDRAM |
| Internal Ports | 8 |
| Data Transfer Rates | Up to 6Gb/s per port |
| Devices Supported | Up to 127 SATA and/or SAS devices |
| Internal Connectors | 2 Mini-SAS SFF8087 |
| MTBF | 1,093,393 hours |
| Operating Temperature | Maximum ambient: 60°C (44.5°C w/iBBU LSIiBBU07) |
| Operating Voltage (V) | +3.3V |
| OS | Extensive support includes Microsoft® Windows Vista®, Windows 7®, Windows Server® 2003/2008, Red Hat Linux®, SuSE Linux®, Fedora Core Linux®, FreeBSD®, Mac® OS X, VMware® ESXTM and ESXTMi, OpenSolaris™, and more.*Visit the downloads page for the most comp |
| Raid Level: | 0, 1, 5, 6, 10, 50 and Single Disk |
| Cache: | 512MB |
| Celkový počet portu: | 8 |
| Počet internich portu: | 8 |
| Typ konektoru: | SFF-8087 interní |
| Připojeni k PC: | PCI-Express x8 |
