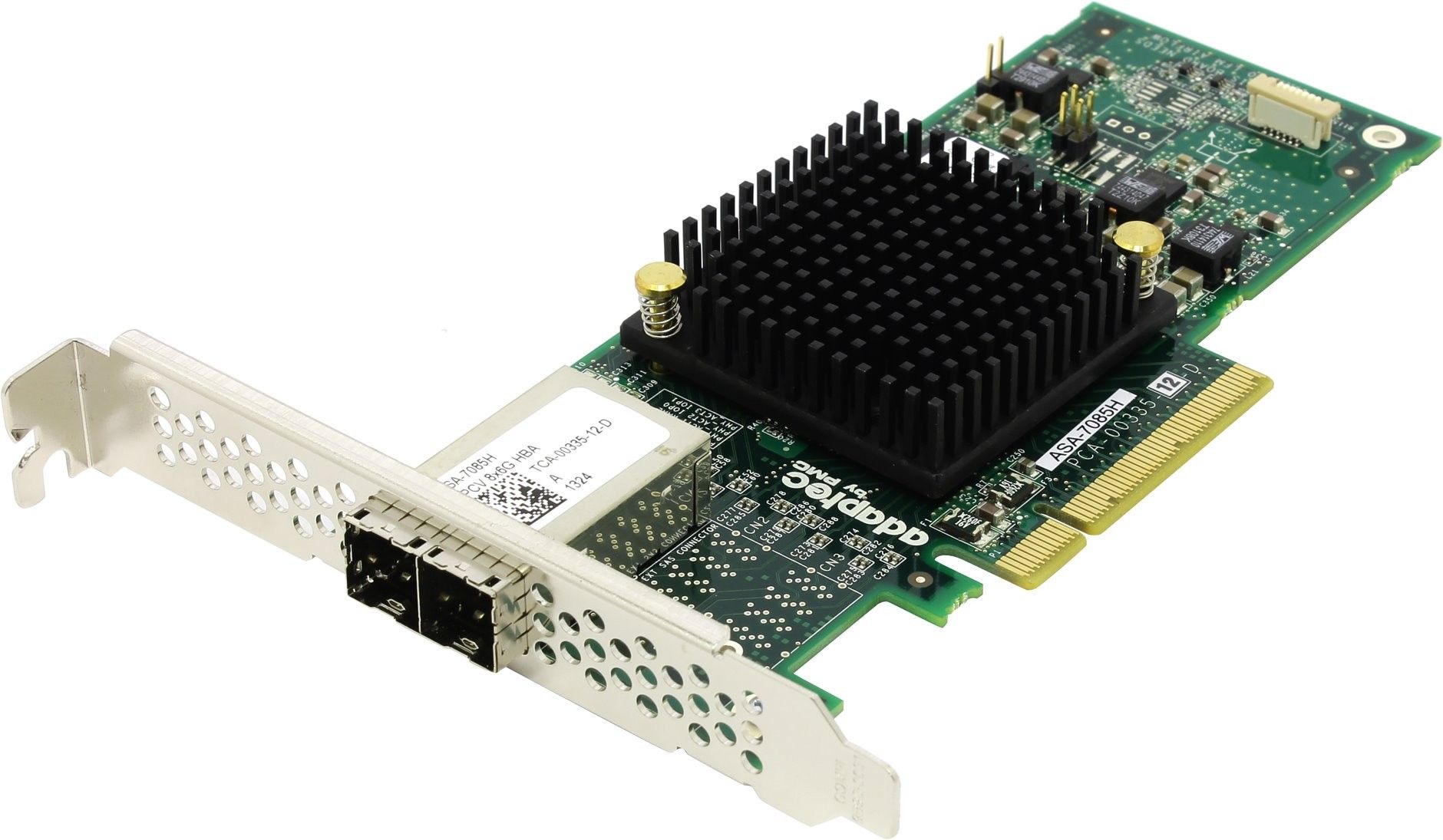

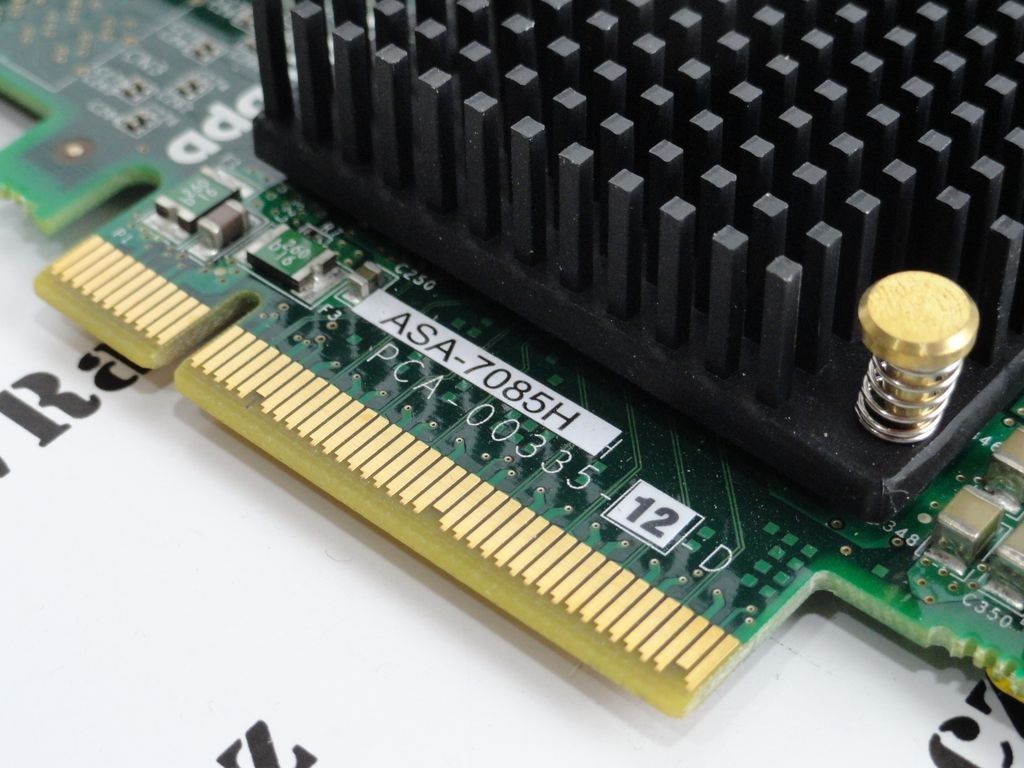

Adaptec 7085H Host Bus Adapter Single 2278400-R

8 externích portů 6Gb/s (2 ext. konektory mini SAS HD SFF-8643) PMC PM8018

ADAPTEC HBA 7085H Single SAS/SATA

8-port PCIe Gen3 HBAs offer high-performance I/O and low latency with broad device compatibility, scalability and flexibility

Benefits

Highest performing I/O solution supporting SAS and SATA HDDs, SSDs, removable media, SAS tape drives.

 Customer Needs

I/O connectivity offering highest bandwidth, lowest latency and highest I/O performance paired with broad compatibility, support for SAS expanders, and enclosure management; flexibility to install SAS and SATA drives.

 Key Features

• Sixteen (71605H, 70165H) and eight (7085H, 7805H) 6Gb/s ports
• Microsemi SAS protocol controller supports SAS and SATA HDDs, SSDs and SAS tape drives
• PCIe Gen 3 x8 host interface
• Low-profile MD2 form factor
• Support for SAS expanders
• Enclosure management support via LED header and SES2/SGPIO
• Up to 800,000 IOPS at 4 KB block size, UP to 1 million IOPS at 512 Byte block size
• Up to 6600 MB/s sequential throughput (64KB blocks)

 Management Utilities

Adaptec BIOS Configuration Utility (ACU)

• Legacy configuration utility
• Flashable BIOS support

Adaptec uEFI BIOS Configuration Utility

• HII based configuration utility
• Flashable BIOS support

 Operating System

• Microsoft Windows
• Red Hat Linux
• VMware ESX
• SUSE Linux
• Ubuntu Linux
• Debian Linux
• FreeBSD

For a detailed list see ASK Answer ID 17283.

Data Transfer Rate

6 Gbps per port

 Bus System Interface

8-lane PCIe Gen3

 Form Factor

MD2- Low Profile

 Connector Configuration

• 71605H: 4 internal mini SAS HD (SFF-8643)
• 70165H: 4 external mini SAS HD (SFF-8644)
• 7805H: 2 internal mini SAS HD (SFF-8643)
• 7085H: 2 external mini SAS HD (SFF-8644)

 Package Contents

Model 71605H

• Microsemi Adaptec 71605H adapter

Model 70165H

• Microsemi Adaptec 70165H adapter

Model 7805H

• Microsemi Adaptec 7805H adapter

Model 7085H

• Microsemi Adaptec 7085H adapter

Also included with each adapter:

• Additional low profile vented bracket
• Adaptec Installation DVD ( incl. documentation, drivers & software)

*Single does not include cables

 Physical Size

2.535"H x 6.6"L (64mm x 167mm)

 Operating Temperature

0°C to 55°C (with 200 LFM airflow)
Note: This card contains a powerful processor which requires adequate airflow to operate reliably. Please install this card only into server or PC chassis with recommended airflow (200 LFM).

* Ambient temperature measured 1" away from the processor.

 Operating Humidity

Relative humidity: 10% to 90%, non-condensing

 Operating Voltage

0.17A@ 3.3V

1.25A@ 12.0V

 Regulatory Certification

CE, FCC, C-tick, VCCI, CNS, KCC, UL, BSMI

 Mean Time Before Failure (MTBF)

1,000,000 hours at 40°C
