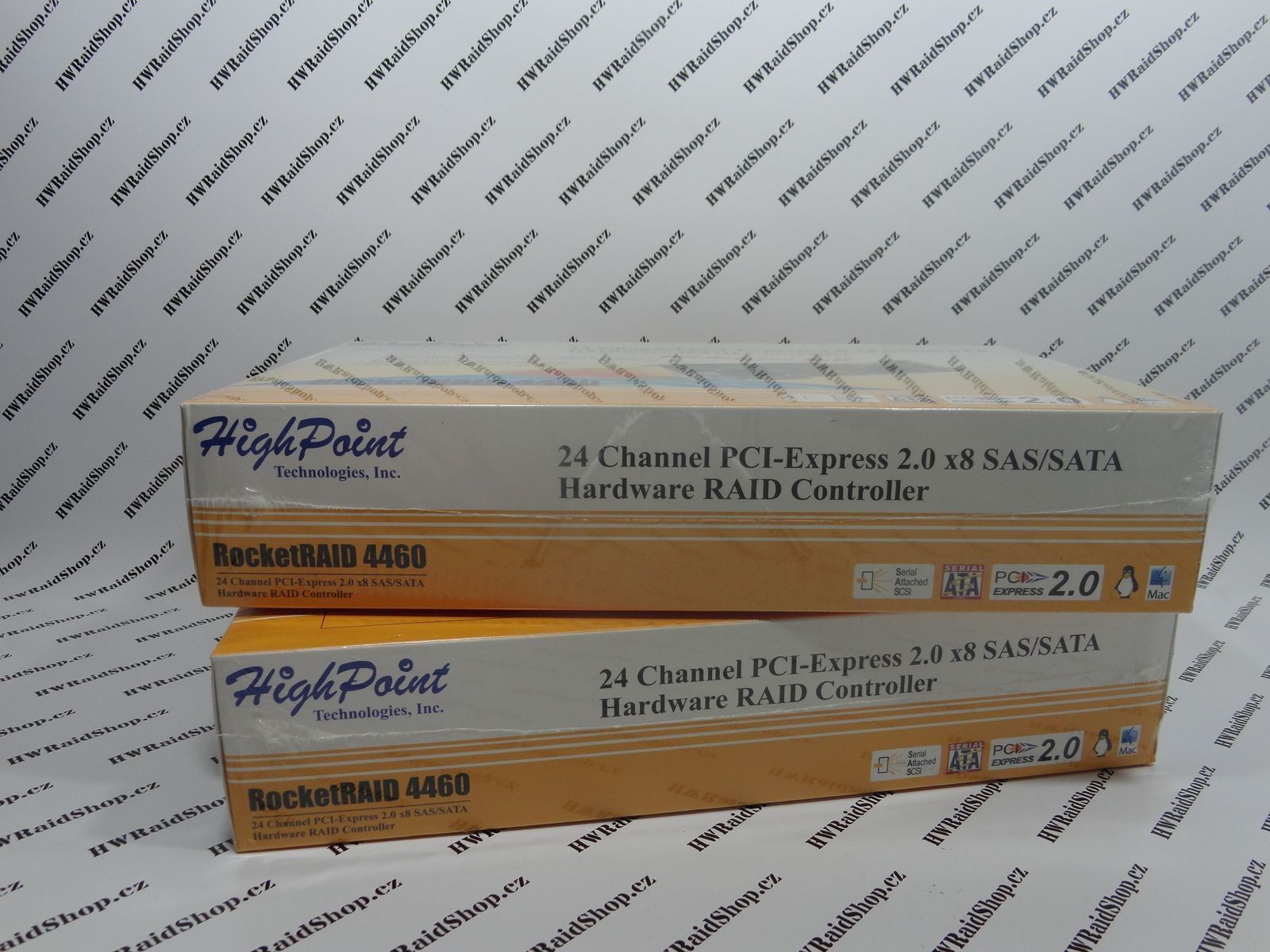

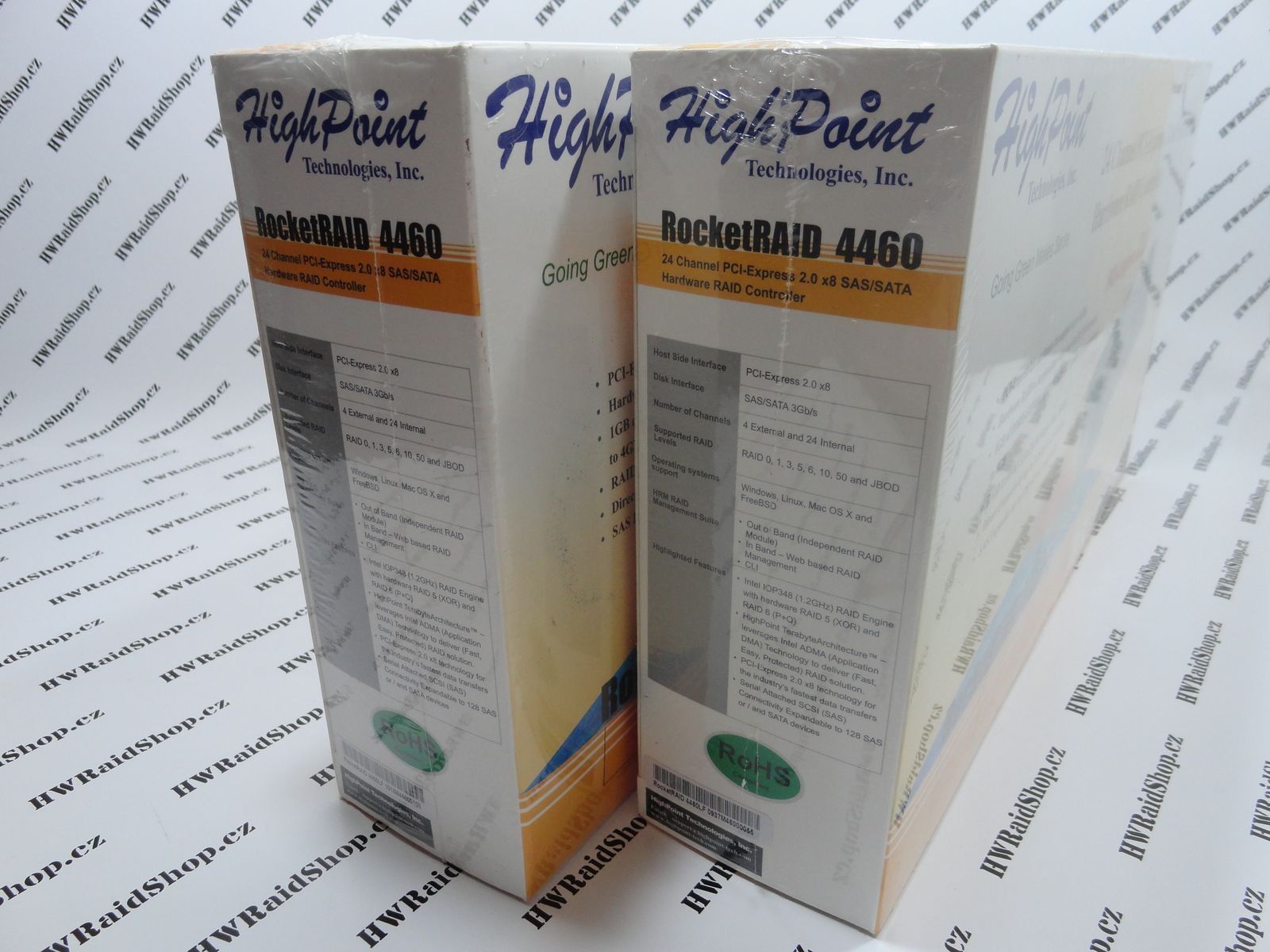

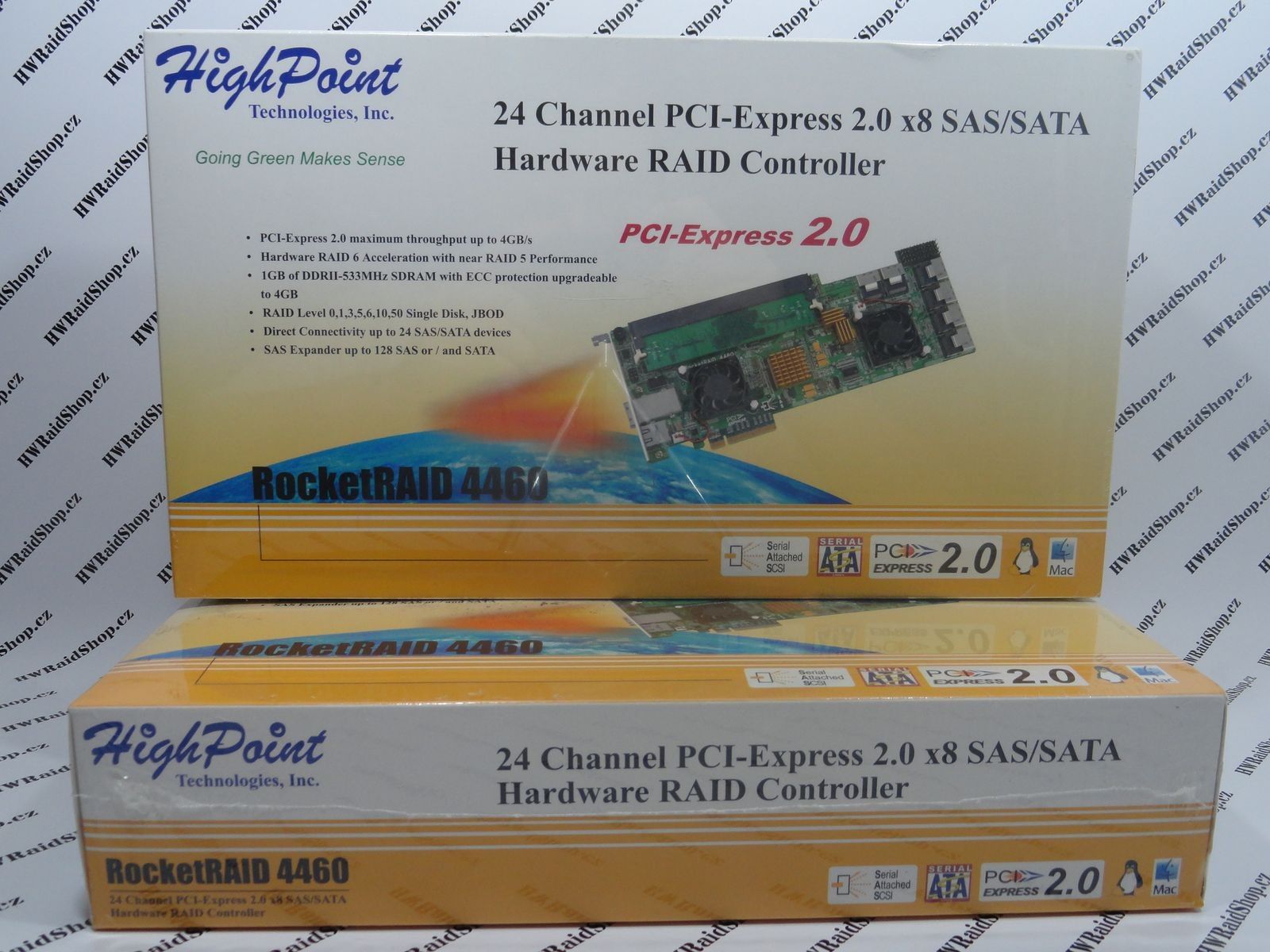

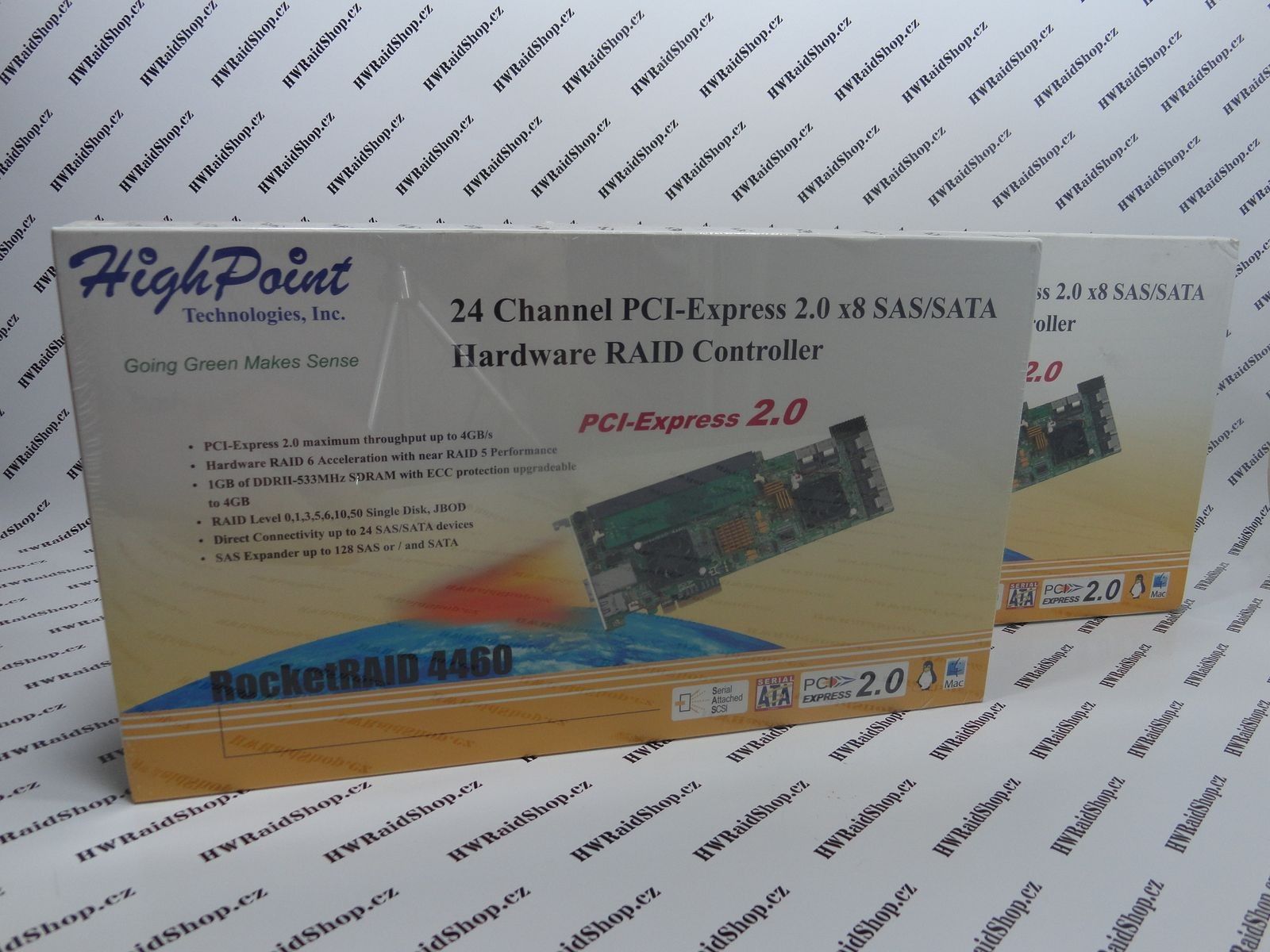

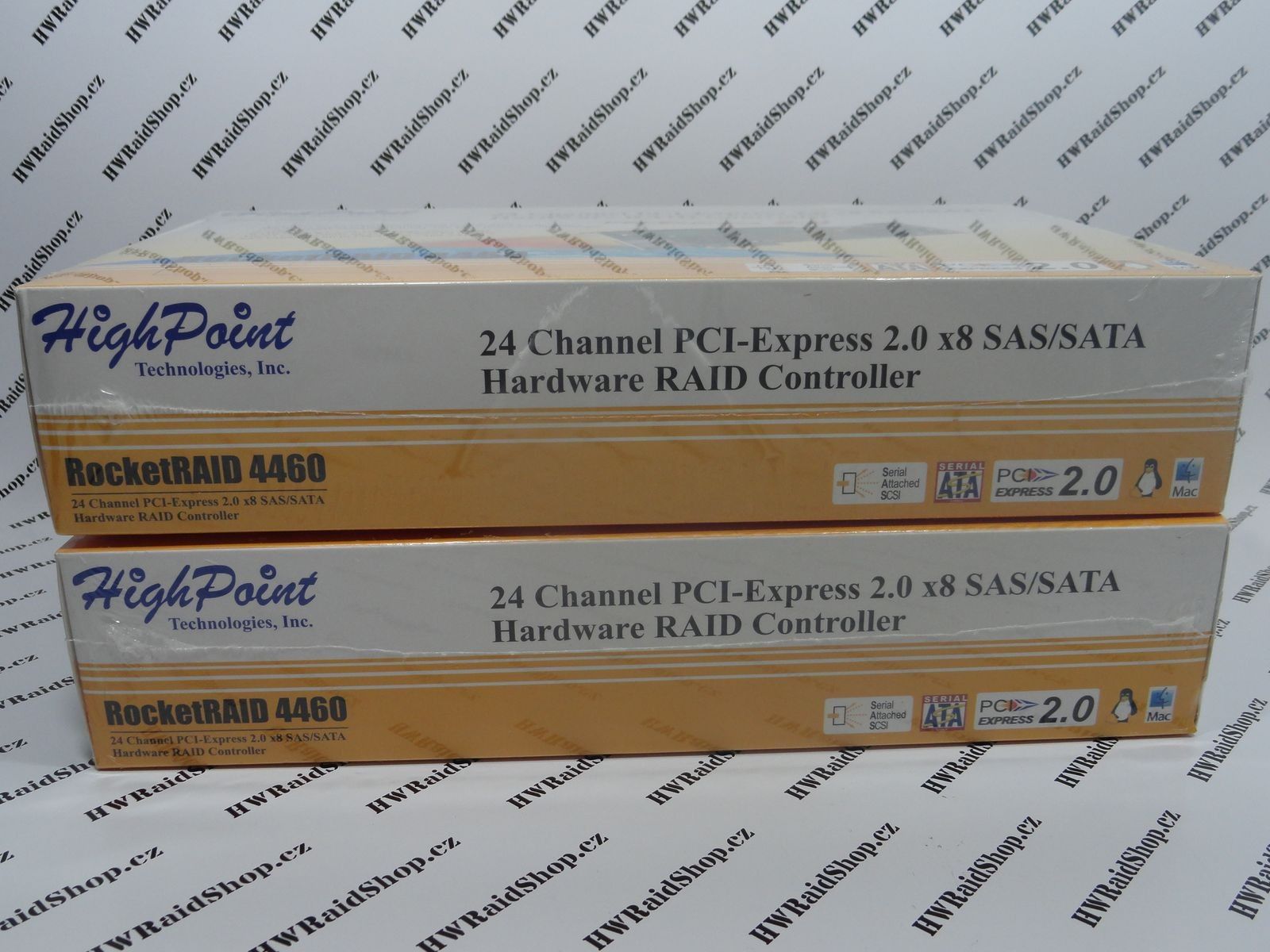

HighPoint RocketRAID 4460 KIT

Úvod Řadiče SAS/SATA SAS/SATA II (3Gb/s) HighPoint RocketRAID 4460 KIT

HighPoint RocketRAID 4460 KIT

Nové kompletní kit!



  • Intel IOP348 1.2GHz- RAID I/O Processor
  • 1GB SDRAM DDR-II 533MHZ Memory
  • PCI-Express 2.0 x8
  • 6 Internal Mini-SAS ports
  • RAID level 0,1,3,5,6,10,50 and JBOD
  • Full Height




Výrobce: HighPoint
Kód: 4460_k

Dostupnost: skladem
Počet ks: 1 ks
25 000,- Kč10 990,- Kč

Popis HighPoint RocketRAID 4460 KIT

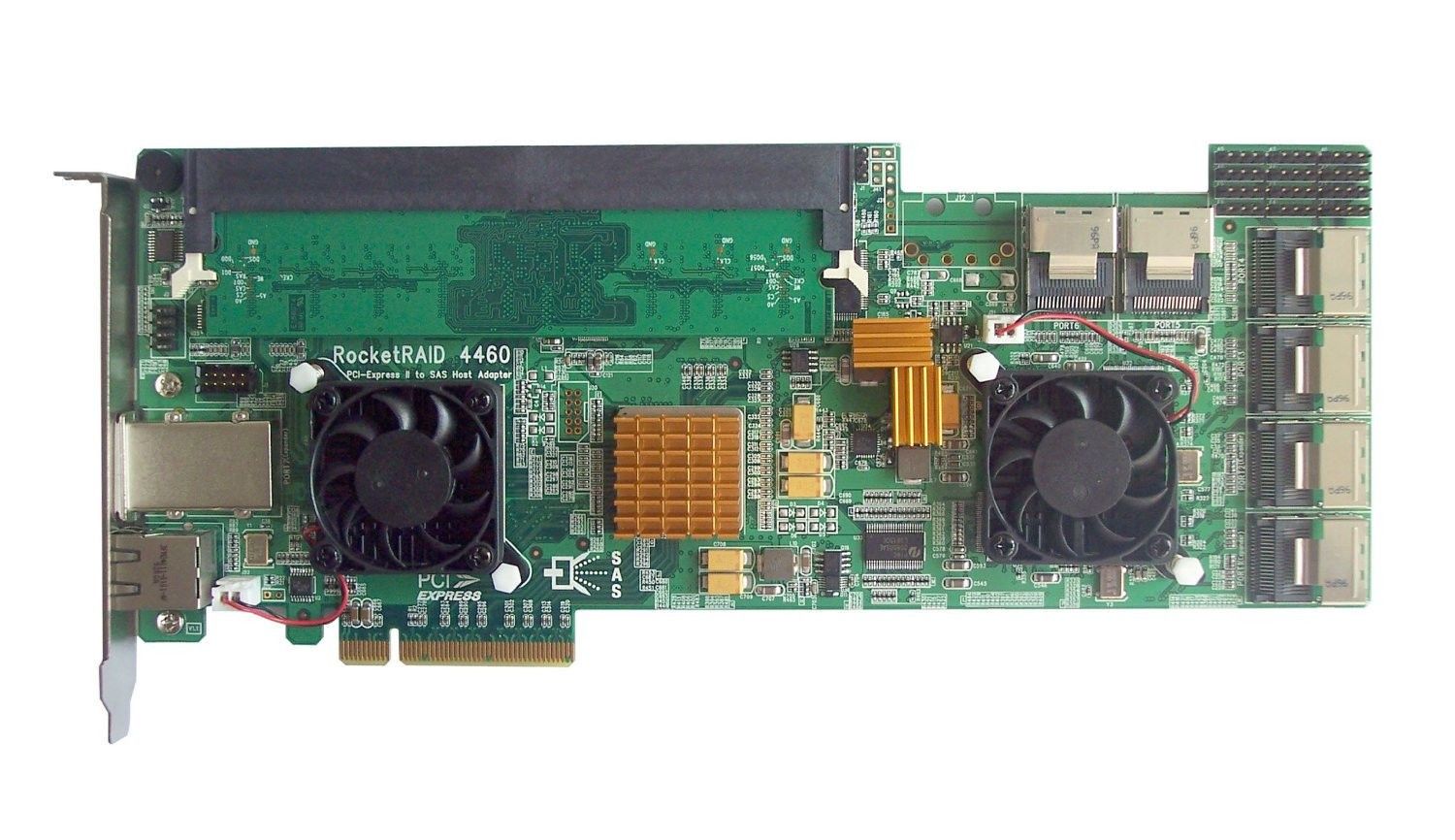

Highpoint RocketRAID 4460


Stránky výrobce



RocketRAID 4460 Datasheet.pdf - Highpoint



Obdoba raid řadiče Areca ARC-1680IX-24



The RocketRAID 4460 from HighPoint offers a new level of flexibility and performance to servers and workstations by supporting either 15,000 rpm SAS hard drives for performance or lower cost SATA hard drives for capacity. Supporting RAID 0, 1, 3, 5, 6, 10, 50 and JBOD, it can not only backup data but can also extend the storage capacity of a system significantly.



It supports the industry’s fastest bus speeds at PCI-Express X8 and offers complete connectivity with 1 external and 1 internal mini-SAS connectors. Using SAS expanders, it can connect up to 128 SAS devices.



Based on the Intel IOP348 I/O processor and HighPoint's TerabyteArchitecture, this high-performance PCIe-to-SAS RAID host adapter delivers enterprise-class SAS RAID 5 and RAID 6 performance for mission critical applications that require high sustained performance, availability and native expansion.

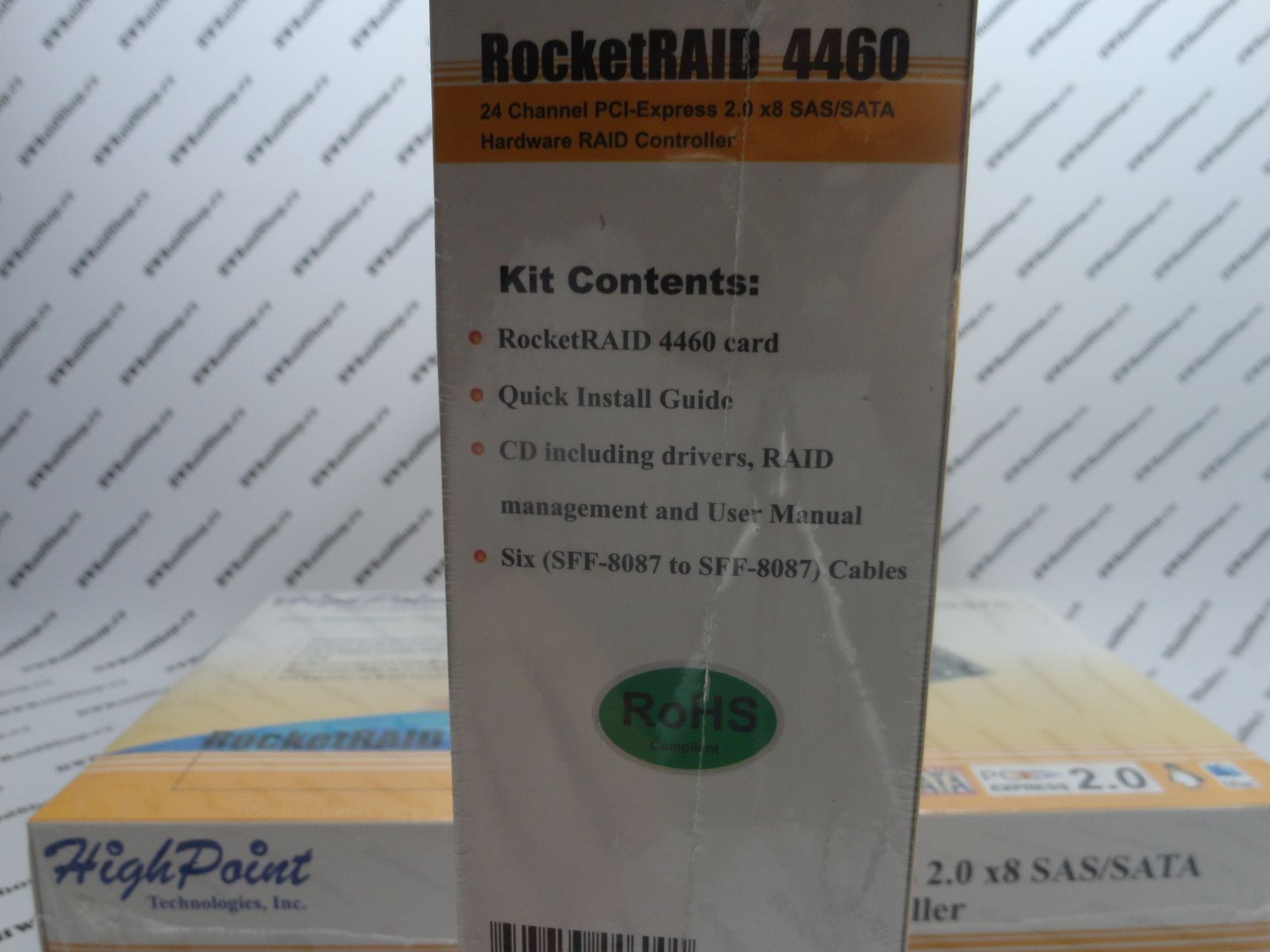

Packaging Contents
• RocketRAID 4460 controller
• Quick Installation Guide
• CD with software drivers
• (6) SFF-8087 to SFF-8087 cables




Model
Brand
HighPoint
Model
RocketRAID 4460

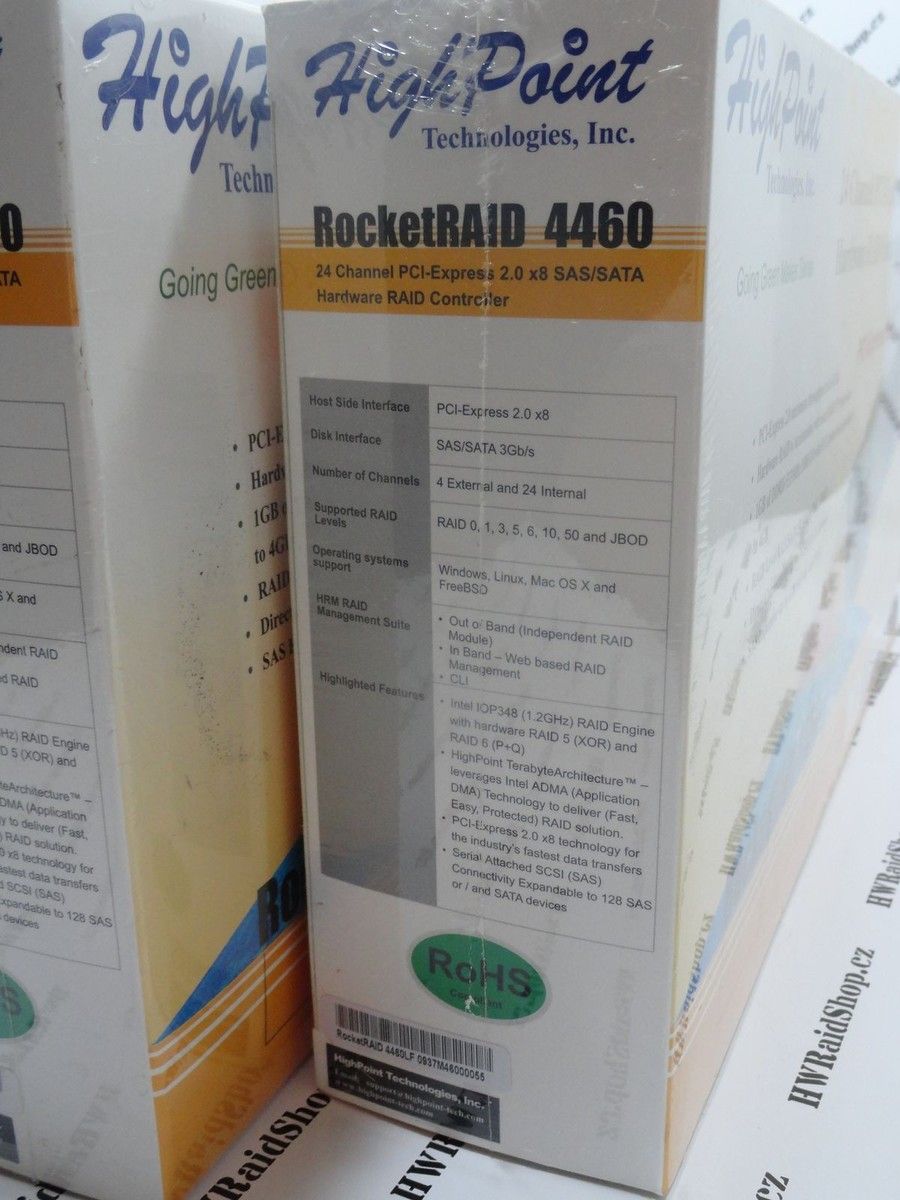

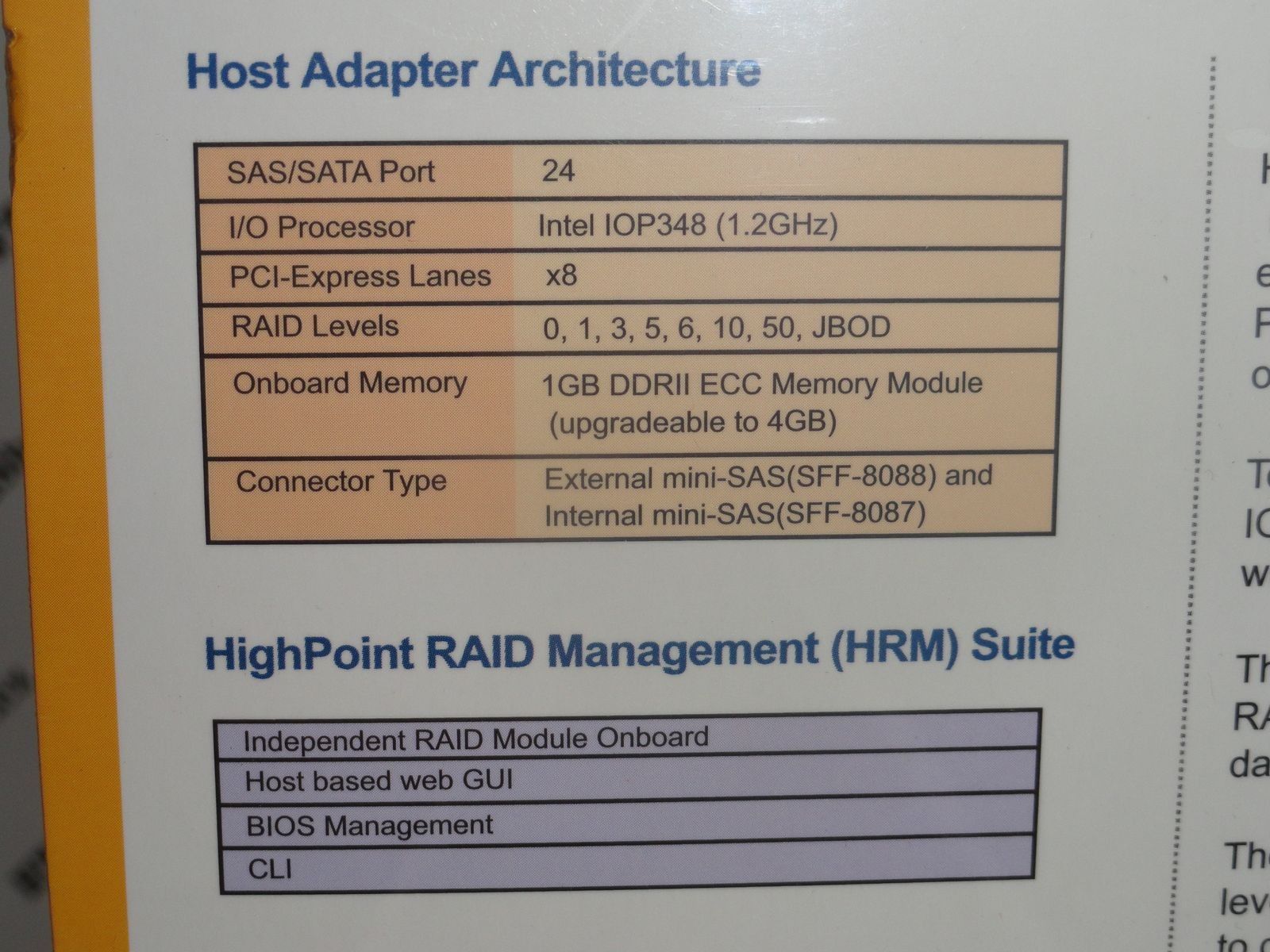

Specifications
Type
SATA / SAS
External Connectors
1 x SFF-8088
Internal Connectors
6 x SFF-8087 mini-SAS
Interface
PCI-Express 2.0 x8
Cache Memory
1GB SDRAM DDR-II 533MHZ
RAID
RAID 0/1/3/5/6/10/50/ JBOD
Operating Systems Supported
Microsoft Windows, Red Hat Enterprise Linux, Open SuSE, Fedora Core, Debian, Ubuntu, FreeBSD
Dimensions
10.44" x 4.38"

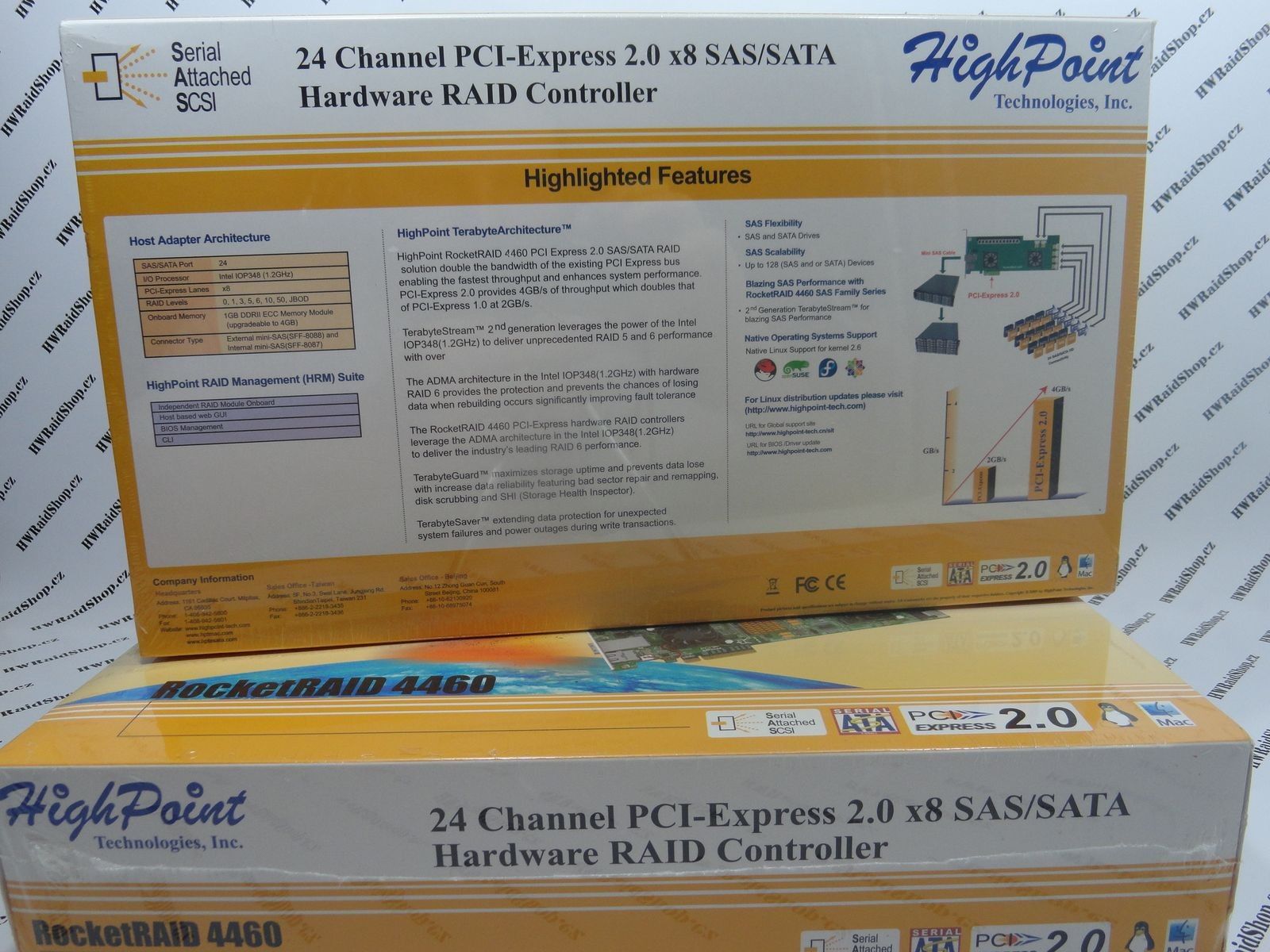

Features
Features
Intel Xscale IOP348 1.2GHz I/O Processor
Online capacity expansion (OCE) and Online RAID level migration (ORLM)
RAID Array Roaming
Unplug/Remove RAID array
Hot key (ctrl-h) boot-up RAID manager via BIOS
Firmware update while running the Operating System
Verify RAID Array for Bad Sectors and Parity Check
Task Scheduler
Automatic RAID rebuild
Automatic drive (insert / removal) detection
Hot Spare Disk
Staggered Drive Spinup
Rebuild Priority (Low - Highest)
Spin Down Idle Mode
Hot Swap and Hot plug
Bad sector repair and remapping to reduce dropped drives
Multiple RAID array
Multiple Logical Drive
64bit LBA support greater than 2TB per volume



Raid Level: 0, 1, 3, 5, 6, 10, 50, JBOD
Cache: 1024MB
Celkový počet portu: 28
Počet internich portu: 24
Počet externich portu: 4
Typ konektoru: SFF-8087 interní + SFF-8088 externí
Připojeni k PC: PCI-Express x8
Vzdálená administrace: ano
