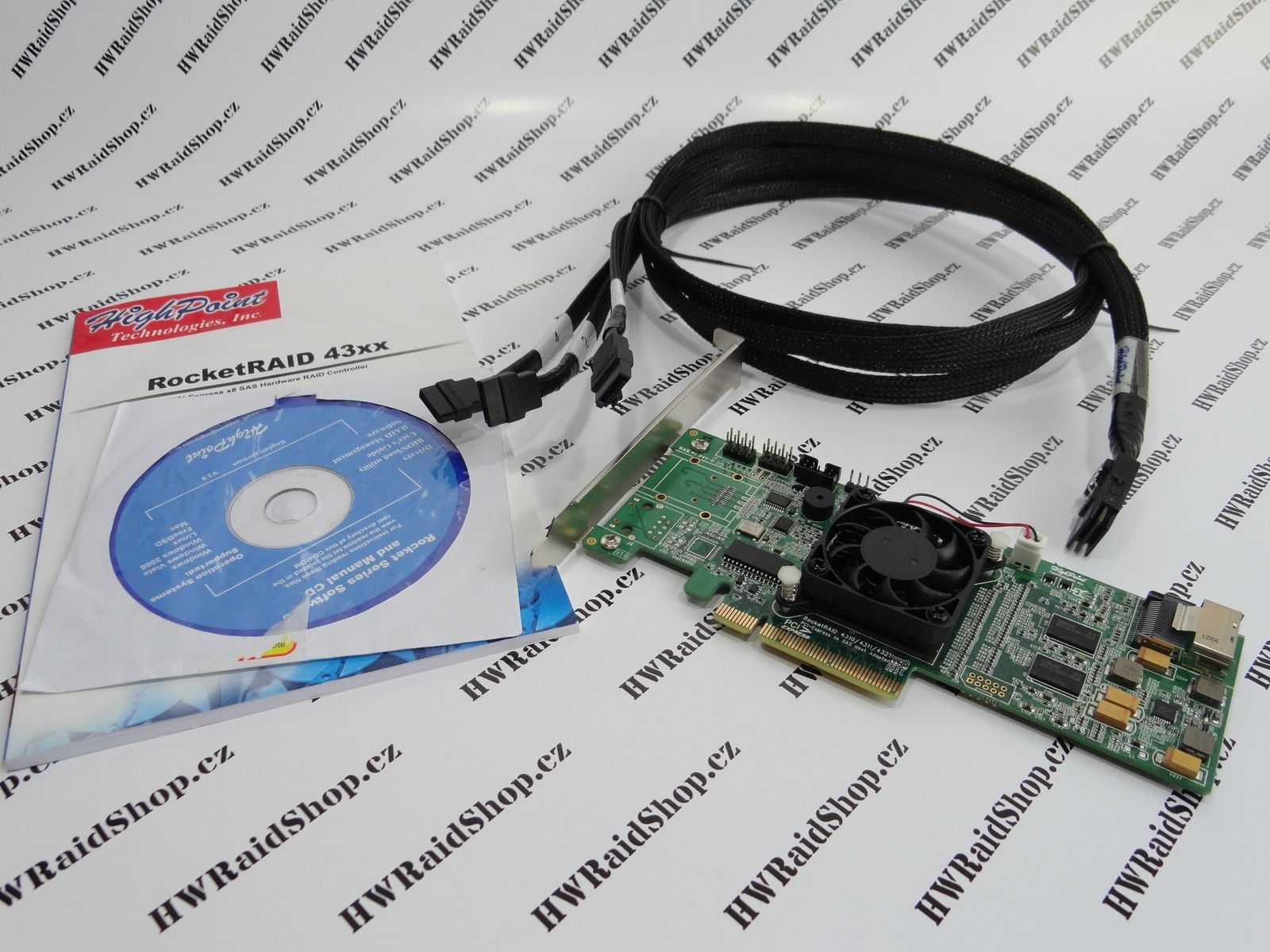

HighPoint RocketRAID 4310 KIT

Úvod Řadiče SAS/SATA SAS/SATA II (3Gb/s) HighPoint RocketRAID 4310 KIT

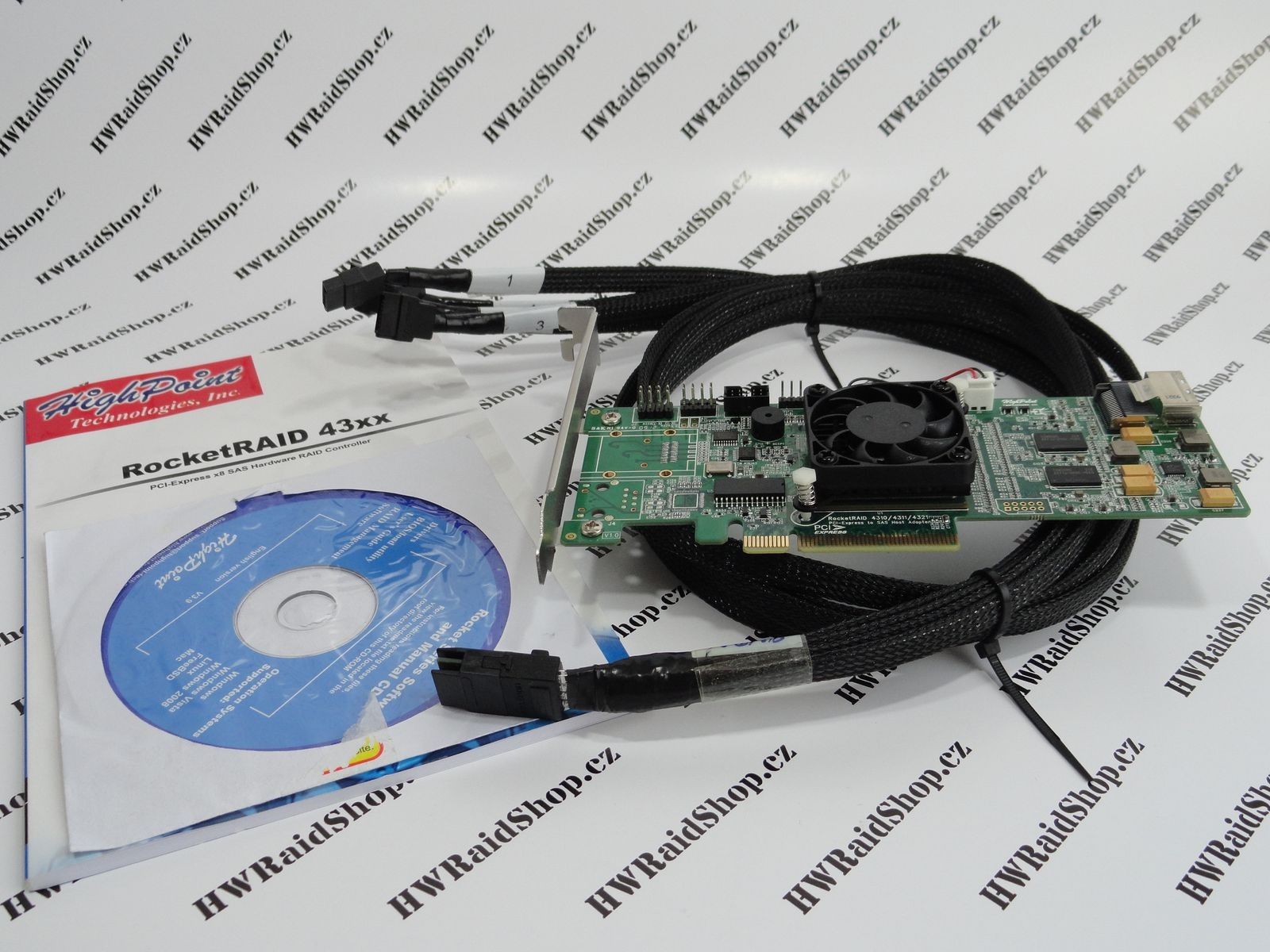

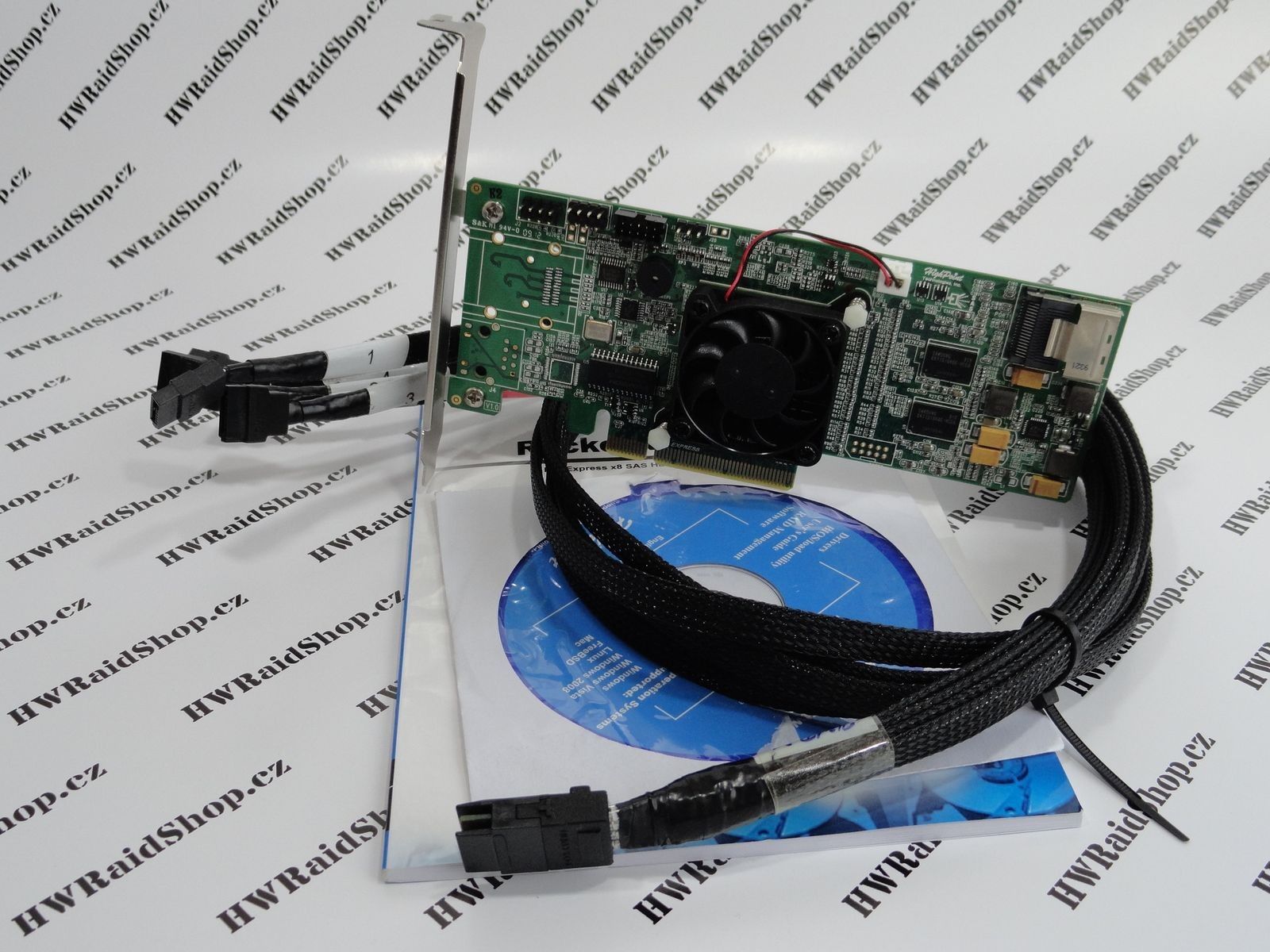

HighPoint RocketRAID 4310 KIT

Zboží je bazarové - otestované 100% funkční



  • RAID 0/1/3/5/6/10/ JBOD
  • 1 x SFF-8087 mini-SAS Internal Connectors
Výrobce: HighPoint
Kód: 4310_K

Dostupnost: skladem
Počet ks: 1 ks
5 590,- Kč1 990,- Kč

Popis HighPoint RocketRAID 4310 KIT

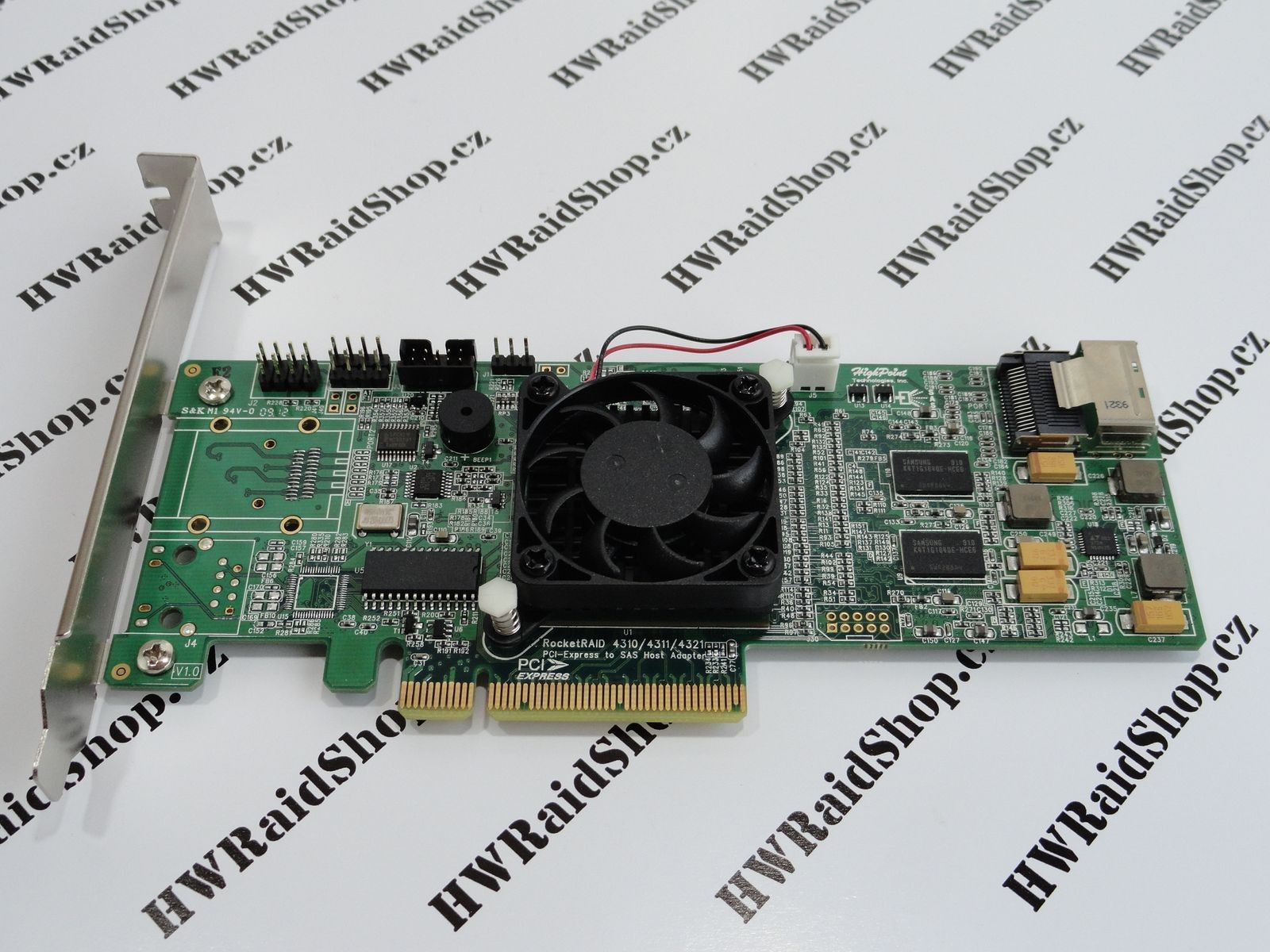

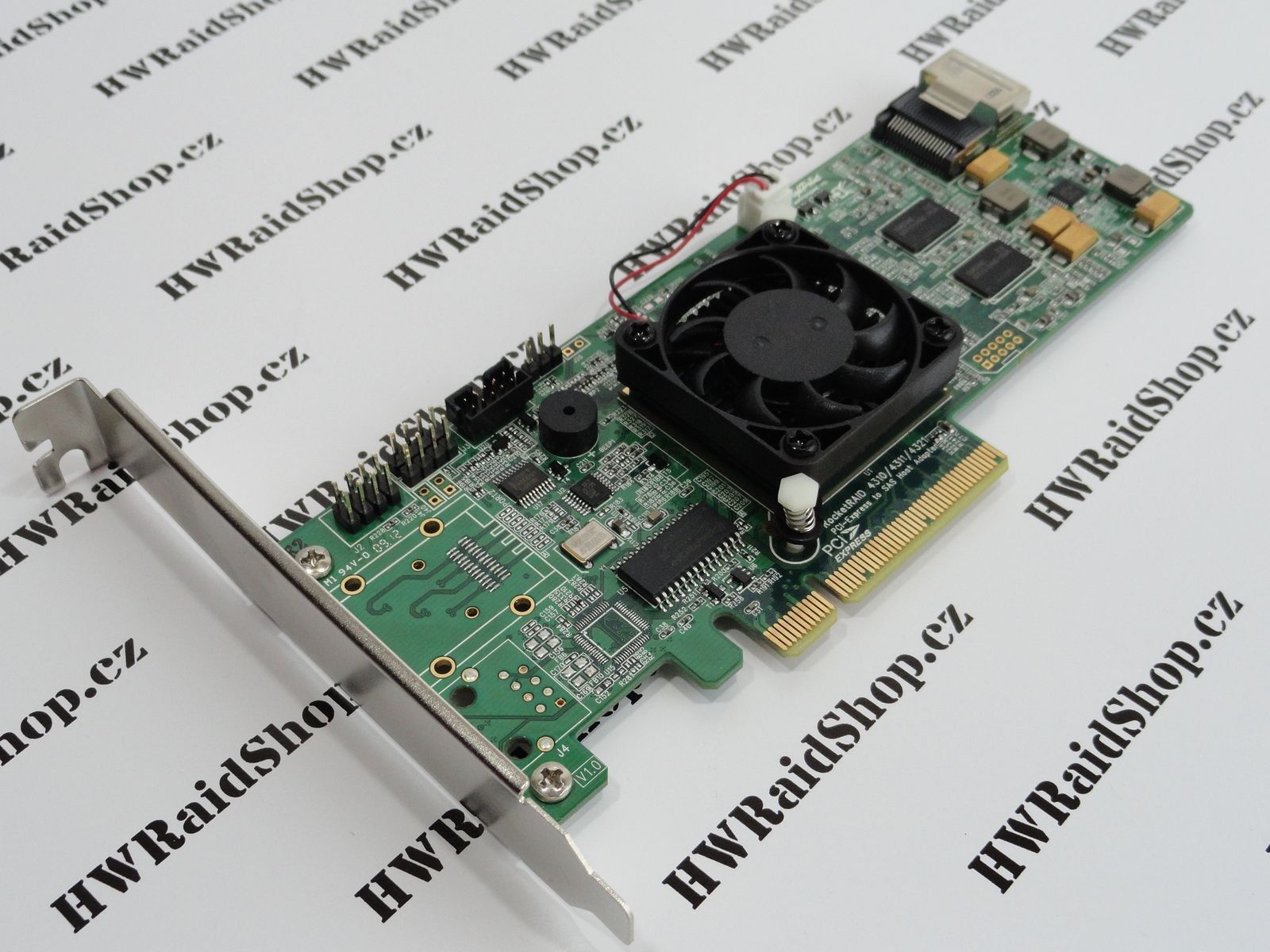

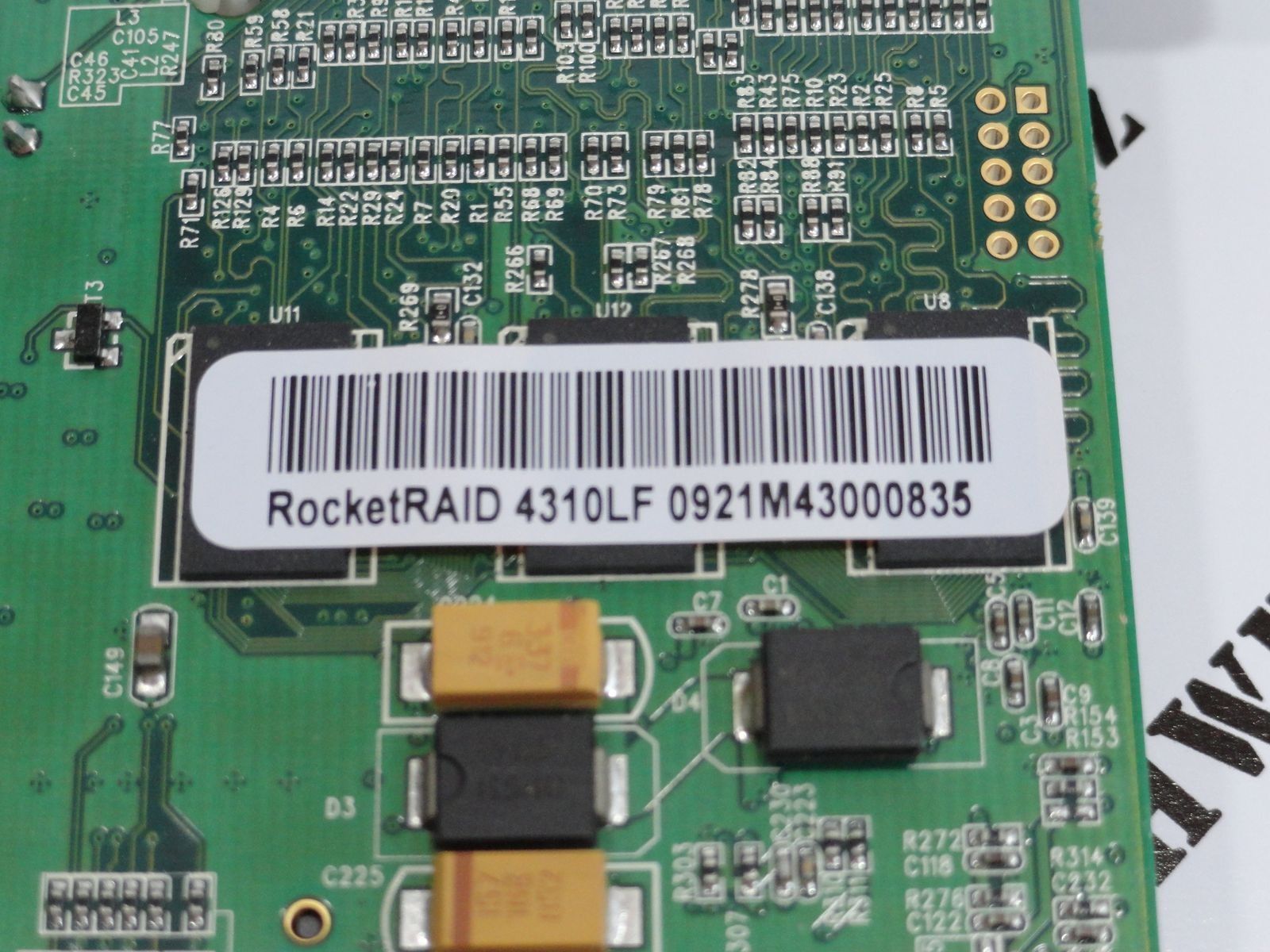

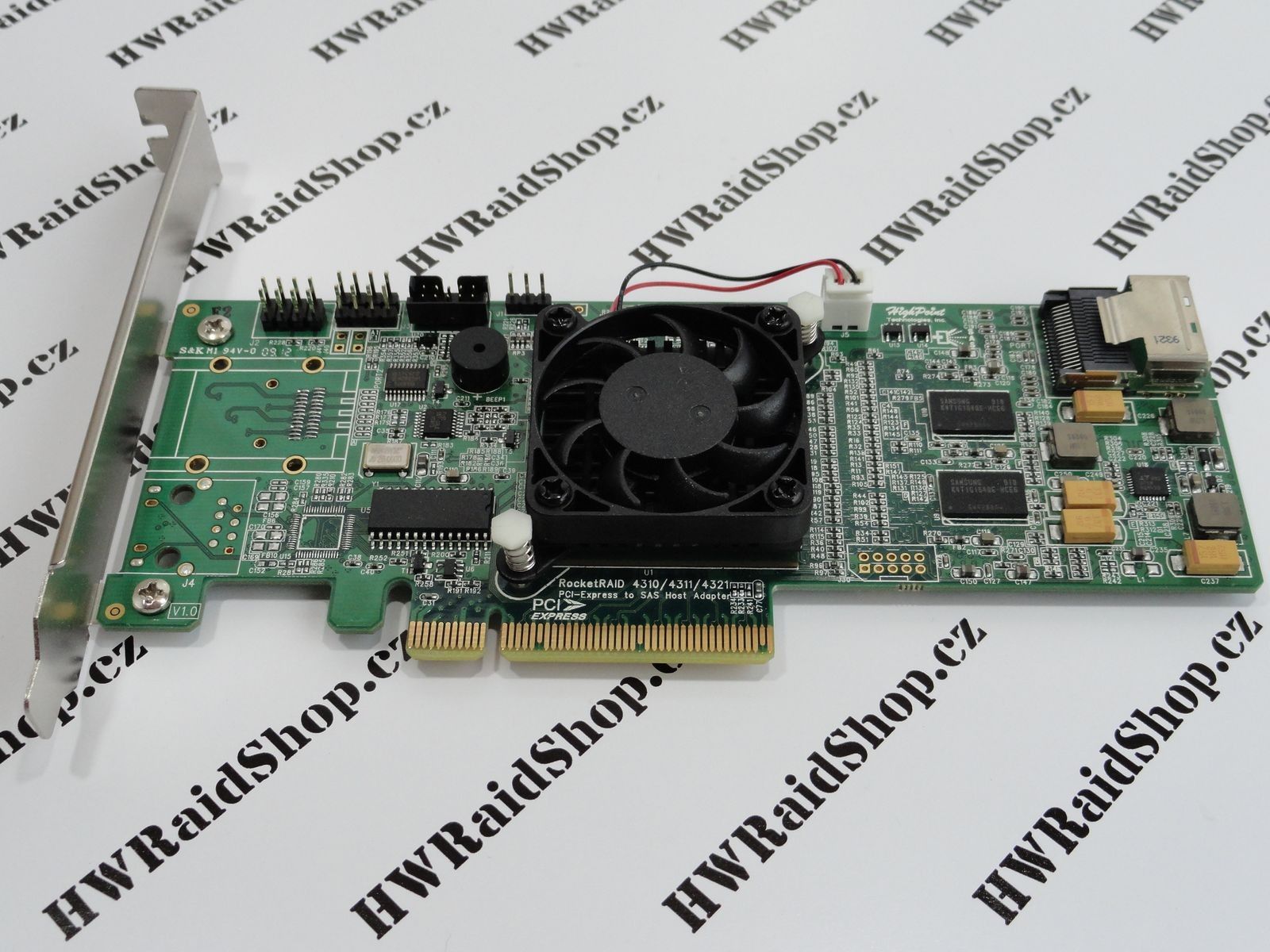

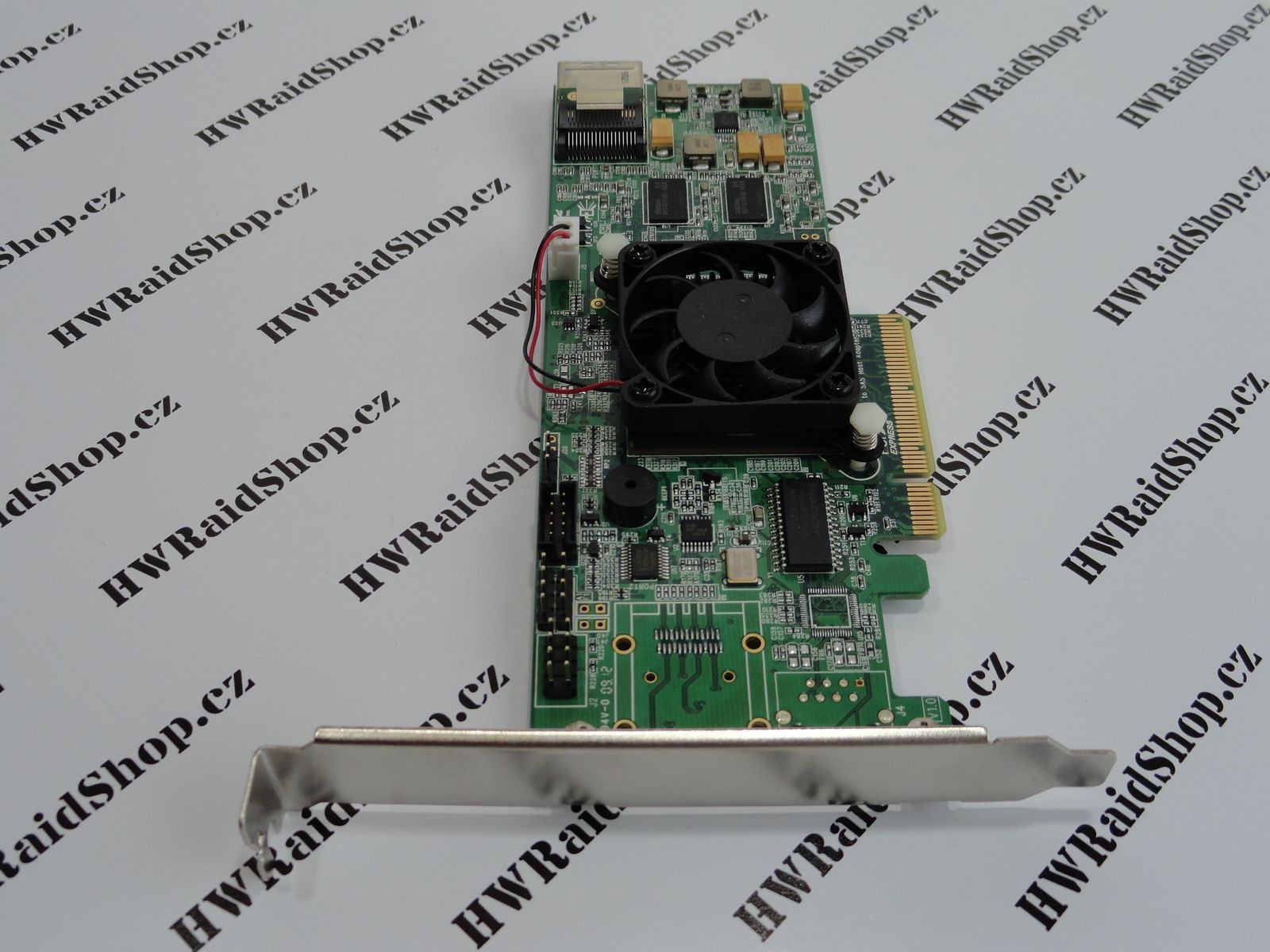

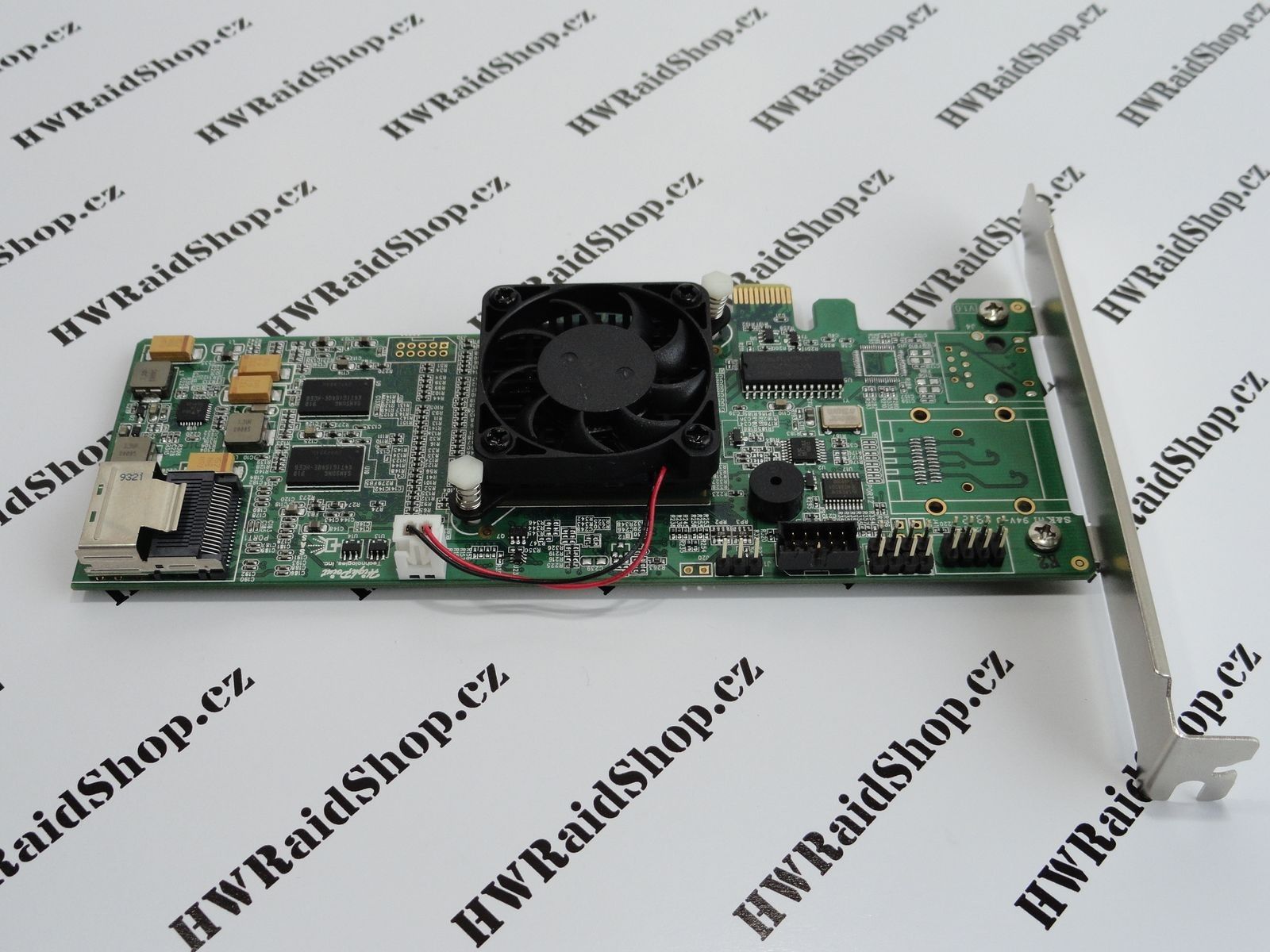

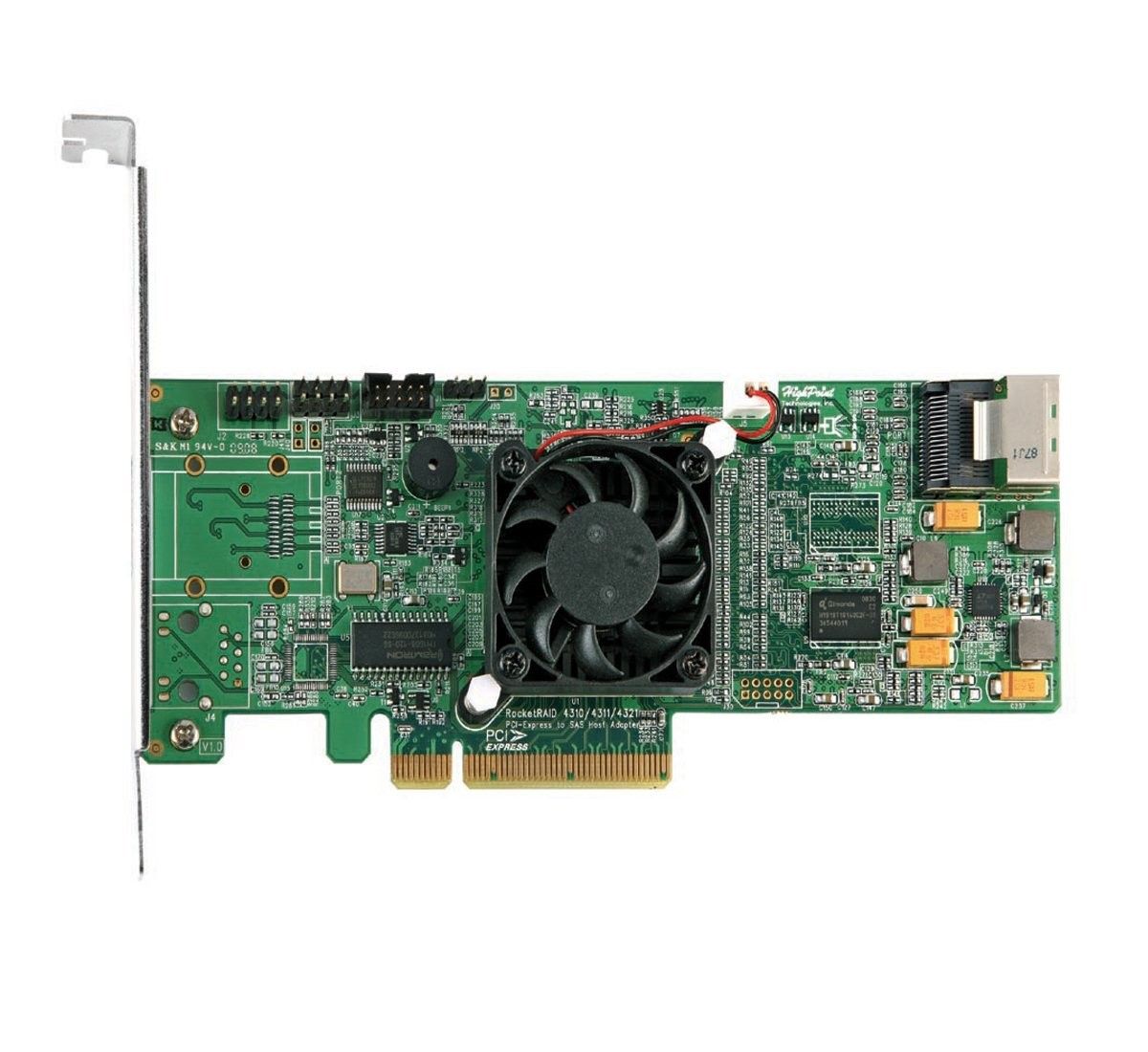

HighPoint RocketRAID 4310

Stránky výrobce





The RocketRAID 4300 series controllers feature the Intel IOP348 at 1.2GHz I/O Processor. The Intel IOP348 is the fastest I/O processor in Intel’s product line. The RocketRAID 4300 series has unparalleled design flexibility to support both high performing SAS and lower cost SATA hard drive configurations. By using the Intel IOP348, the RocketRAID 4300 series offers unlimited storage design flexibility from scalability, cost and performance perspectives. The RocketRAID 4300 series supports both direct-attach and SAS expander connectivity modes.

The RocketRAID 4300 family series are powered by Intel IOP348 and have a maximum of 512MB of ECC DDR-II onboard cache. The RocketRAID 4300’s family series support the fastest bus speeds at PCI-Express x8 and offer complete port connectivity with 8 internal, 8 external and hybrid (4 internal and 4 external) configurations.



newegg Serial Attached SCSI Interface With an internal mini-SAS port, the HighPoint RocketRAID 4310 supports both SAS and SATA devices for enhanced flexibility and speed.

newegg RAID Support The HighPoint RocketRAID 4310 supports multi-level RAID configuration including RAID 0, 1, 3, 5, 6, 10 and JBOD for better performance, enhanced data security and flexible capacity upgrades.

newegg On-board I/O Processor The HighPoint RocketRAID 4310 features an integrated 800MHz Intel IOP348 processor for fast hardware RAID parity calculations.

newegg 256MB Cache Memory with ECC Protection 256MB of DDR2 533 SDRAM with ECC protection is integrated into the HighPoint RocketRAID 4310 for maximum data integrity.

newegg PCI Express x8 Interface Compatible with PCI Express x16 slot, the PCI Express x8 interface provides sufficient throughput and full-duplex operation for enhanced performance.




RocketRAID 4310

Model
Brand
HighPoint
Model
RocketRAID 4310
Form Factor
Low Profile Ready
Specifications
Type
SATA / SAS
Internal Connectors
1 x SFF-8087 mini-SAS
Interface
PCI-Express x8
Cache Memory
256MB DDR2 533
RAID
RAID 0/1/3/5/6/10/ JBOD
Operating Systems Supported
Microsoft Windows 2008/2003/XP/ 2000/x64 Edition/Vista 32 and 64 bit
Red Hat Enterprise Linux, Open SuSE, Fedora Core, Debian
FreeBSD
Mac OS X
Linux Open Source Drivers
Native Support in Linux kernel 2.6
VMware ESX/ ESXi 4.0
Features
Features
1 internal mini-SAS/SATA Device connector
Intel IOP 348( 800MHz)
NCQ (Native Command Queuing)
NVRAM
Battery Backup Unit Ready (BBU-03)
Low Profile


Uložit

Uložit

Raid Level: 0,1,3,5,6,10,JBOD
Cache: 256MB
Celkový počet portu: 4
Počet internich portu: 4
Typ konektoru: SFF-8087 interní
Připojeni k PC: PCI-Express x8
