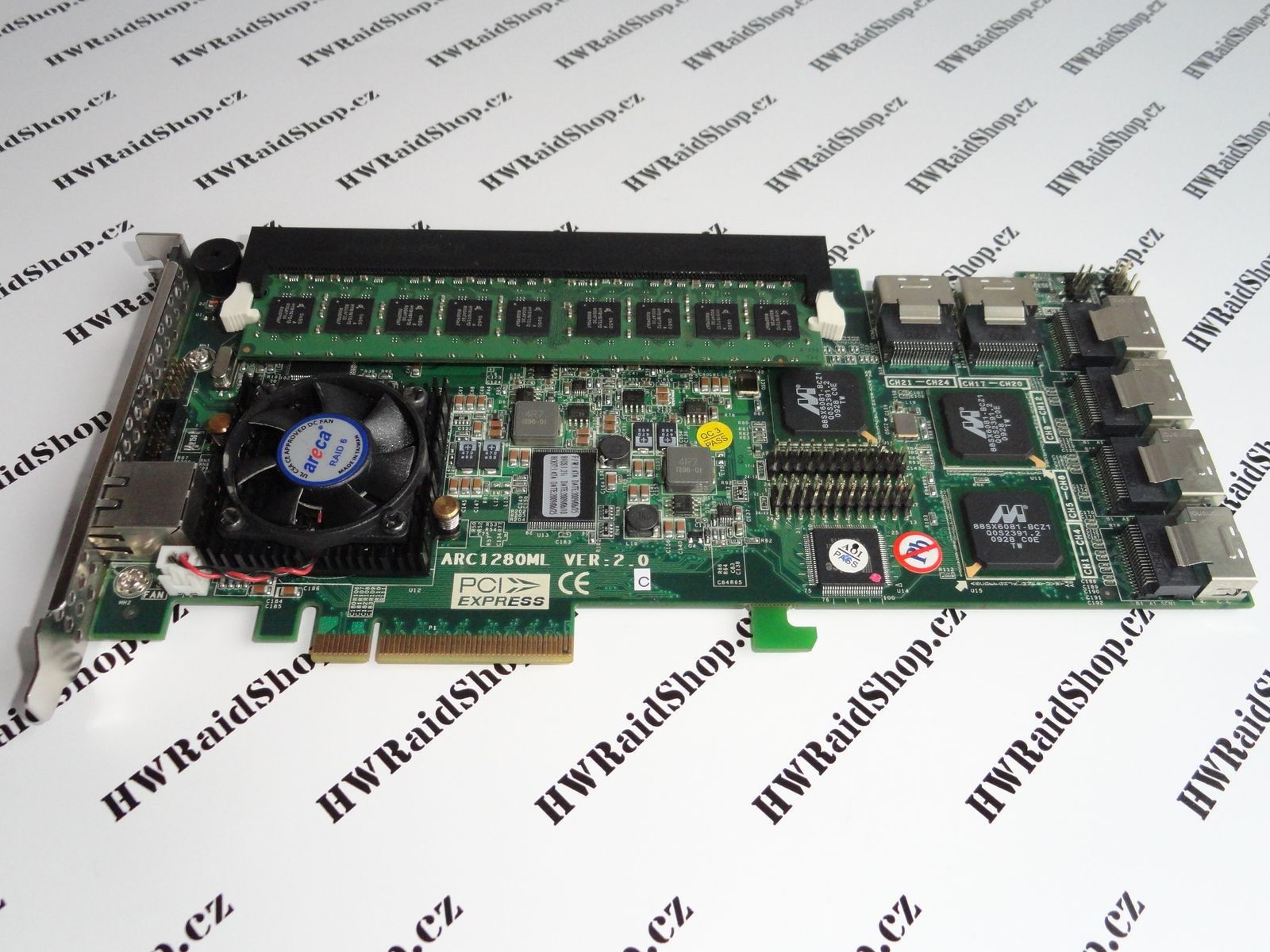

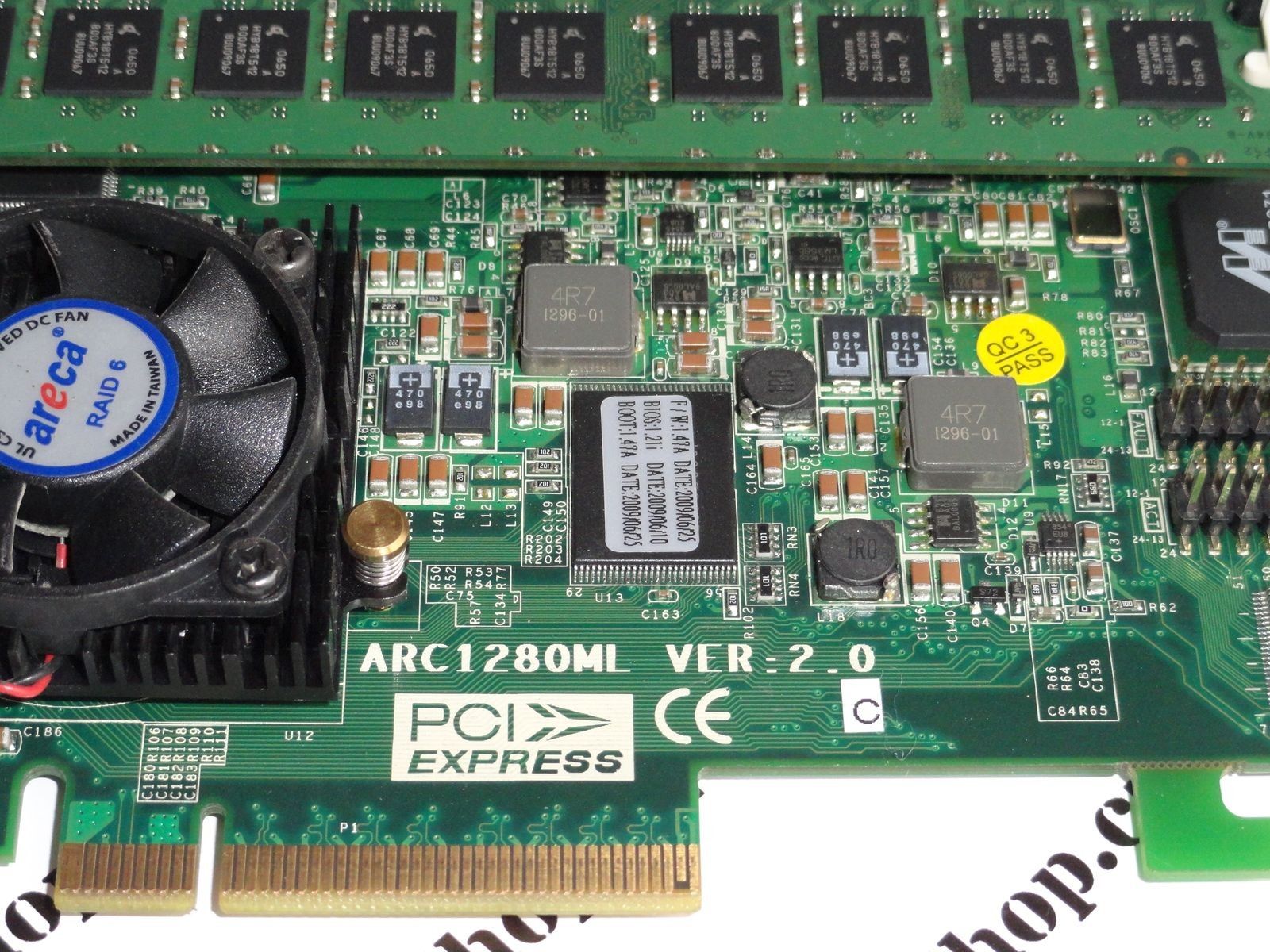

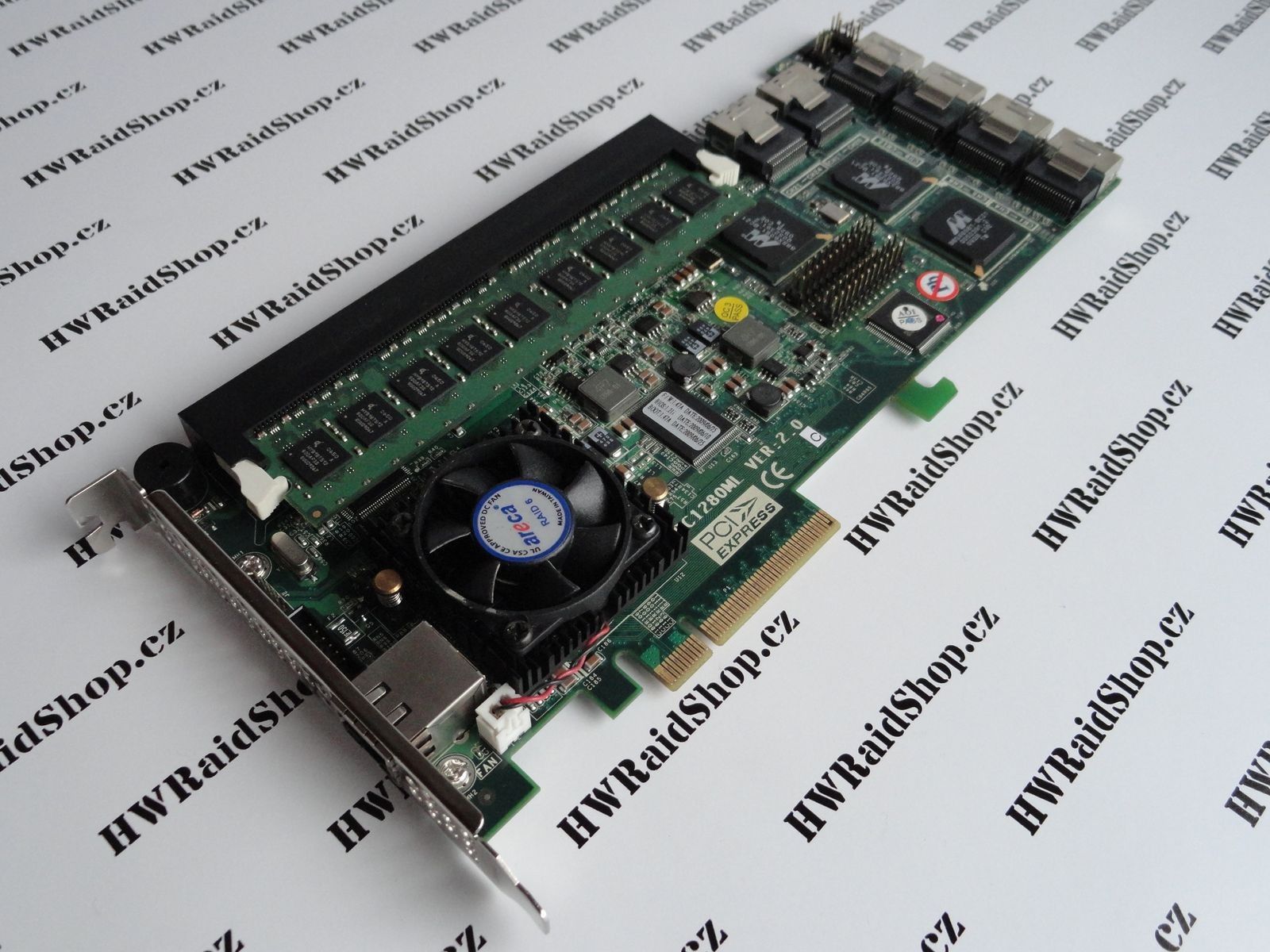

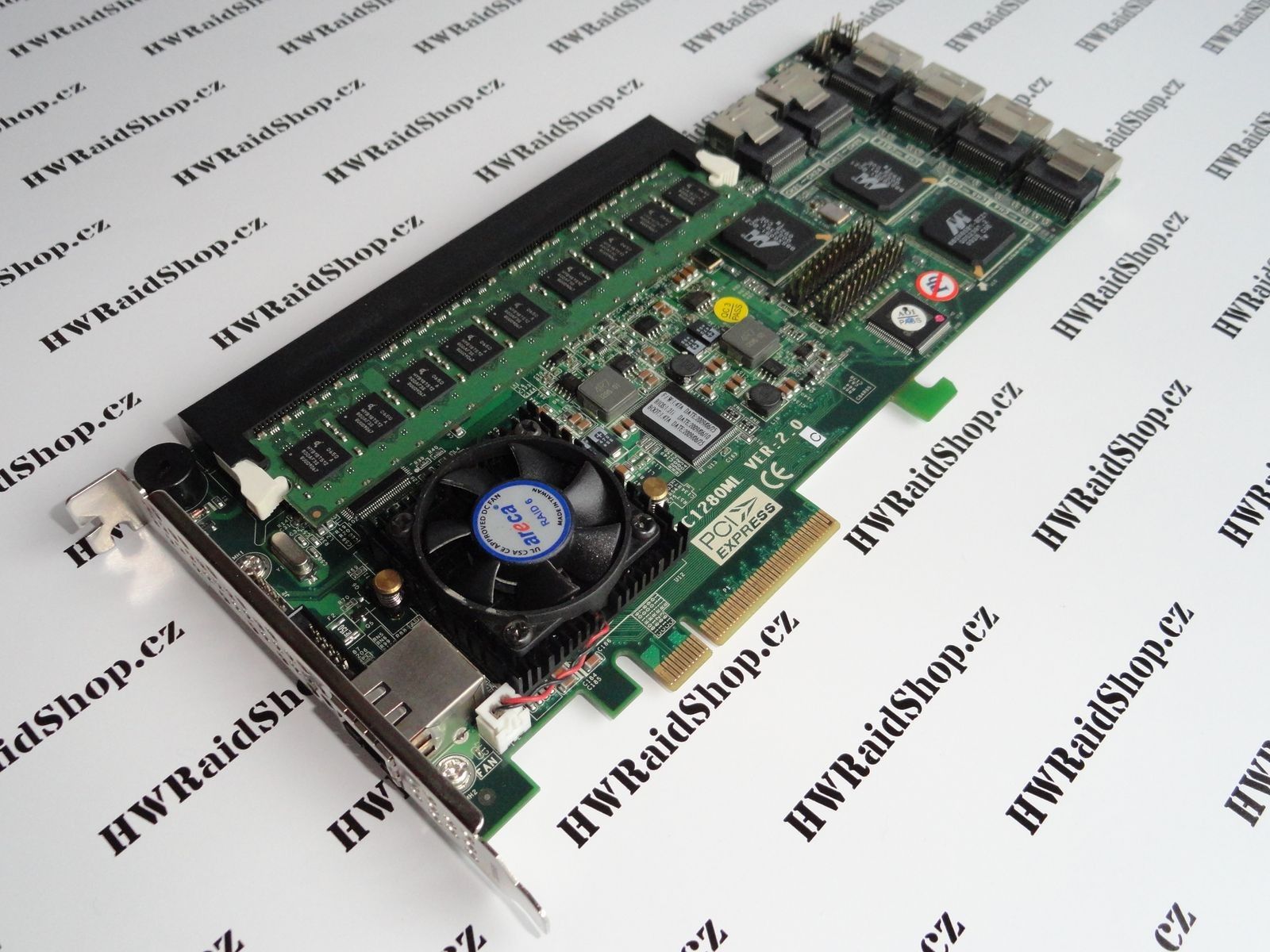

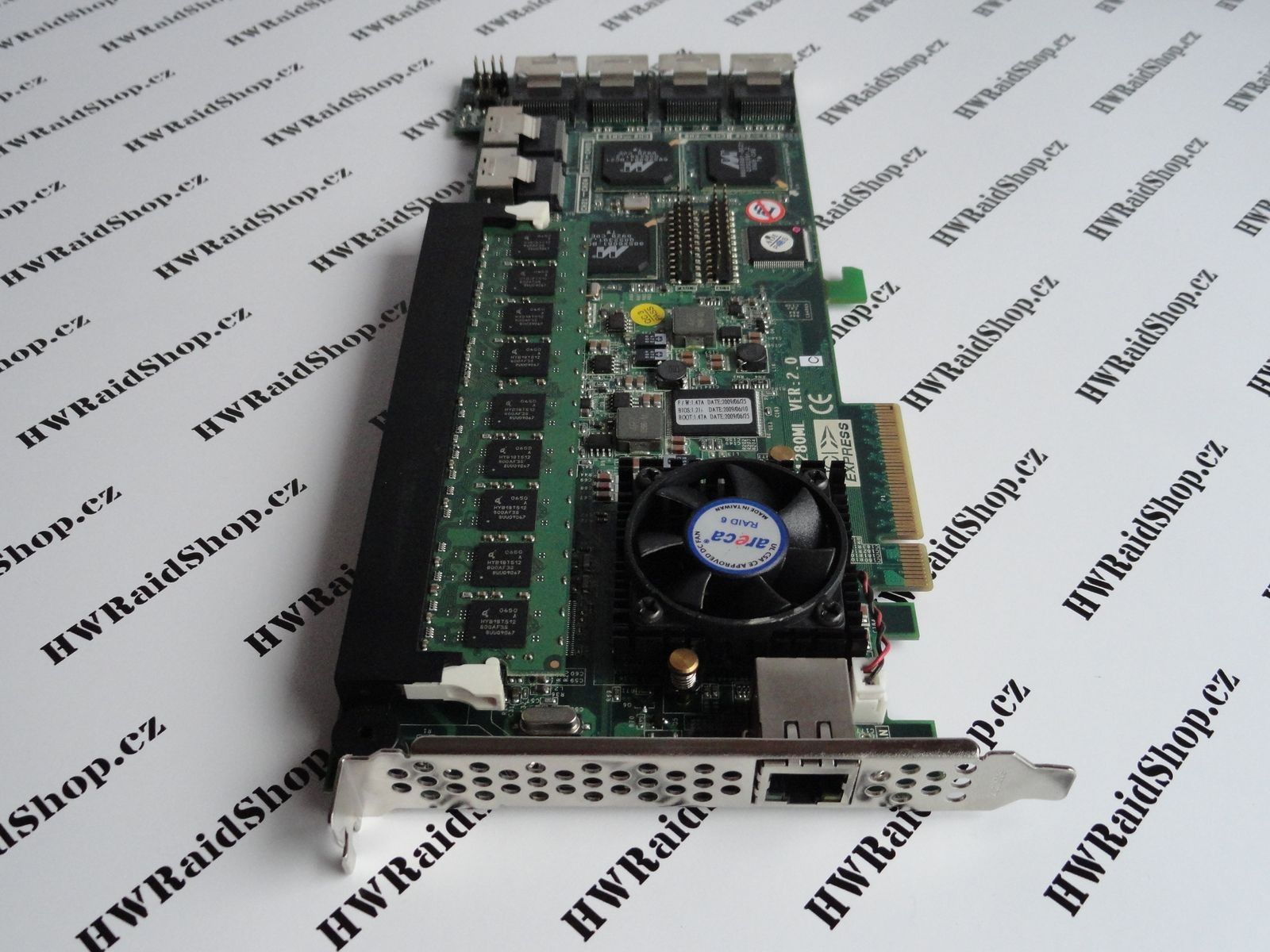

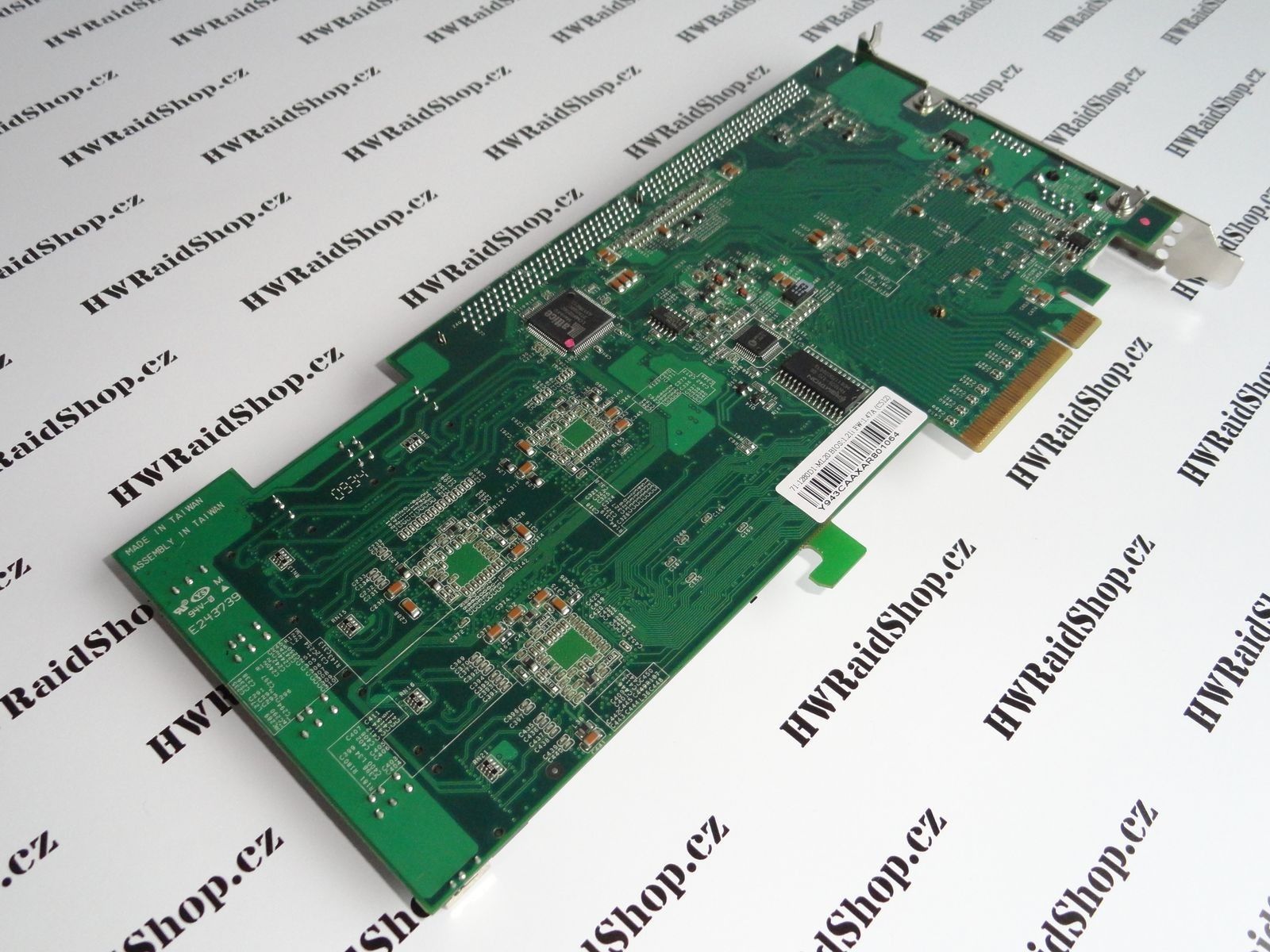

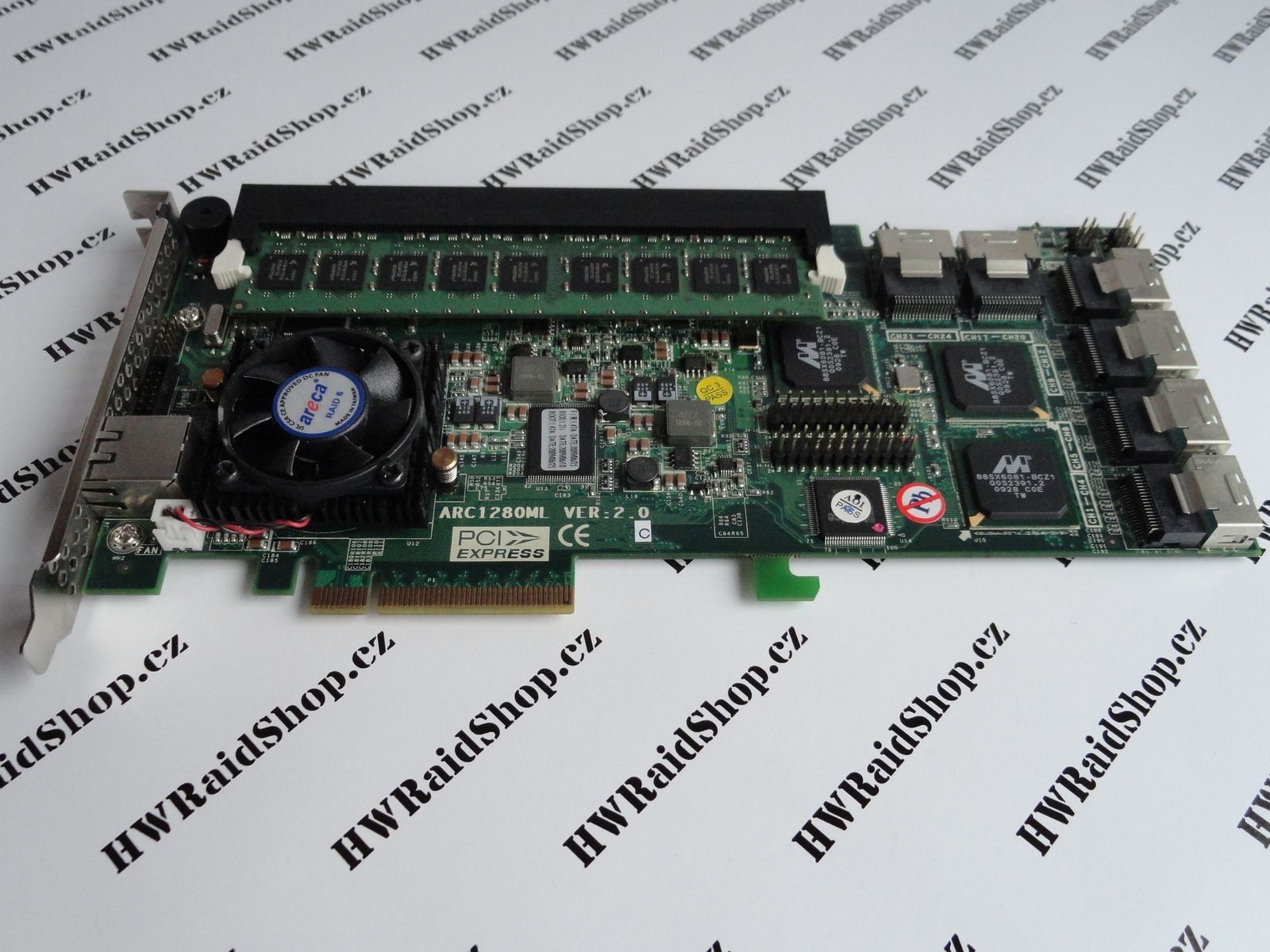

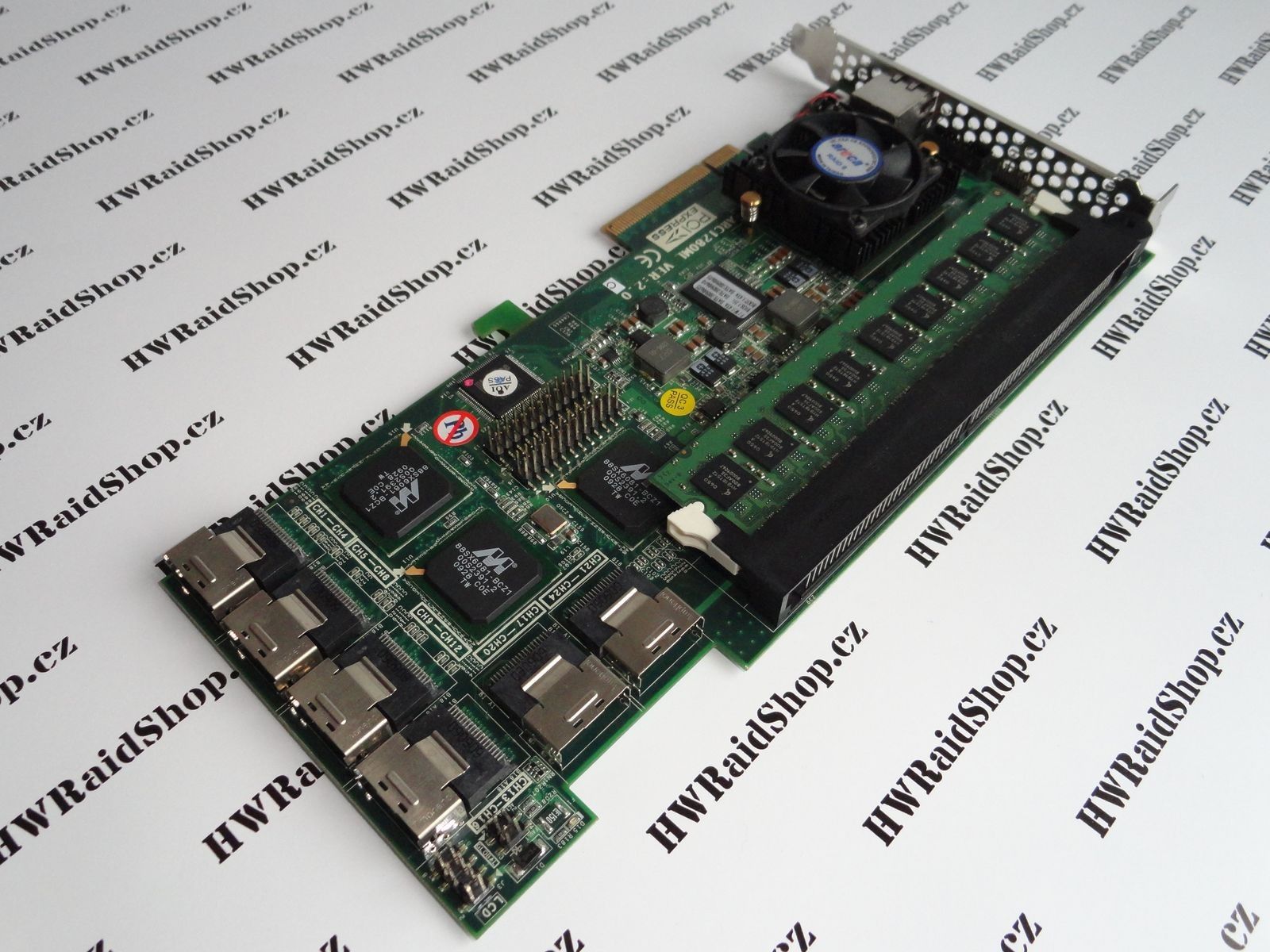

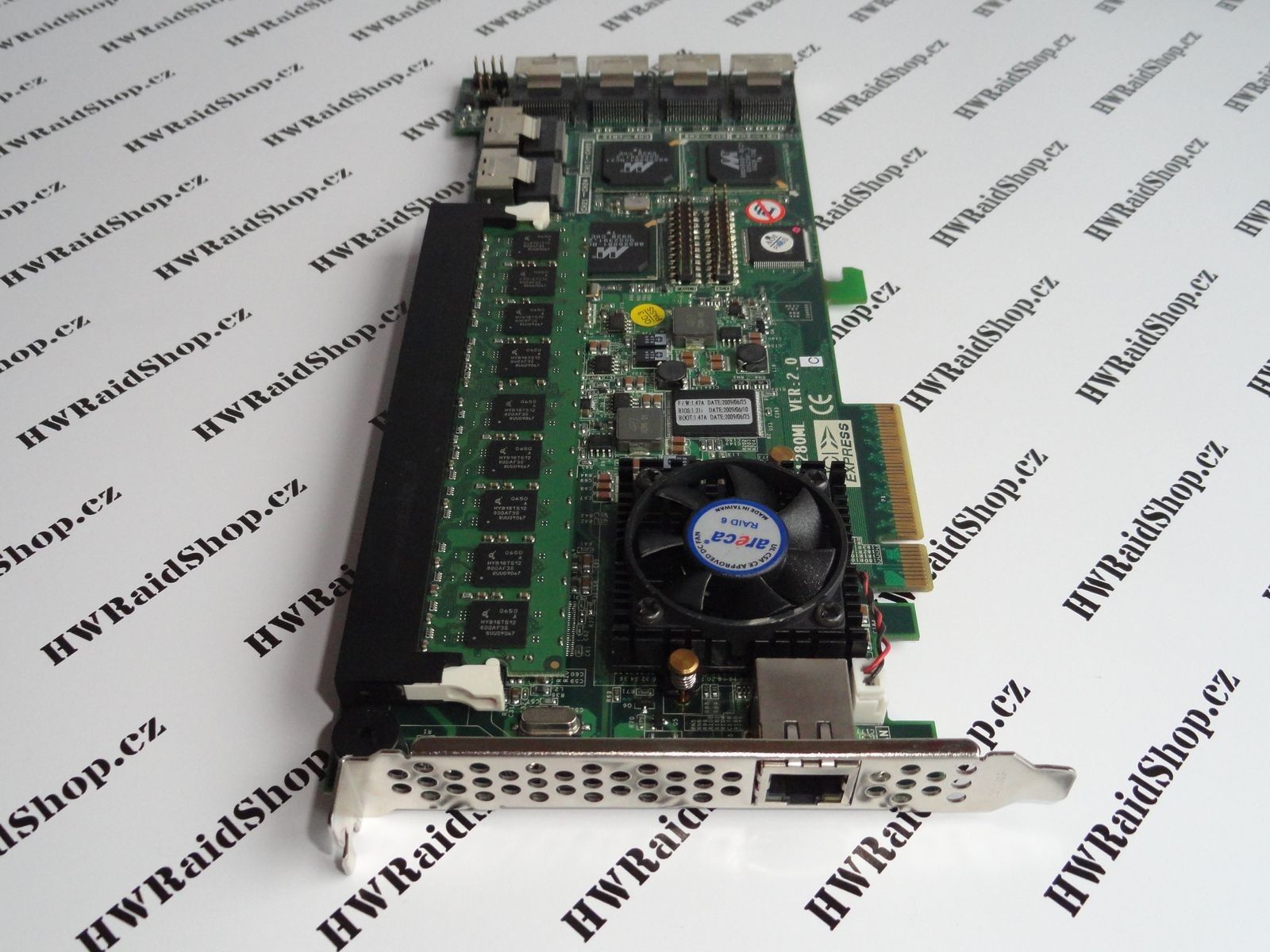

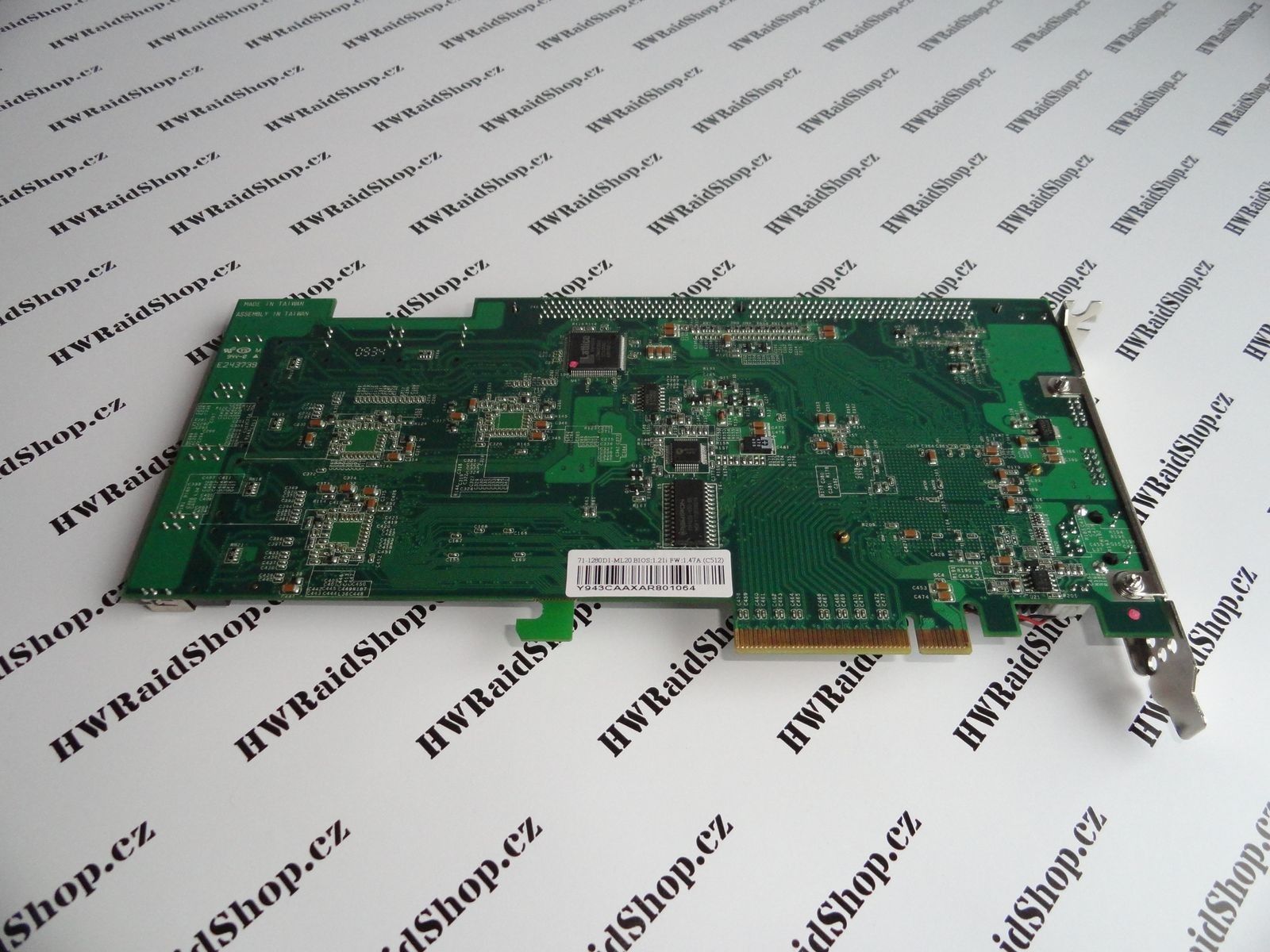

Areca ARC-1280ML / 1GB Cache 24-Port PCI-E

Raid řadič Areca ARC-1280ML / 1GB Cache 24-Port PCI-E

Možnost upgrade na 2GB Cache ram

Adapter Architecture

Intel 800MHz IOP341 I/O processor
  PCI-Express X8 bus
  One DIMM socket with default 512MB of DDR2-533 SDRAM with ECC protection, Upgrade to 4GB from PCB 2.0. An ECC or non-ECC SDRAM module using X8 or X16 chip organization
  Write-through or write-back cache support
  Support up to 24 SATA II drives
  Multi-adapter support for large storage requirements
  BIOS boot support for greater fault tolerance
  BIOS PnP (plug and play) and BBS (BIOS boot specification) support
  Intel RAID 6 Engine to support extreme performance RAID 6
  NVRAM for RAID event & transaction log
  Redundant flash image for adapter availability
  Battery Backup Module (BBM) ready
  ARC-6120BA-T112
  RoHS Compliant

 RAID Features
  RAID level 0, 1, 10(1E), 3, 5, 6 (if RAID 6 engine supported) and JBOD
  Multiple RAID selection
  Array roaming
  Online RAID level/stripe size migration
  Online RAID capacity expansion and RAID level migration simultaneously
   Online Volume set growth
  Instant availability and background initialization
  Automatic drive insertion/removal detection and rebuild
  Greater than 2TB per volume set
  Support S.M.A.R.T, NCQ and OOB Staggered Spin-up capable drives
  Support spin down drives when not in use to extend service life (MAID)
  Support NTP protocol to synchronize RAID controller clock over on-board Ethernet port

 Monitors/Indicators
  System status indication through HDD activity/fault connector, LCD Connector and alarm buzzer
  SMTP support email notification
  SNMP support for remote notification
  I2C Enclosure management ready
  Server chassis features the 36-ckt Mini-SAS connector (SFF-8087) on its SAS backplanes
   http://www.aicipc.com/SAS/sas_server_sa10.asp

 RAID Management
  Field-upgradeable firmware in flash ROM
   In-Band Manager
  Hot key boot-up McBIOS RAID manager via BIOS
   API library for customer to write its monitor utility
  Support Command Line Interface (CLI)
  Browser-based management utility via ArcHttp Proxy Server
  Single Admin Portal (SAP) monitor utility
   Out-of-Band Manager
  Firmware-embedded Browser-based RAID manager, SMTP manager, SNMP agent and Telnet function via on-controller Ethernet port
  API library for customer to write its monitor utility
  Push Button and LCD display panel

 Software Drivers
  Windows 7/2008/Vista/Server 2003/XP/2000
  Linux (RedHat, SuSE, Debian, Mandrake, TurboLinux, CentOS, etc.)
  FreeBSD
  Novell Netware 6.5
  Solaris 10 x86/x86_64
  SCO UnixWare 7.x.x
  Mac OS 10.4.x/10.5.x/10.6.x (EFI BIOS support)

Stránky o produktu:
http://www.areca.com.tw/products/main.htm

Podpora disků větších jak 2TB
