Zboží je bazarové - otestované 100% funkční
Výrobce: | ARECA |
Kód: | ARC-1212 |
Dostupnost: | skladem |
Počet ks: | 2 ks |
Snadná RAID administrace
Řadiče ARECA lze administrovat přes vestavěný McBIOS manažer dostupný při bootovaní či přes McRAID manažer s vlastní webovou konzolí která umožňuje lokálně i vzdáleně vytvářet a měnit pole, monitorovat stav. SAP (Single Admin Portal) umožňuje správu více ARECA řadičů v rámci jedné sítě z jediné administrační konsole.
Architektura řadiče
Vlastnosti RAID
Správa pole

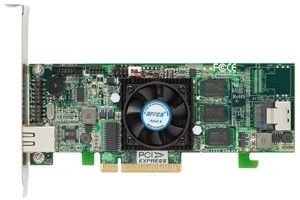

Areca’s high-performance PCIe to SAS RAID host adapters can provide up to 4 SAS/SATA II peripheral devices.
The adapters are based on the same RAID kernel of field-proven external RAID adapter.
Applications that benefit most features from these controllers include NAS, server RAID solutions, web servers, supercomputing, near-line backup, security systems and streaming applications.
Model | Areca ARC-1212 |
Adapter Architecture | |
Host Bus Type | PCIe x8 |
Processor | Intel IOP348 800MHz |
Controller-Flash-Image | redundant |
RAID Engine | Intel RAID engine |
Batterie Backup | optional |
Cache | DDR2-533 256MB |
HDDs | 4x SAS/SATA II (3Gbit/s) |
HDD Ports | 1x SFF-8087 |
Operating Systems | |
Supported OS | Windows 10/8/Server 2012 R2/7/2008/Vista/XP/2003 |
Linux | |
Free BSD | |
VMware (driver 6.x support CLI in-band management utility) | |
Novell Netware 6.5 | |
Solaris 10 x86/x86_64 | |
SCO Unixware 7.x.x | |
Mac OS X 10.5.x or higher (EFI BIOS support) | |
RAID | |
RAID Level | 0, 1, 10, 3, 5, 6, Single Disk or JBOD |
RAID Features | multiple RAID selection, instant availability and background initialization, greater than 2TB per volume set (64-bit LBA support), support spin down drives when not in use to extend service life (MAID), support NTP protocol synchronize RAID controller clock over the on board Ethernet port |
Online expansion | online array roaming, online RAID level/stripe size migration, online capacity expansion and RAID level migration simultaneously, online volume set growth |
Environment Specification | |
Humidity | 15%~80%, non-condensing |
Operating Temperature | +5°C~50°C |
Dimension | |
Physical Dimensions/mm (Width x Height) | 168 x 62 |
Form Factor | Low Profile |
Raid Level: | 0, 1, 10, 3, 5, 6, Single Disk or JBOD |
Cache: | 256MB |
Celkový počet portu: | 4 |
Počet internich portu: | 4 |
Typ konektoru: | SFF-8087 interní |
Připojeni k PC: | PCI-Express x8 |
Vzdálená administrace: | ano |
