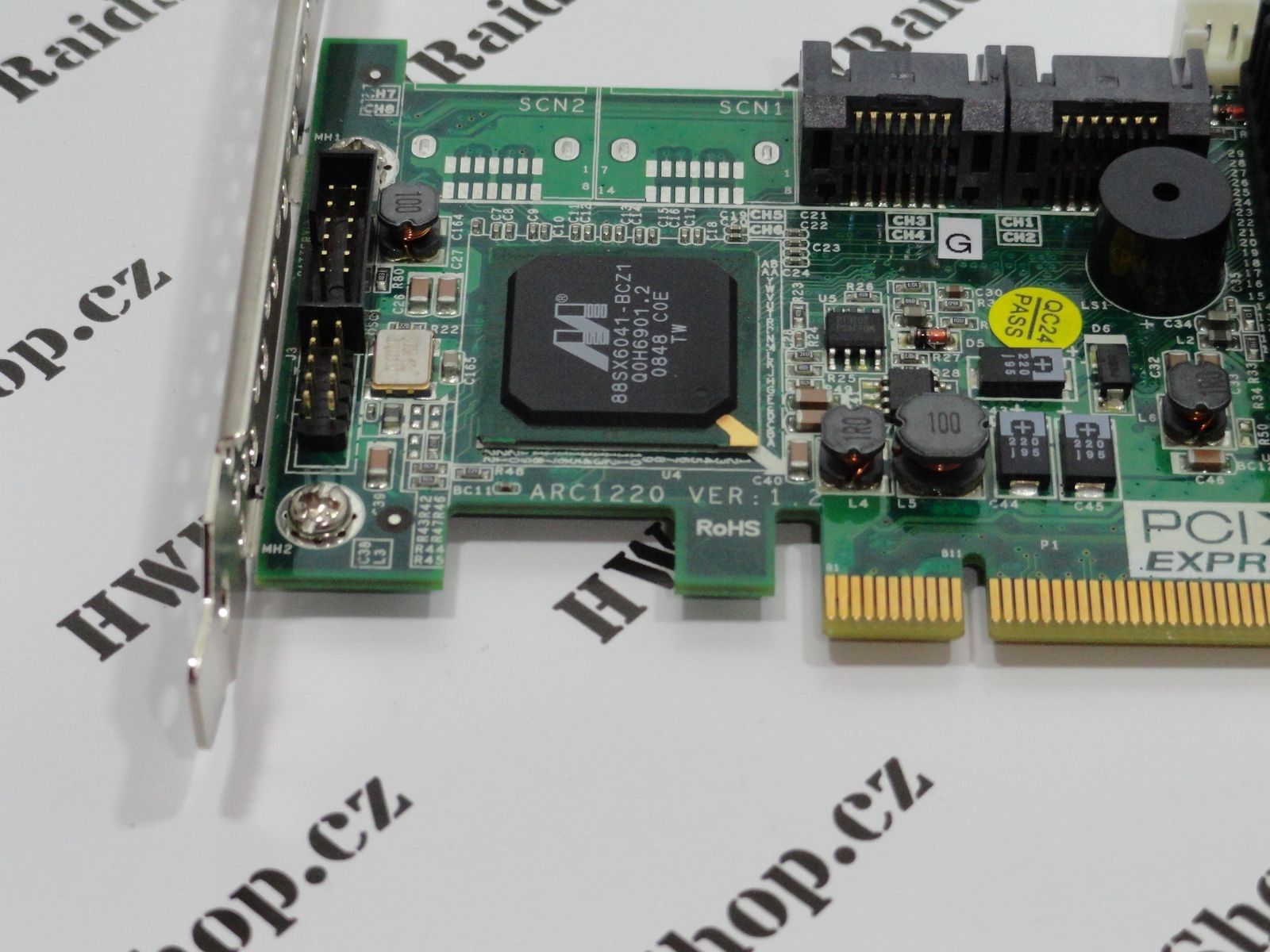

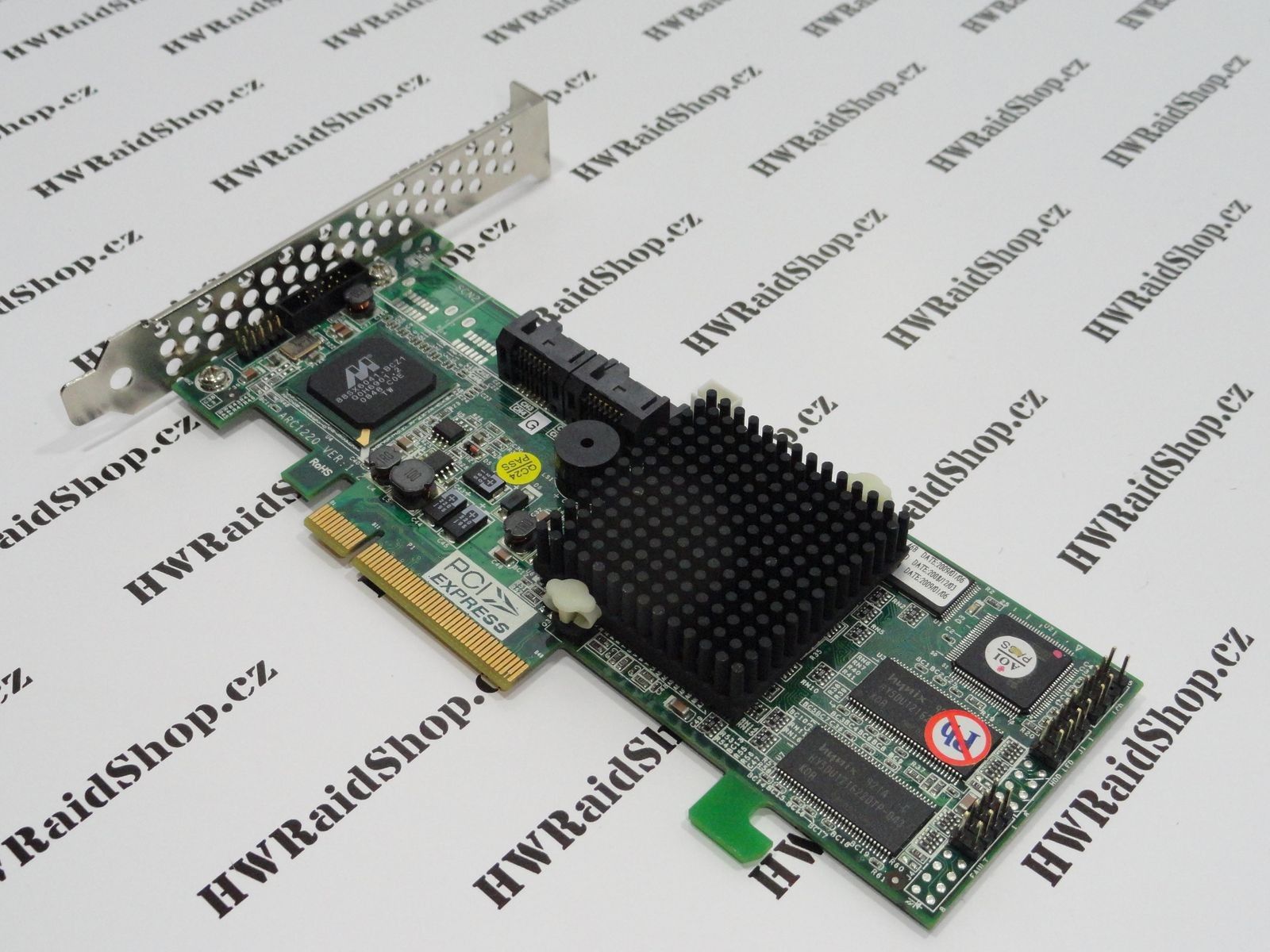

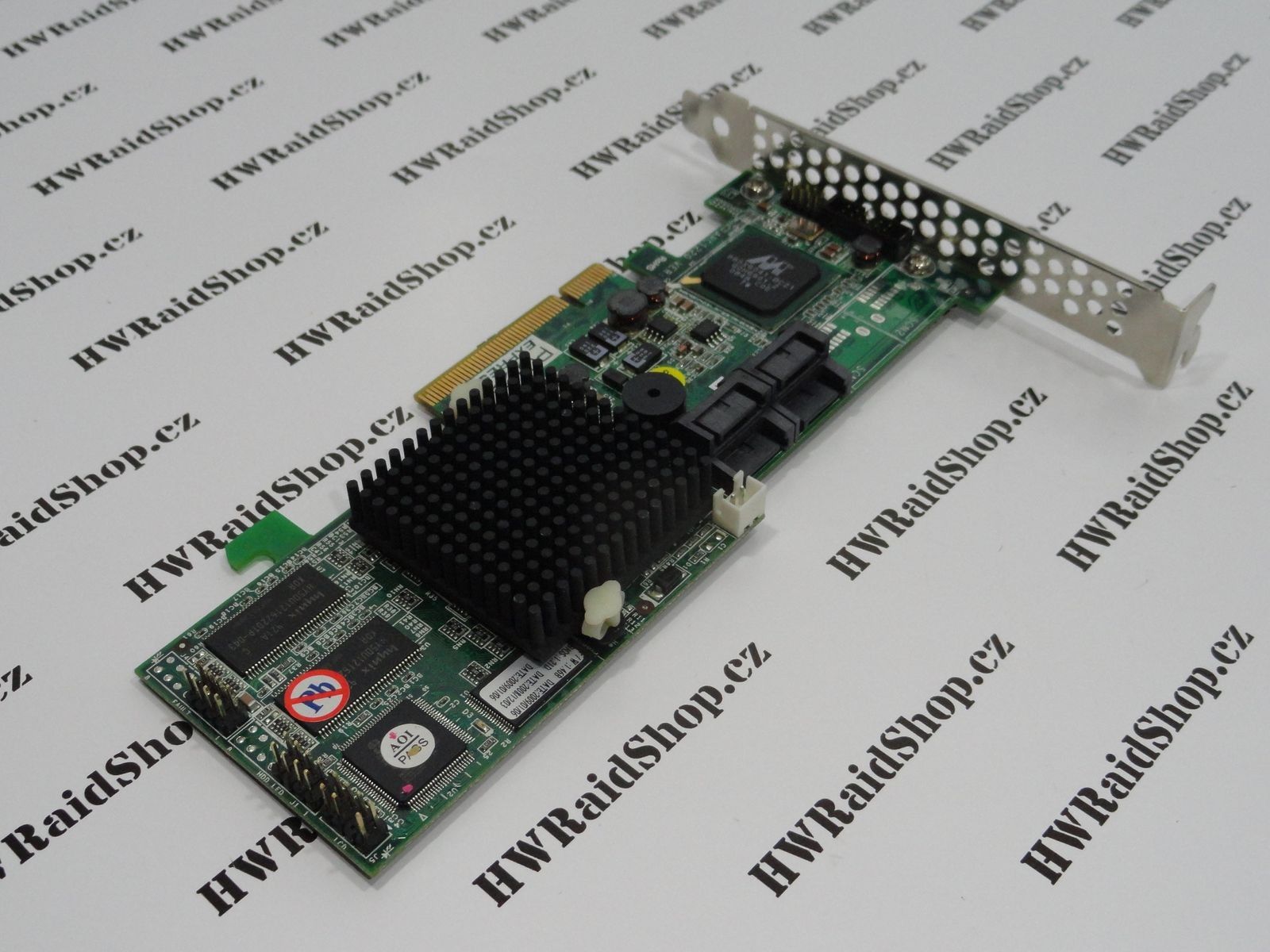

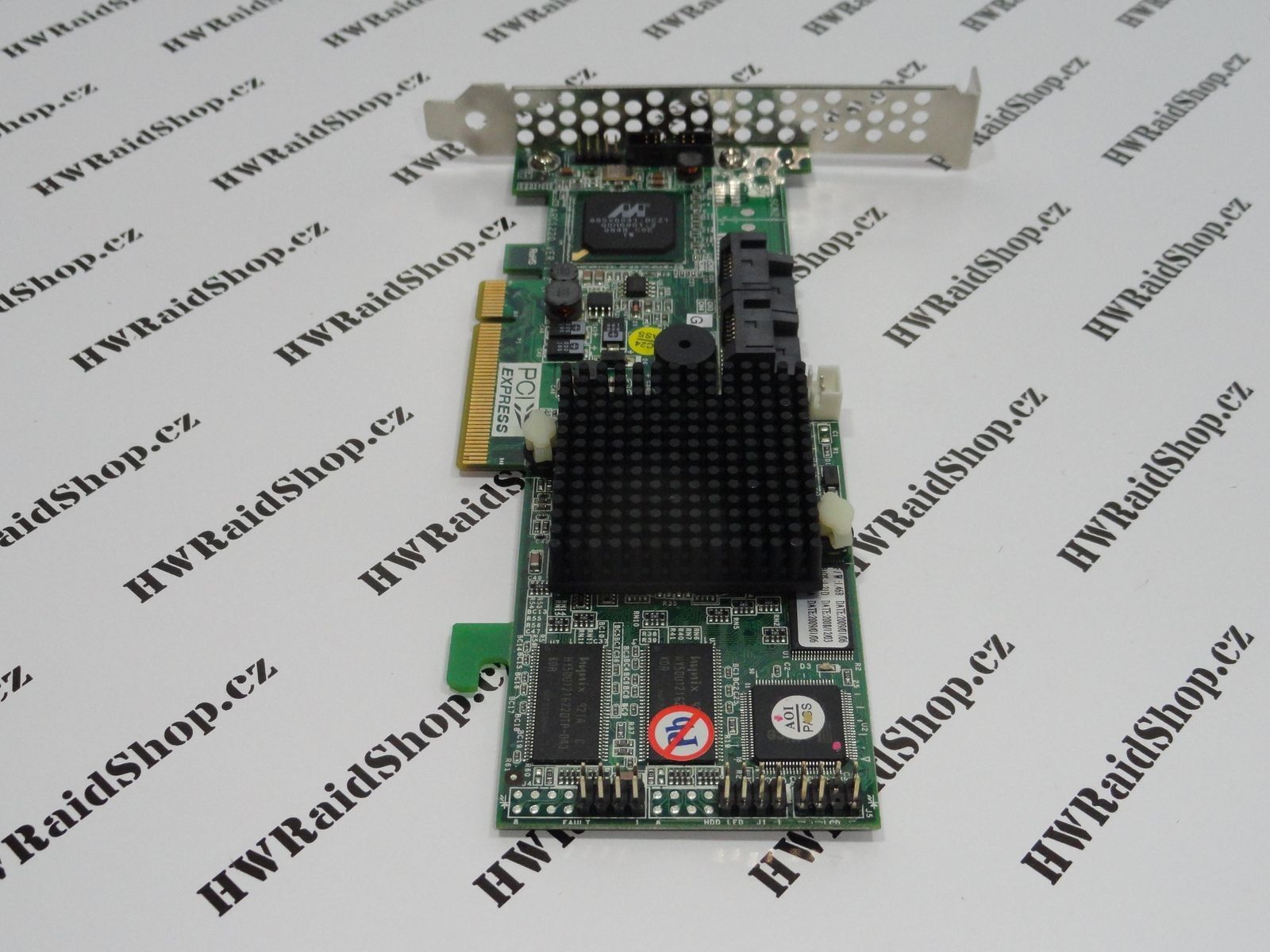

ARECA ARC-1210 256MB 4-port PCI-E RAID ADAPTER

Úvod Řadiče SAS/SATA SAS/SATA II (3Gb/s)ARECA ARC-1210 256MB 4-port PCI-E RAID ADAPTER

ARECA ARC-1210 256MB 4-port PCI-E RAID ADAPTER

Zboží je bazarové - otestované 100% funkční

Výrobce: ARECA
Kód: ARC-1210

Dostupnost: Prodáno
Počet ks: 0 ks
2 990,- Kč1 790,- Kč

ARECA ARC-1210 256MB 4-port PCI-E RAID ADAPTER

The ARC-12XX SATA ll RAID host adapter is a high-performance PCI-Express bus to SATA ll Disk Array host adapter. The controller can provide up to 4, 8, 12, or 16 SATA ll peripheral devices on a single host adapter. When properly configured, the SATA host adapter can provide non-stop service with a high degree of fault tolerance through the use of RAID technology and advanced array management features. Intel IOP333 processor has integrated the RAID 6 engine inside. It offers Areca the advantage of reduced engineering and development costs, by having the New RAID6 function built-in and saves on component costs and internal PCI bandwidth. Intel's emphasis on architectural commonality in IOPs allows Areca developers to capitalize on their existing code base.

  • newegg Serial ATA Support With multi-layer SATA connector, the Areca ARC-1210 supports up to 4 SATA II devices for enhanced flexibility and speed.
  • newegg RAID Support The Areca ARC-1210 supports multi-level RAID configuration including RAID level RAID 0/1/1E/3/5 JBOD for better performance, enhanced data security and flexible capacity upgrades.
  • newegg 256MB Memory The Areca ARC-1210 features default 256MB on-board DDR333 memory with ECC protection for high data transfer speed and maximum data integrity.
  • newegg On-board I/O Processor The Areca ARC-1210 features an Intel IOP332 I/O processor for fast processing.


Podpora disků větších jak 2TB





Model
Brand
areca
Model
ARC-1210
Specifications
Type
SATA II (3.0Gb/s)
Internal Connectors
Multi-layer SATA connector
Interface
PCI-Express x8
Cache Memory
256MB on-board DDR333 SDRAM with ECC protection
RAID
RAID 0/1/1E/3/5 JBOD
Operating Systems Supported
Windows 2000/XP (Scsiport Driver)
Windows Server 2003 (Scsiport Driver and Storport Driver)
Redhat Linuxand SuSE Linux
FreeBSD
Solaris 10x86
UnixWare 7.1.x
Netware 6.5
Windows Vista
Works with Windows Vista
Features
Features
IntelR IOP332 I/O processor
Write-through or write-back cache support
Support up to 4 SATA II drives
Multi-adapter support for large storage requirements
BIOS boot support for greater fault tolerance
BIOS PnP (plug and play) and BBS (BIOS boot specification) support

RAID Features:
Multiple RAID selection
Array roaming
Online RAID level/stripe size migration
Online RAID capacity expansion and RAID level migration simultaneously
Instant availability and background initialization
Automatic drive insertion/removal detection and rebuild
Greater than 2TB per volume set
Support S.M.A.R.T, NCQ and OOB Staggered Spin-up capable drives
Support spin down drivers when not in use to extend service life (MAID)

Monitors/Indicators:
System status indication through HDD activity/fault connector, LCD Connector and alarm buzzer
SMTP support email notification
SNMP support for remote notification
I2C Enclosure management ready
Raid Level: 0, 1, 1E, 3, 5, JBOD
Cache: 256MB
Celkový počet portu: 4
Počet internich portu: 4
Typ konektoru: SATA II
Připojeni k PC: PCI-Express x8
