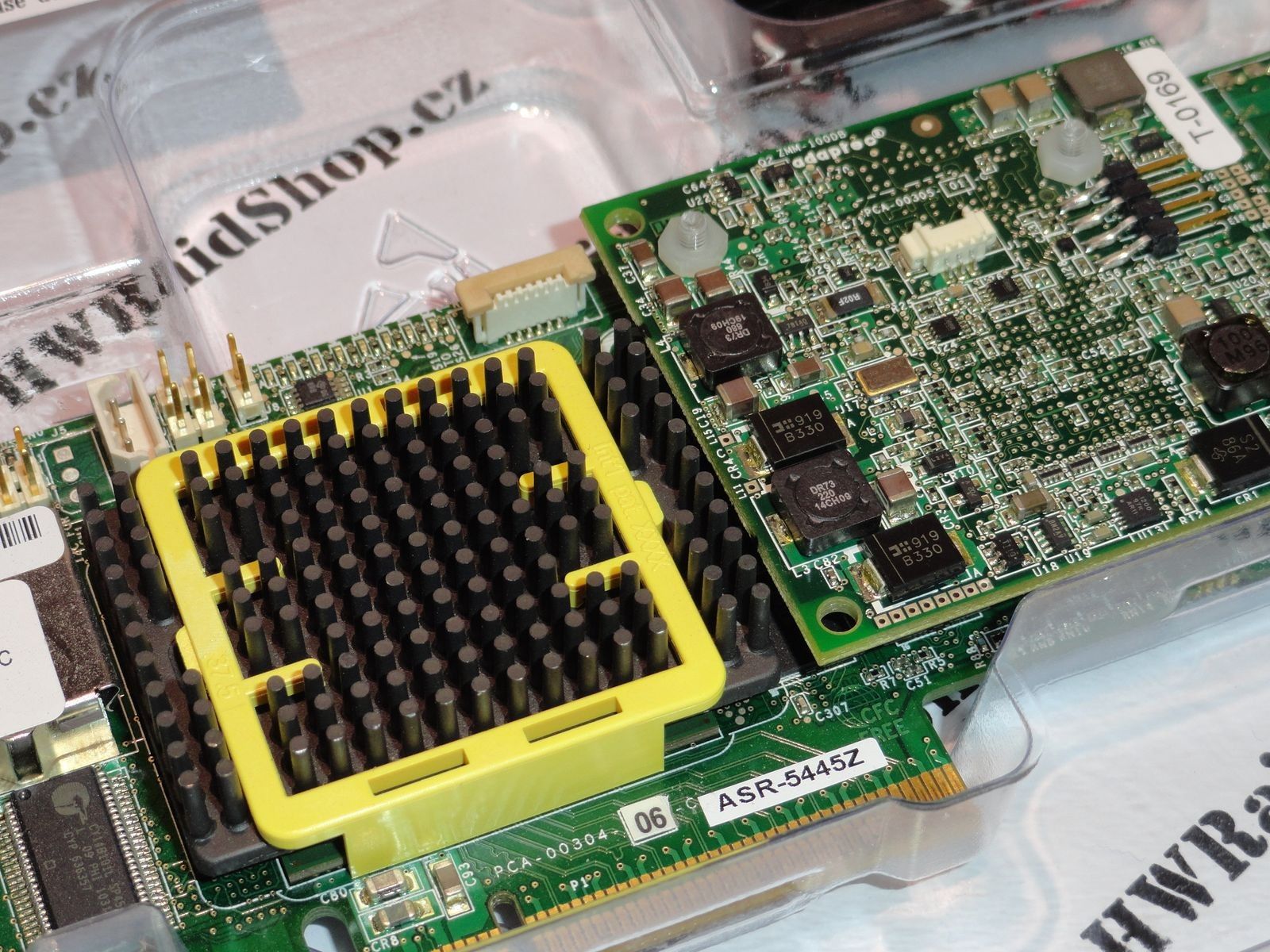

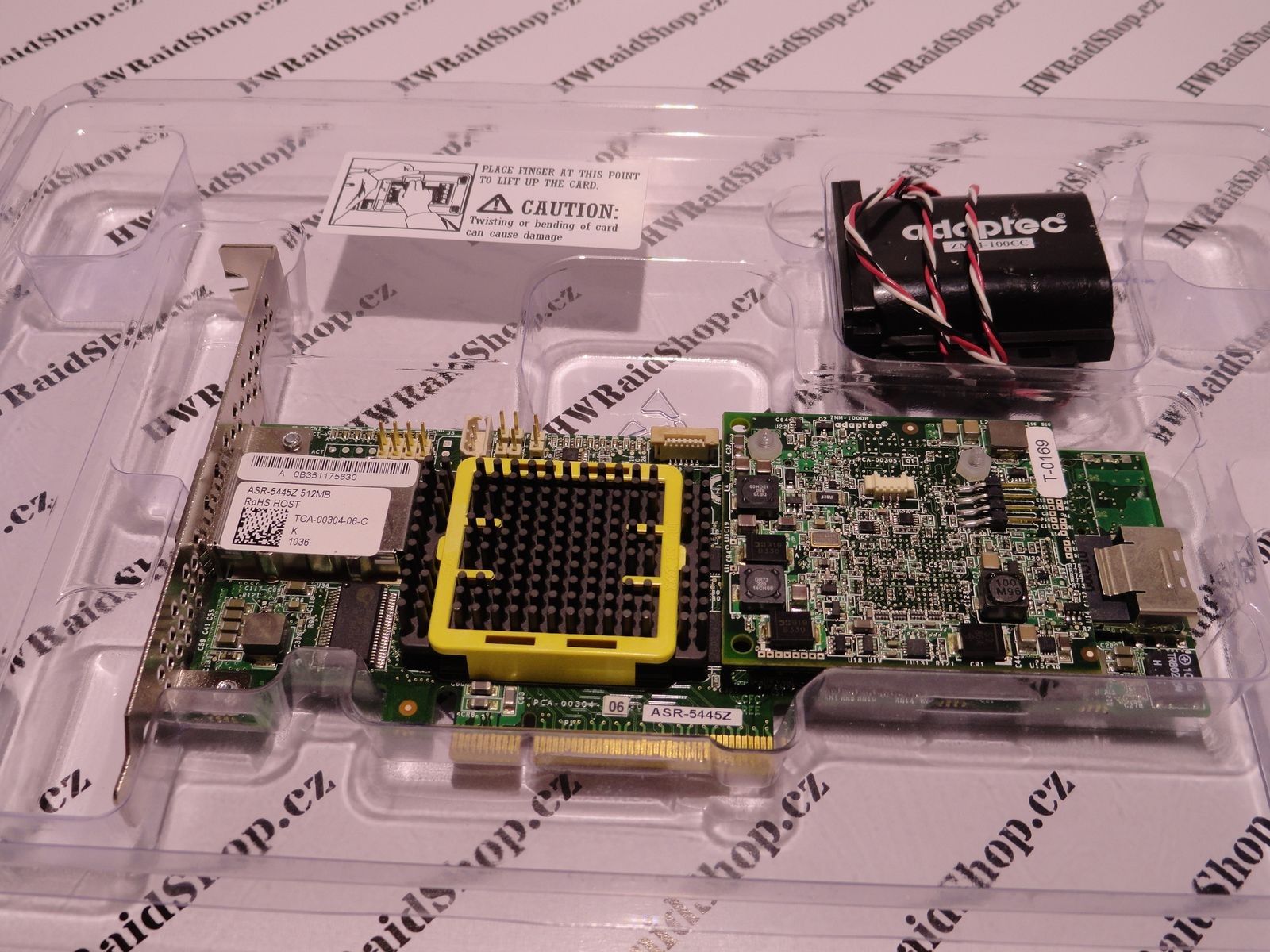

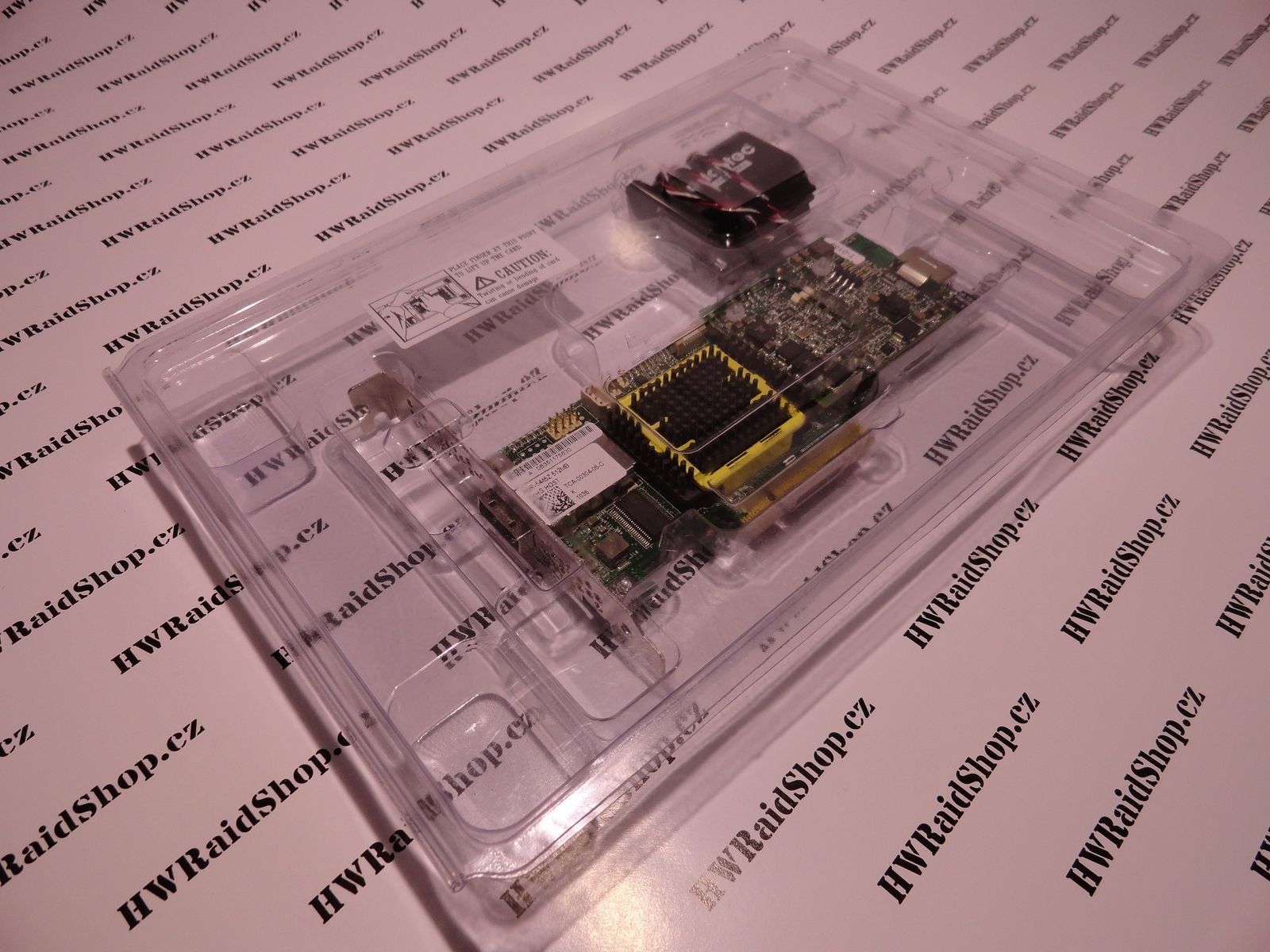

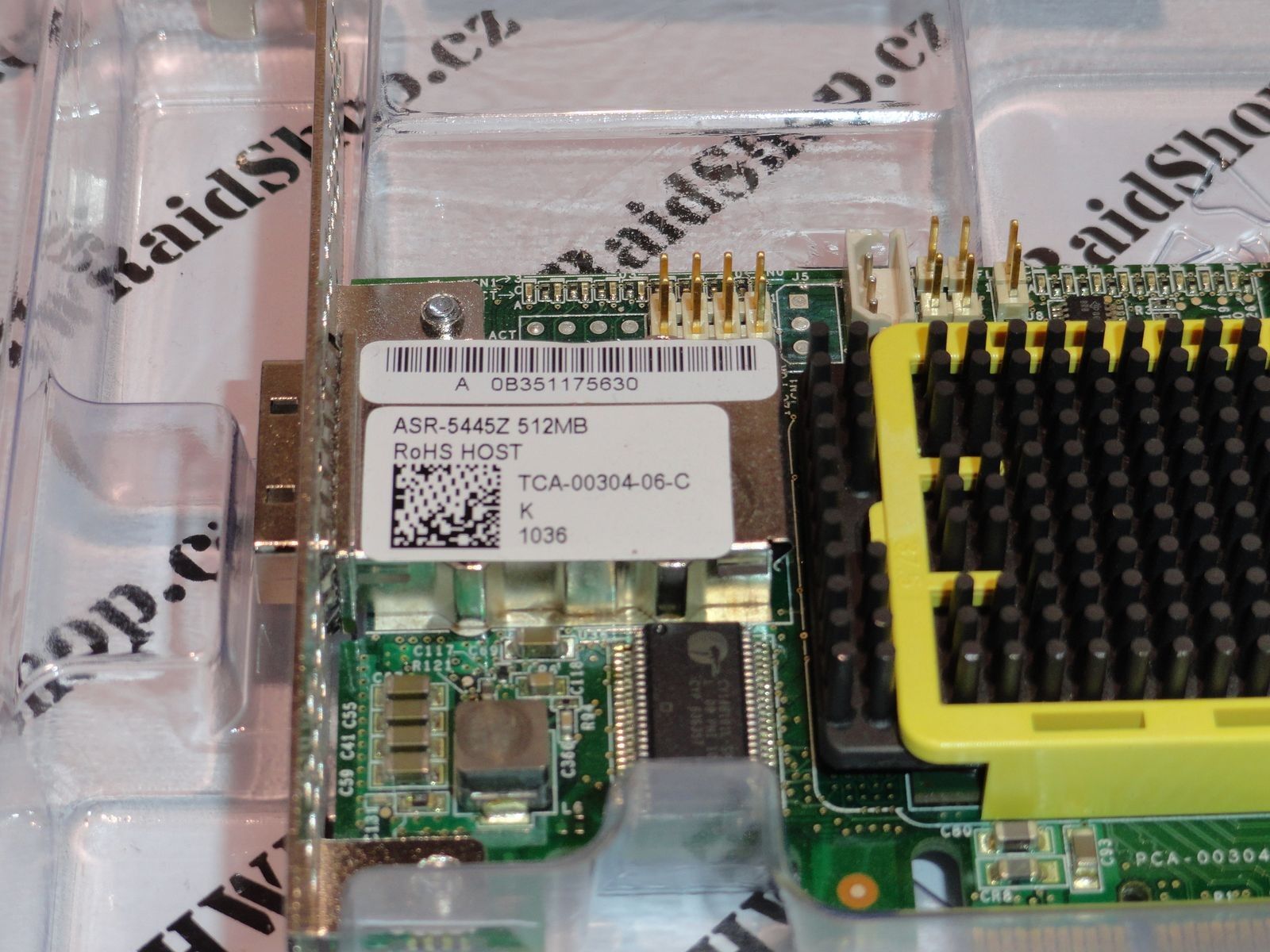

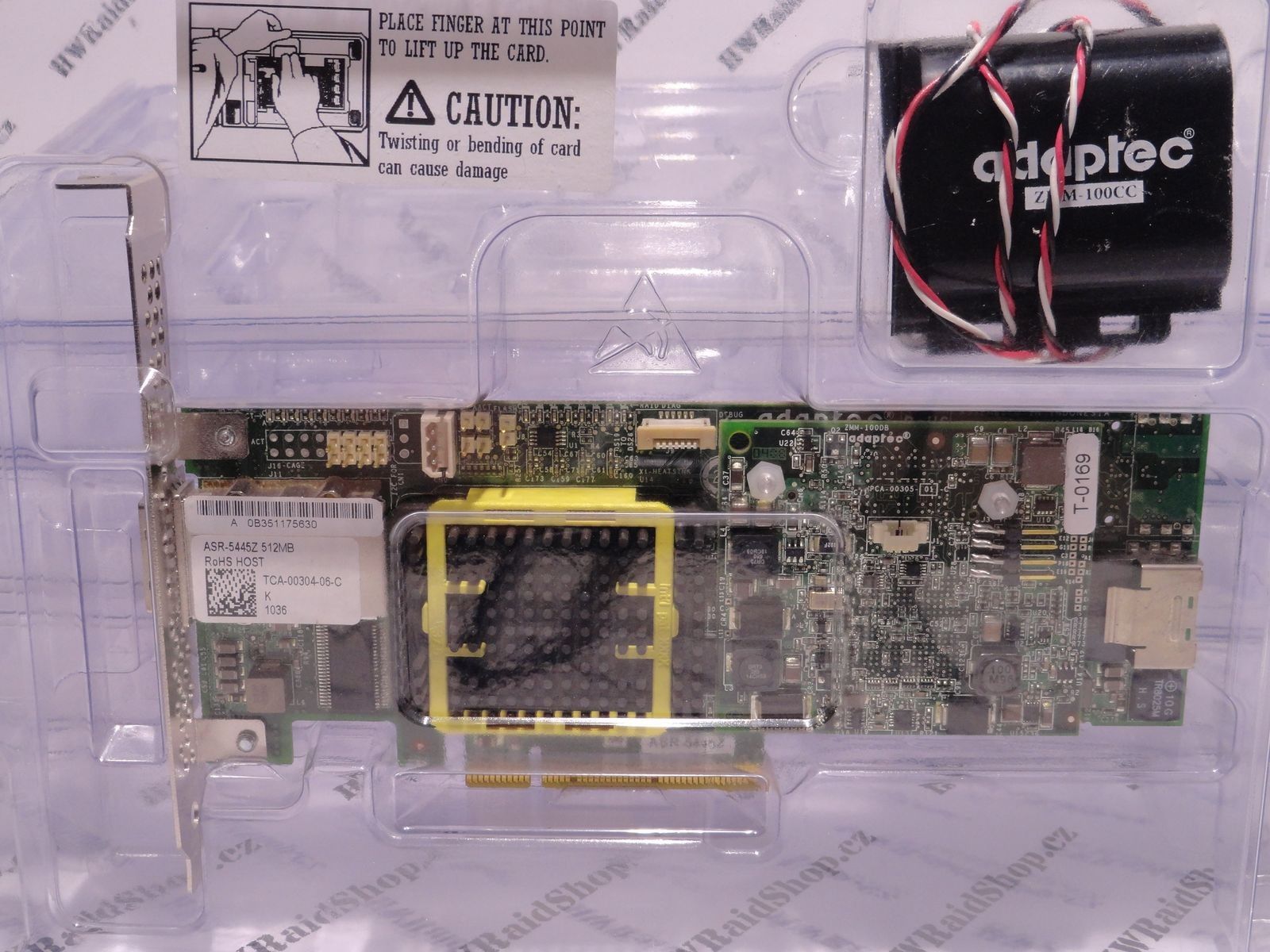

ADAPTEC RAID 5445Z patří mezi kvalitní a výkonné SAS/SATA řadiče pevných disků s 512 MB paměti DDR2, 1.2 GHz dvoujádrovým ROC (RAID on Chip), 4 GB NAND flash paměti. Tento 8portový řadič, skládající se z 4 interních a 4 externích portů, plně podporuje disková pole RAID a je určen pro rozhraní PCI-Express x8.
Nabízí plnou ochranu bez baterií, maximální škálovatelnost, bezúdržbovost a jednoduchou správu polí RAID typu 0, 1, 1E, 5, 5EE, 6, 10, 50 a 60, to vše managovatelné pomocí Intelligent Power Management a ASM prostřednictvím sítě s podporou protokolů SNMP a SMTP. Tento řadič nabízí kompletní podporu SAS (Serial Attached SCSI). Dále pak standard Serial ATA 3 Gb/s, který rovněž zahrnuje technologie jako "Native Command Queuing". Ta umožňuje řazení příchozích příkazů tak, aby je disk mohl provádět co nejefektivněji (tedy s minimálním přesunem hlav apod.). NCQ se projeví především při náhodném přístupu k disku, který bude v budoucnu stále častější.
Podporovány jsou operační systémy Windows, FreeBSD, Red Hat Linux, SUSE Linux, SCO OpenServer, UnixWare, Sun Solaris, VMware ESX.
The Series 5Z family of high-performance Adaptec SAS/SATA RAID adapters offers both high I/O transaction and high bandwidth processing for use with cost-effective, high-capacity SATA drives or high-performance SAS drives.
The Adaptec RAID Series 5Z adapters utilize industry-leading dual core RAID on Chip (ROC), 512MB of DDR2 write cache, and connectivity with the latest x8 PCI-Express to deliver over 250,000 I/Os 1.2GBs. Using SAS expanders, they can connect up to 256 SATA/SAS devices.
The Adaptec RAID Series 5Z adapters supports a broad range of operating systems, compatibility with more than 300 third-party devices, and full integration with Adaptec Storage Manager™ for centralized management of all Adaptec raid adapters on the network.
Zero-Maintenance Cache Protection – Save Thousands of Dollars in Data Center Costs
Adaptec Series 5Z adapters introduce Zero-Maintenance Cache Protection, a revolutionary advancement that maximizes performance and extends power savings by protecting adapter cache without battery backup units and without incurring monitoring, maintenance, replacement or disposal costs. During a system power loss, the flash memory-based cache protection can preserve data for up to 10 years.
Intelligent Power Management - Reduce Power by up to 70%
Adaptec Intelligent Power Management slashes storage power and cooling costs by spinning down idle disks and providing a lower power mode for active disks.
| Supported Operating Systems |
| |
Microsoft Windows
Red Hat Linux
SUSE Linux
SCO OpenServer
UnixWare
Sun Solaris
FreeBSD
VMware ESX
For a detailed list see ASK Answer ID 16884 |
| |
| Benefits |
| |
Performance Unified Serial RAID adapter supports both SATA and SAS devices. Ideal for bandwidth intensive storage applications; NAS, OLTP servers, web servers, and digital surveillance. Offers Zero-Maintenance Cache Protection and Intelligent Power Management. |
| |
| Key Differentiators |
| |
Zero-Maintenance Cache Protection
Intelligent Power Management
|
| |
| Customer Needs |
| |
High I/O transaction and high bandwidth processing. |
| |
| Cache Memory |
| |
512MB of DDR2 memory
|
| |
| RAID Levels |
| |
RAID levels 0, 1, 1E, 5, 5EE, 6, 10, 50 and 60 |
| |
| Key RAID Features |
| |
• Supports 8 direct-attached or up to 256 SATA or SAS disk drives using SAS expanders
• RAID levels 0, 1, 1E, 5, 5EE, 6, 10, 50 and 60
• Quick initialization
• Online Capacity Expansion
• Copyback Hot Spare
• Dynamic caching algorithm
• Native Command Queuing (NCQ)
• Background initialization
• Hot-plug drive support
• RAID Level Migration
• Hot spares – global, dedicated, and pooled
• Automatic/manual rebuild of hot spares
• SAF-TE enclosure management
• Configurable stripe size
• S.M.A.R.T. support
• Up to 512TB array sizes
• Multiple arrays per disk drive
• Bad stripe table
• Dynamic sector repair
• Staggered drive spin-up
• Bootable array support
• Optimized Disk Utilization |
| |
| Bus System Interface Type |
| |
8-lane PCIe |
| |
| External Connectors |
| |
1 external (SFF-8088) Mini SAS
|
| |
| Internal Connectors |
| |
1 internal (SFF-8087) Mini SAS
|
| |
| Data Transfer Rate |
| |
3 Gb/s per port |
| |
| Package Contents |
| |
• Adaptec RAID 5445Z Adapter
• additional low profile vented bracket
• Quick Installation Guide
(English/French/German/Italian/Spanish)
• Software and documentation CDs |
| |
| |
|
Management Utilities
Adaptec Storage Manager™ (ASM)
• Java-based GUI Management Utility
• Remote configuration, monitoring & notification
• ASM OS Support: Windows, Linux, SCO, Solaris, FreeBSD
• Microsoft VDS Support
• SNMP, SMTP
• Remote firmware updates
ARCCONF
• Command Line Interface
• SMI-S support for VMware
Adaptec BIOS Utility (ACU)
• BIOS level configuration utility
• Flashable BIOS support
Physical Size
2.5" H x 6.6" L (64mm x 167mm)
Operating Temperature
0°C to 55°C* (with 200 LFM airflow)
Note: This Adaptec card contains a powerful RAID processor which requires adequate airflow to operate reliably. Please install this card only into server or PC chassis with recommended airflow (200 LFM).
* Ambient temperature measured 1" away from the RAID processor
Operating Voltage
0.40 amp @ 3.3V
1.2 amp @ 12V
Regulatory Certification
CE, FCC, UL, C-tick, VCCI
Mean Time Before Failure (MTBF)
873,402 hours at 40 degree C.
|
