3ware 9590SE-16ML bulk

Úvod

Řadiče SAS/SATA

SAS/SATA II (3Gb/s)

3ware 9590SE-16ML bulk

Sleva

3ware 9590SE-16ML bulk

Zboží je bazarové - otestované 100% funkční

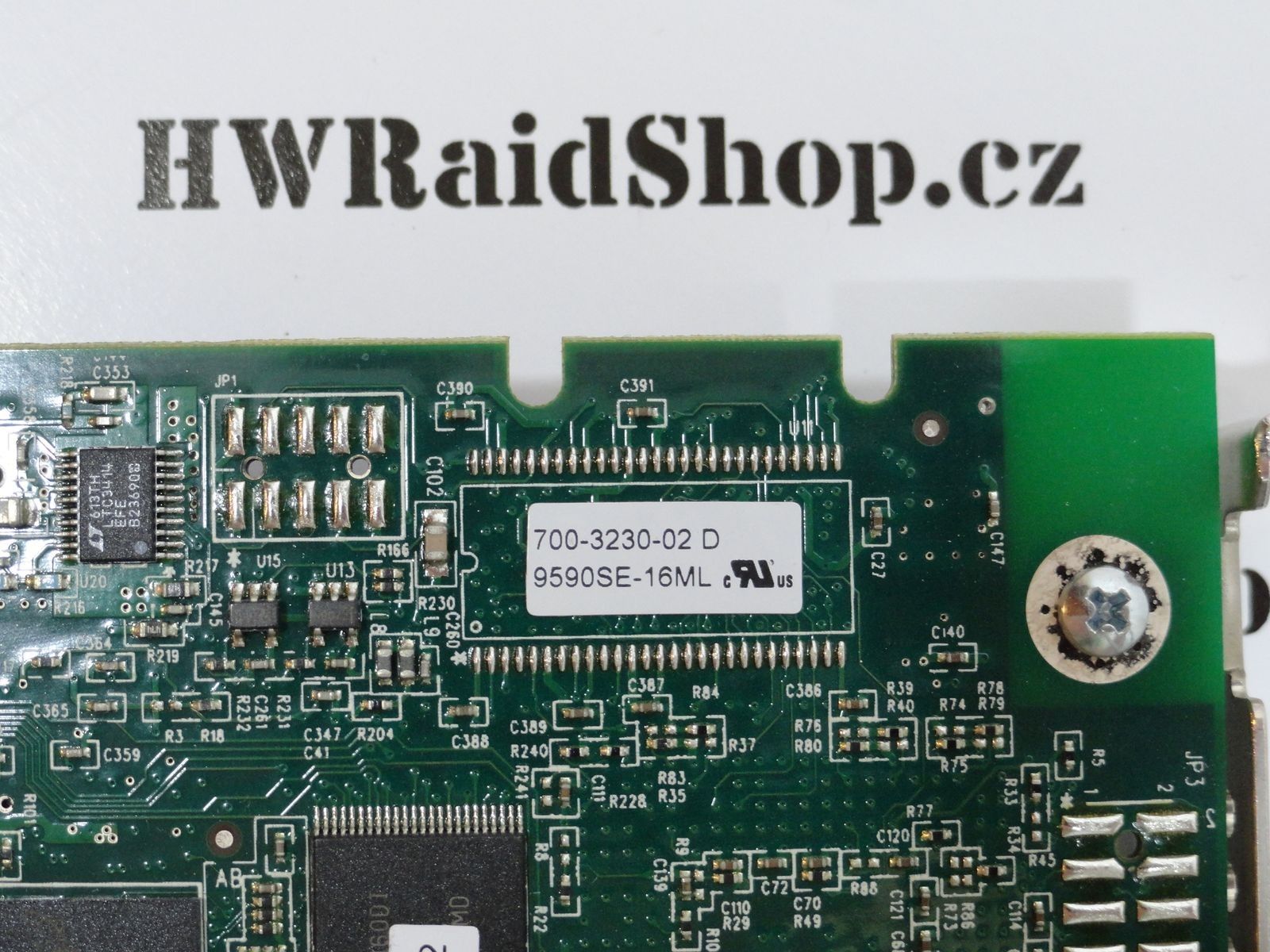

3WARE AMCC 9590SE-16ML, 16-kanálový SATA II řadič, multi-lane, PCIe x4, 256MB DDR2, bulk

RAID Levels 0, 1, 10, 5, 50, Single Disk, and JBOD
Multi-lane Connector support up to 8 SATA II Internal Connectors
3 Gb/s

Výrobce:	AMCC/3WARE/LSI
Kód:	9590SE-16ML_b

Dostupnost:	skladem
Počet ks:	1 ks

6 900,- Kč2 490,- Kč

3ware 9590SE-16ML bulk

3ware 9590SE-16ML

Model

Brand: 3ware

Model: 9590SE-16ML

Specifications

Type: SATA II (3.0Gb/s)

Internal Connectors: Multi-lane Connector support up to 16 SATA II

Interface: PCI Express x4

Transfer Rate: 3 Gb/s

Cache Memory: 256 MB DDR2 400 memory with ECC protection

RAID: RAID Levels 0, 1, 10, 5, 50, Single Disk, and JBOD

Operating Systems Supported: Microsoft Windows 2003/XP/2000, Red Hat Linux, SuSE Linux, Fedora Linux, 2.4 Linux kernel, 2.6 Linux kernel, FreeBSD, 32/64-bit support

Dimensions: 7.3" x 4.4"

Features

Features: 7th-generation StorSwitch non-blocking switched architecture
On-board I/O RISC processor and RAID offload provides true hardware RAID
Bootable array support for greater fault tolerance
Variable stripe size for performance tuning by application
64-bit LBA support
ATA pass-through mode support
32 pooled DMA channels
Complete configuration management suite
SNMP support
SMTP support for email/pager notification
ATA/6 and Out of band (OOB) staggered drive spin-up support
Auto carving allows logical units larger than 2 TB to be divided into multiple units for legacy operating systems that are limited to a maximum of 2 TB per logical unit
StorSave platform for advanced performance tuning with the BBU
Multiple logical unit sizes and RAID levels on one card
Multiple card support within a system for large storage requirements
Hot-swap and hot-spare support for data availability
Dynamic sector repair for robust data protection
S.M.A.R.T. disk drive monitoring for reliability
Emergency Flash Recovery protects against failed firmware upgrade
Drive activity LED support
Online Capacity Expansion and RAID Level Migration
Battery Backup Unit (BBU) support
Enhanced data protection with write journaling for non-redundant arrays and accidental drive removal
Drive insertion and removal notification
Breakout cables included for direct connect
Array/Drive Status and drive identification LED support
RoHS Compliant

Raid Level:	0, 1, 10, 5, 50, Single Disk, and JBOD
Cache:	256MB
Celkový počet portu:	16
Počet internich portu:	16
Počet externich portu:	0
Typ konektoru:	SFF-8087 interní
Připojeni k PC:	PCI-Express x4
