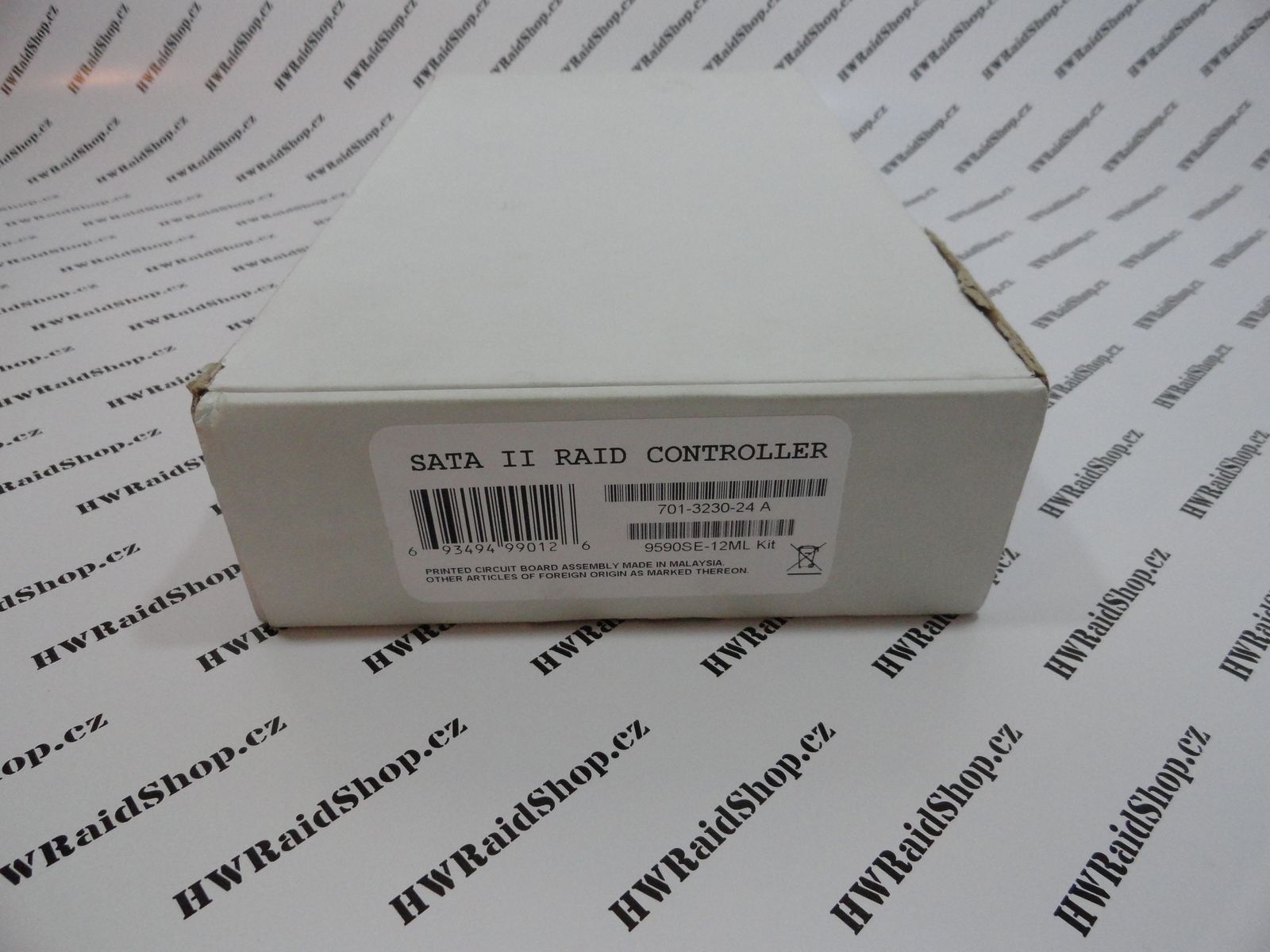

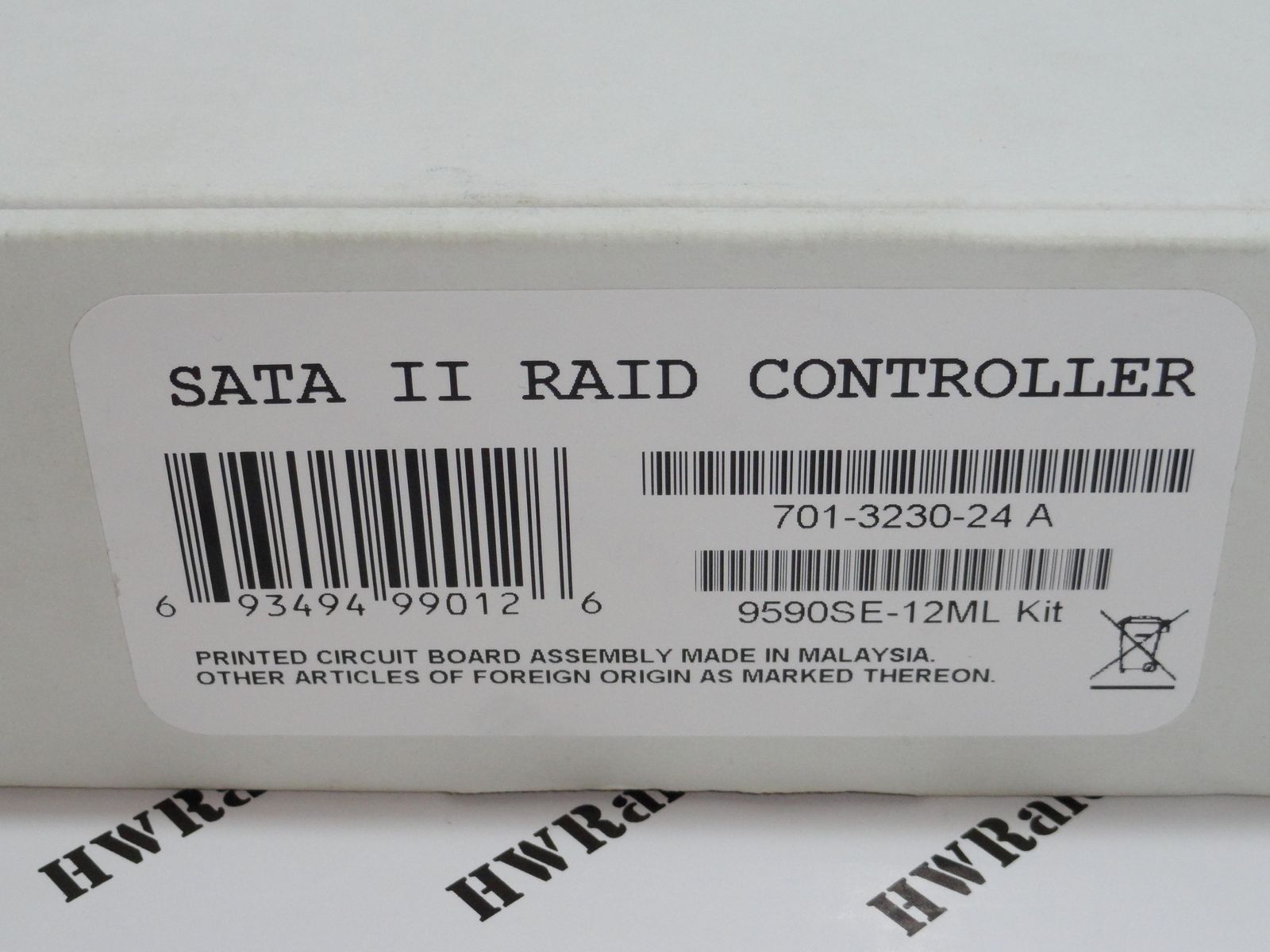

3ware 9590SE-12ML KIT

Úvod Řadiče SAS/SATA SAS/SATA II (3Gb/s)3ware 9590SE-12ML KIT
Sleva 3ware 9590SE-12ML KIT
3ware 9590SE-12ML KIT 3ware 9590SE-12ML KIT 3ware 9590SE-12ML KIT 3ware 9590SE-12ML KIT 3ware 9590SE-12ML KIT 3ware 9590SE-12ML KIT 3ware 9590SE-12ML KIT 3ware 9590SE-12ML KIT 3ware 9590SE-12ML KIT 3ware 9590SE-12ML KIT 3ware 9590SE-12ML KIT 3ware 9590SE-12ML KIT 3ware 9590SE-12ML KIT

3ware 9590SE-12ML KIT

Zboží je bazarové - Nové otevřené otestované balení 100% funkční

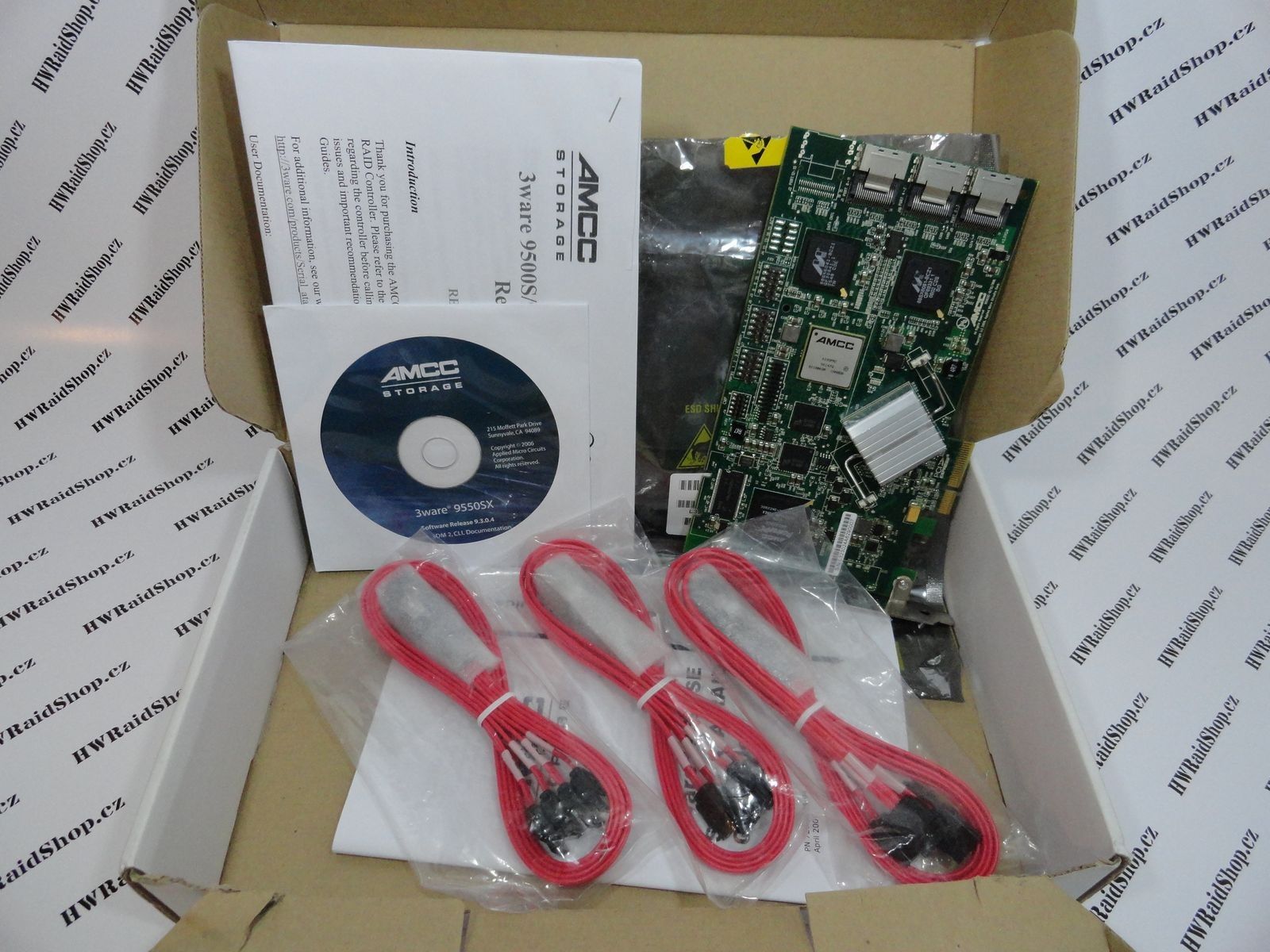

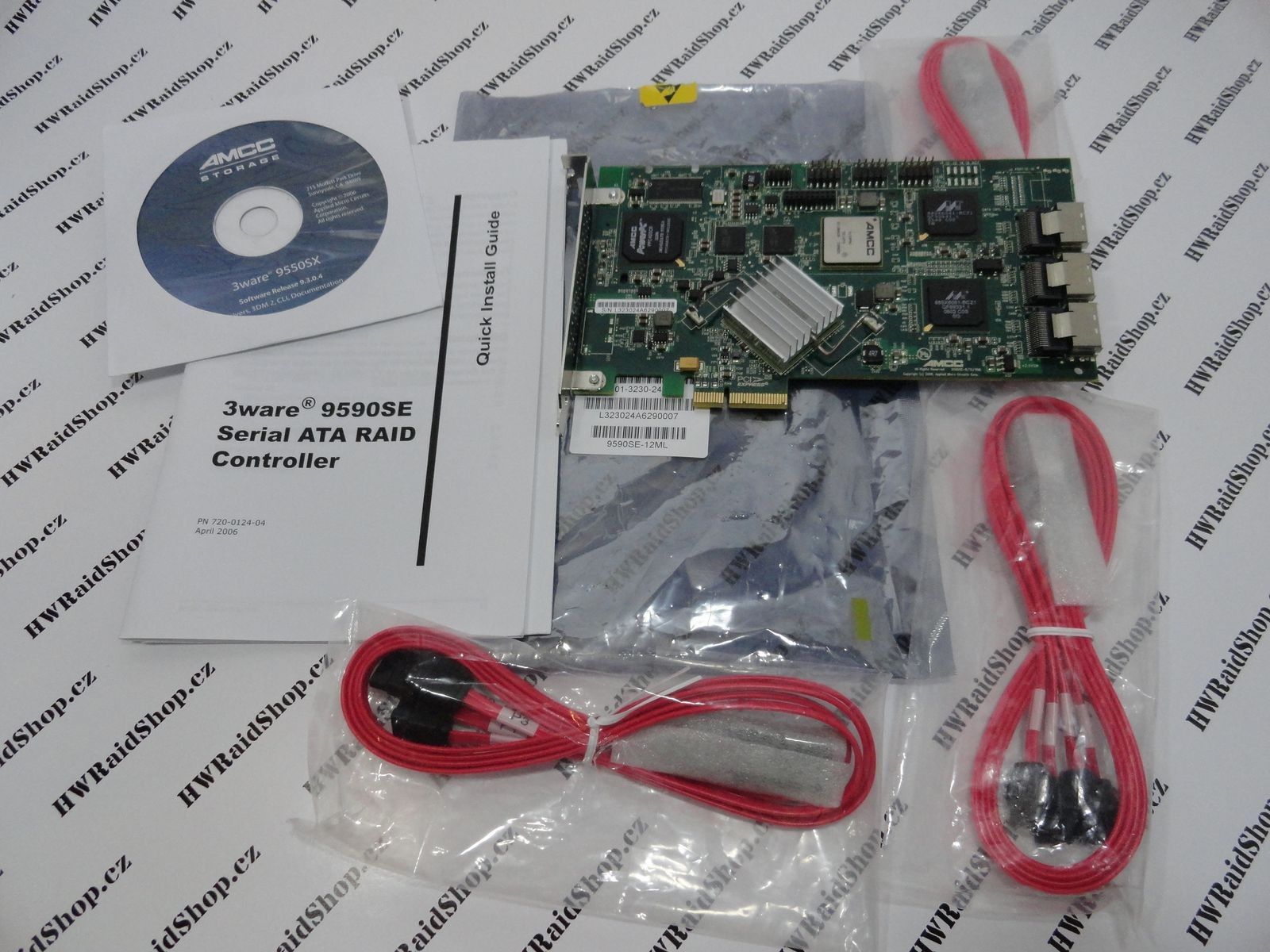

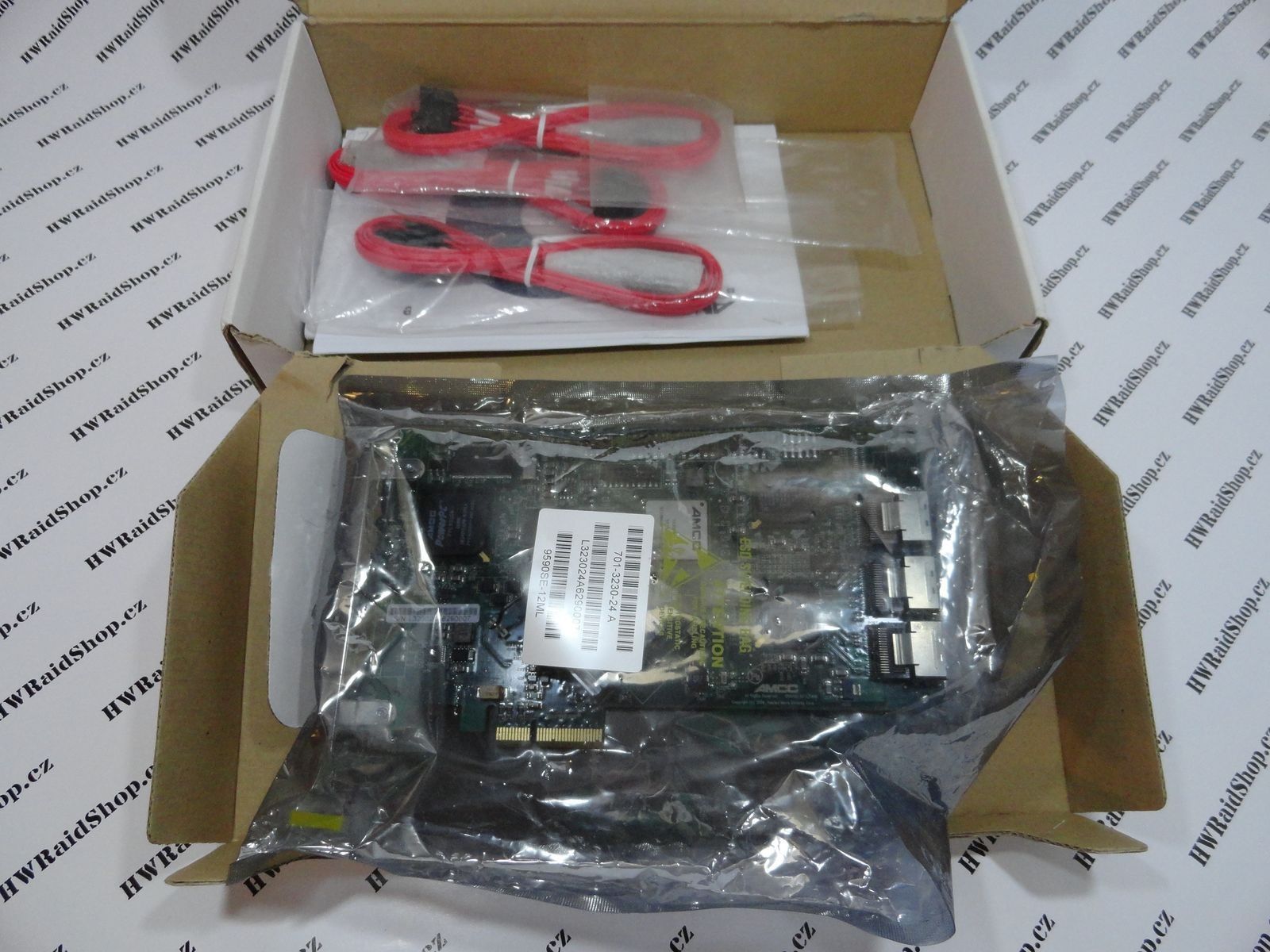

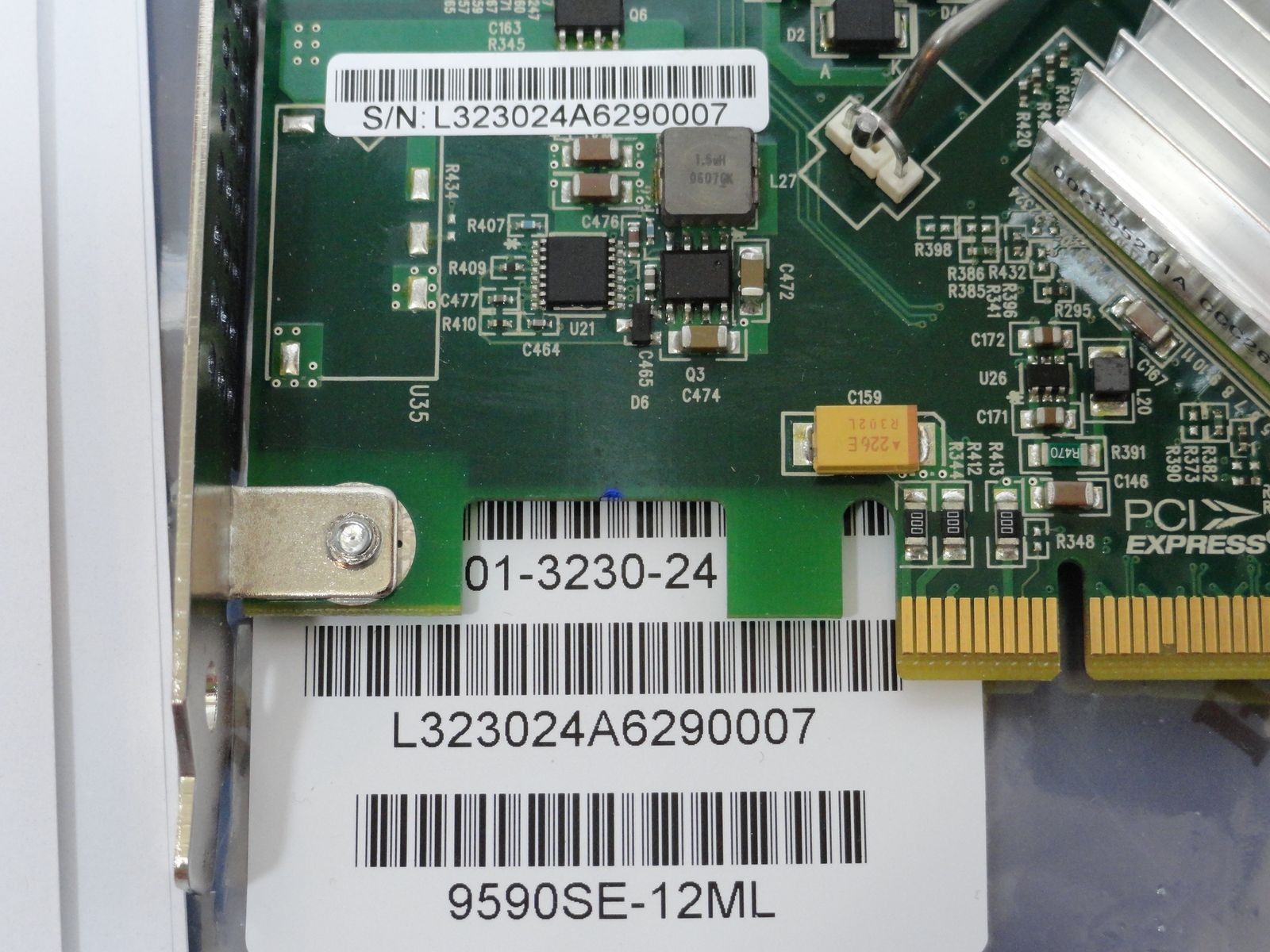

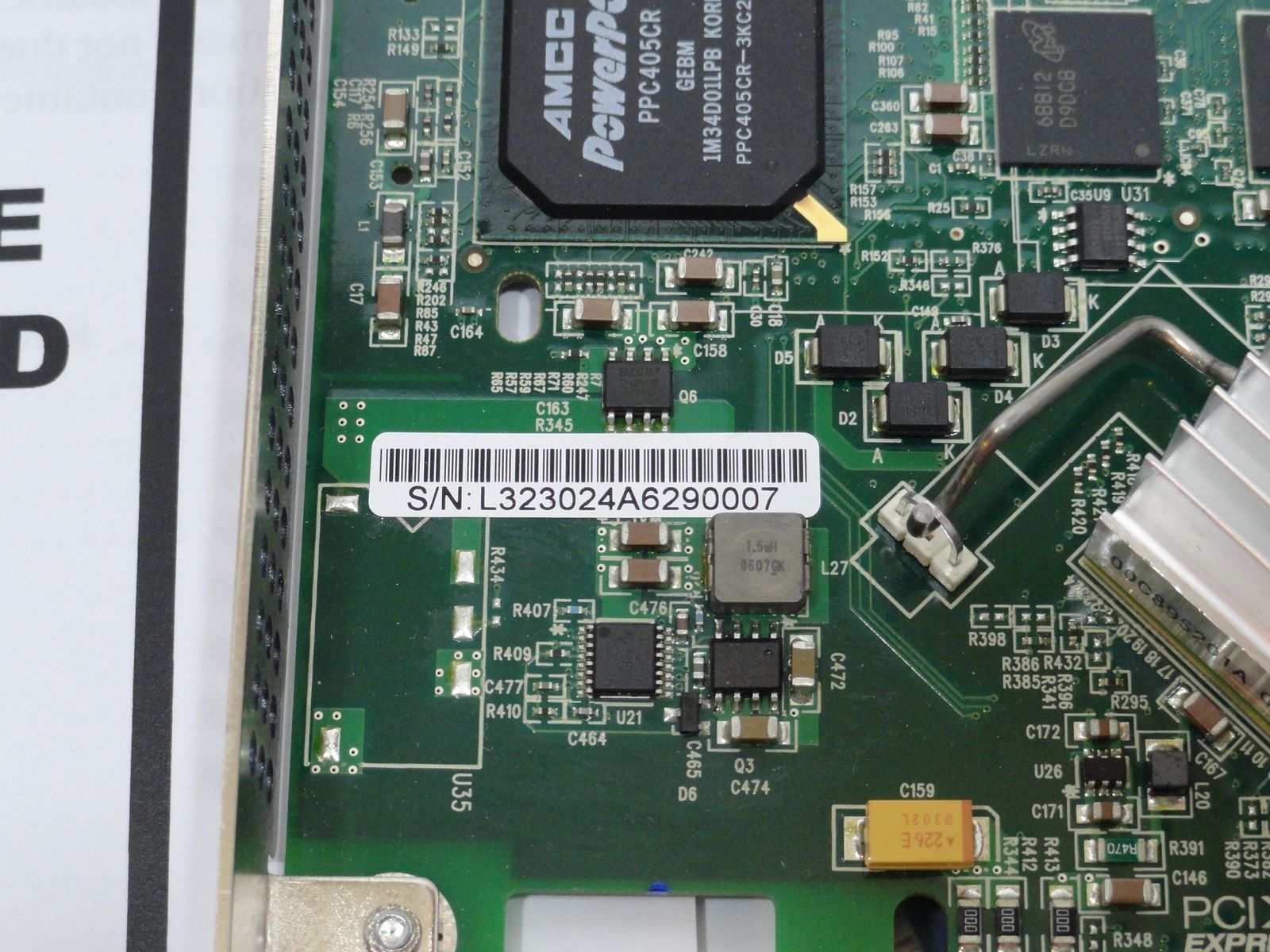

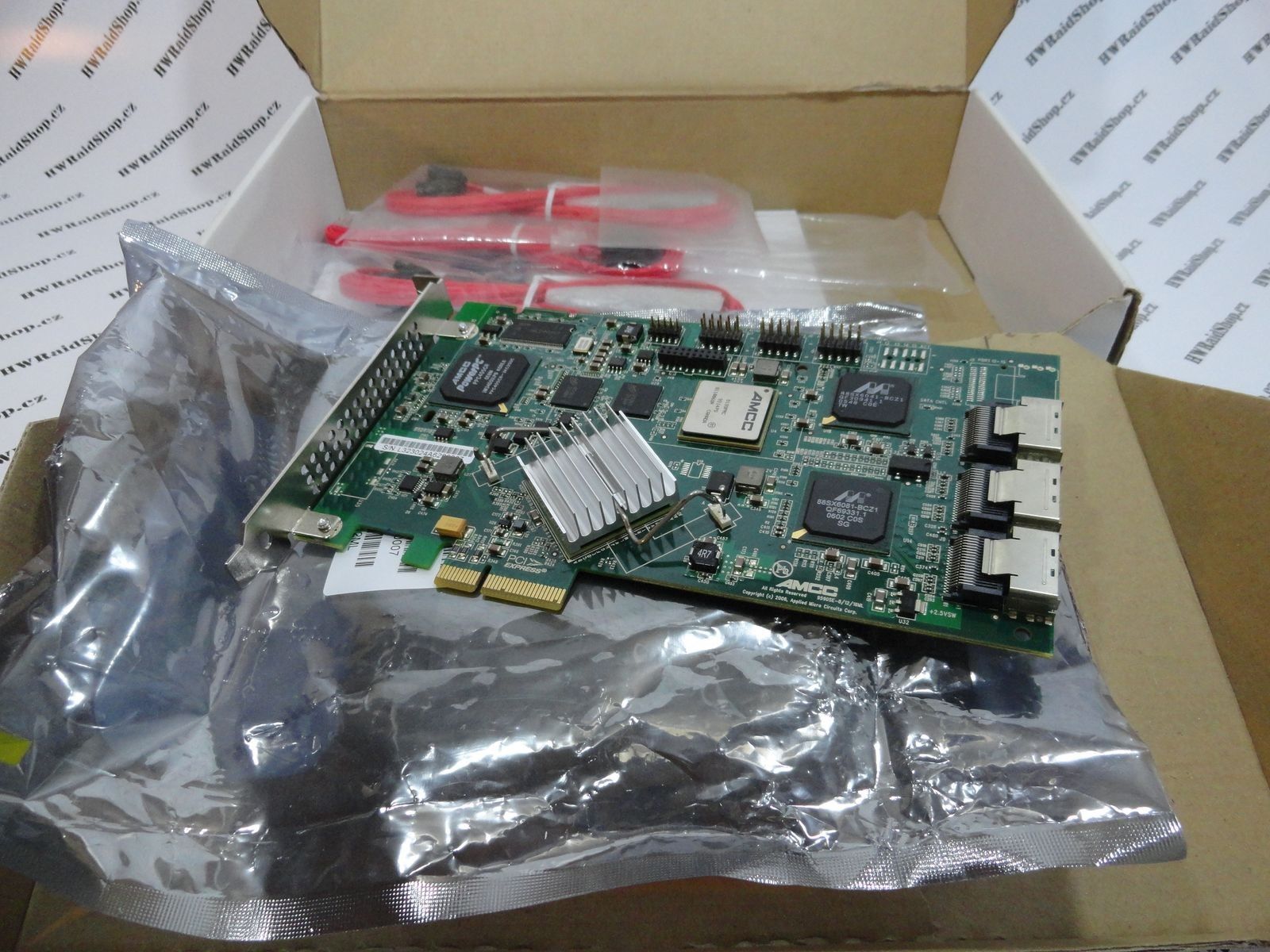

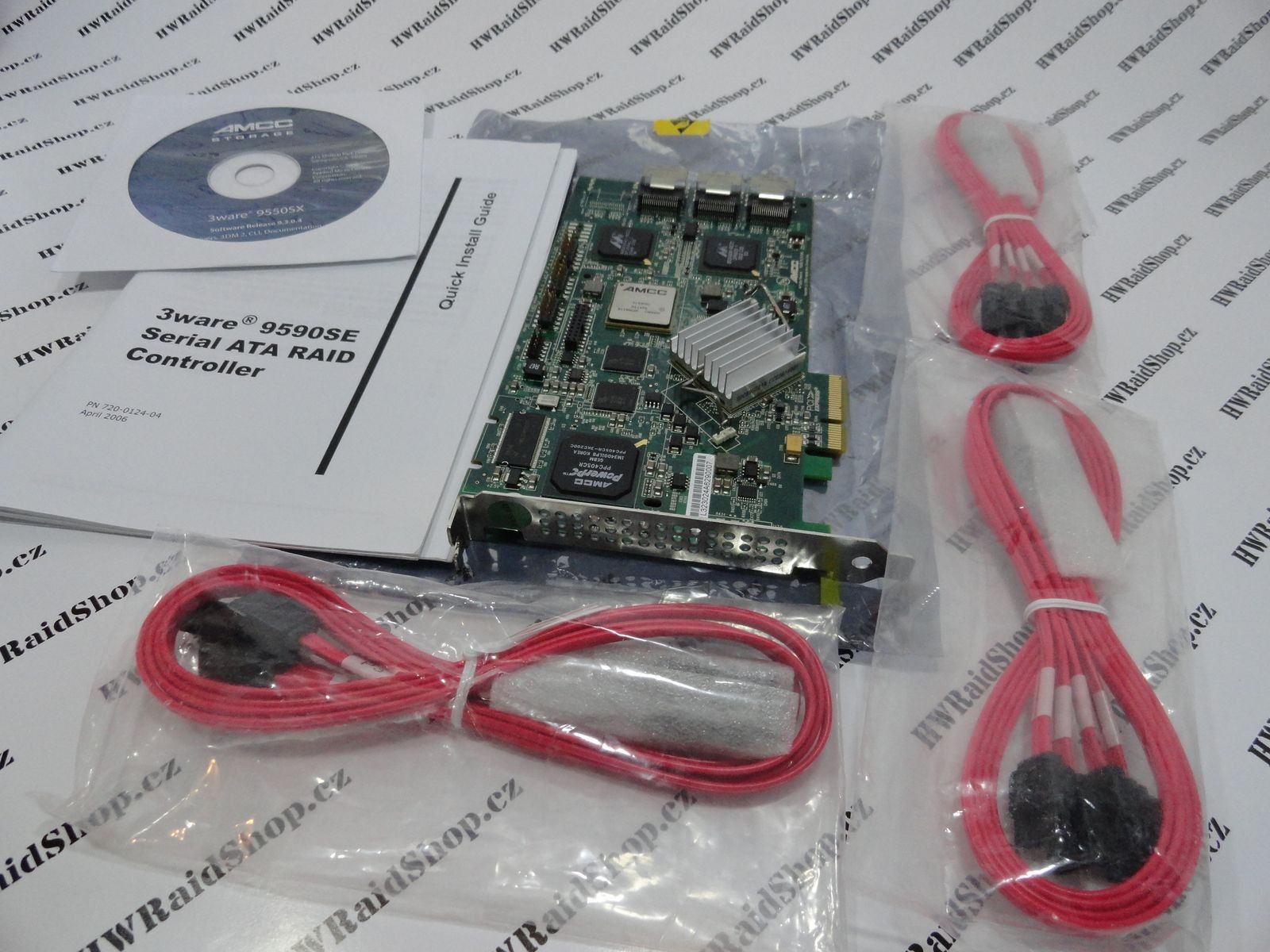

3WARE AMCC 9590SE-12ML, 12-kanálový SATA II řadič, multi-lane, PCIe x4, 256MB DDR2, KIT - obsahuje 3x miniSAS kabel to 4xsata

  • RAID Levels 0, 1, 10, 5, 50, Single Disk, and JBOD
  • Multi-lane Connector support up to 12 SATA II Internal Connectors
  • 3 Gb/s



Výrobce: AMCC/3WARE/LSI
Kód: 9590SE-12ML_K

Dostupnost: skladem
Počet ks: 1 ks
6 000,- Kč2 999,- Kč

3ware 9590SE-12ML KIT

3ware 9590SE-12ML

Model
Brand
3ware
Model
9590SE-12ML
Specifications
Type
SATA II (3.0Gb/s)
Internal Connectors
Multi-lane Connector support up to 12 SATA II
Interface
PCI Express x4
Transfer Rate
3 Gb/s
Cache Memory
256 MB DDR2 400 memory with ECC protection
RAID
RAID Levels 0, 1, 10, 5, 50, Single Disk, and JBOD
Operating Systems Supported
Microsoft Windows 2003/XP/2000, Red Hat Linux, SuSE Linux, Fedora Linux, 2.4 Linux kernel, 2.6 Linux kernel, FreeBSD, 32/64-bit support
Dimensions
7.3" x 4.4"
Features
Features
7th-generation StorSwitch non-blocking switched architecture
On-board I/O RISC processor and RAID offload provides true hardware RAID
Bootable array support for greater fault tolerance
Variable stripe size for performance tuning by application
64-bit LBA support
ATA pass-through mode support
32 pooled DMA channels
Complete configuration management suite
SNMP support
SMTP support for email/pager notification
ATA/6 and Out of band (OOB) staggered drive spin-up support
Auto carving allows logical units larger than 2 TB to be divided into multiple units for legacy operating systems that are limited to a maximum of 2 TB per logical unit
StorSave platform for advanced performance tuning with the BBU
Multiple logical unit sizes and RAID levels on one card
Multiple card support within a system for large storage requirements
Hot-swap and hot-spare support for data availability
Dynamic sector repair for robust data protection
S.M.A.R.T. disk drive monitoring for reliability
Emergency Flash Recovery protects against failed firmware upgrade
Drive activity LED support
Online Capacity Expansion and RAID Level Migration
Battery Backup Unit (BBU) support
Enhanced data protection with write journaling for non-redundant arrays and accidental drive removal
Drive insertion and removal notification
Breakout cables included for direct connect
Array/Drive Status and drive identification LED support
Raid Level: 0, 1, 10, 5, 50, Single Disk, and JBOD
Cache: 256MB
Celkový počet portu: 12
Počet internich portu: 12
Typ konektoru: SFF-8087 interní
Připojeni k PC: PCI-Express x4
