víceLSI MegaRAID SAS 9361-8i
LSI MegaRAID SAS 9361-8i
Použité
| Výrobce: | LSI (Avago/Broadcom) |
| Kód: | MM445 |
| Dostupnost: | skladem |
| Počet ks: | 1 ks |
8 990,- Kč

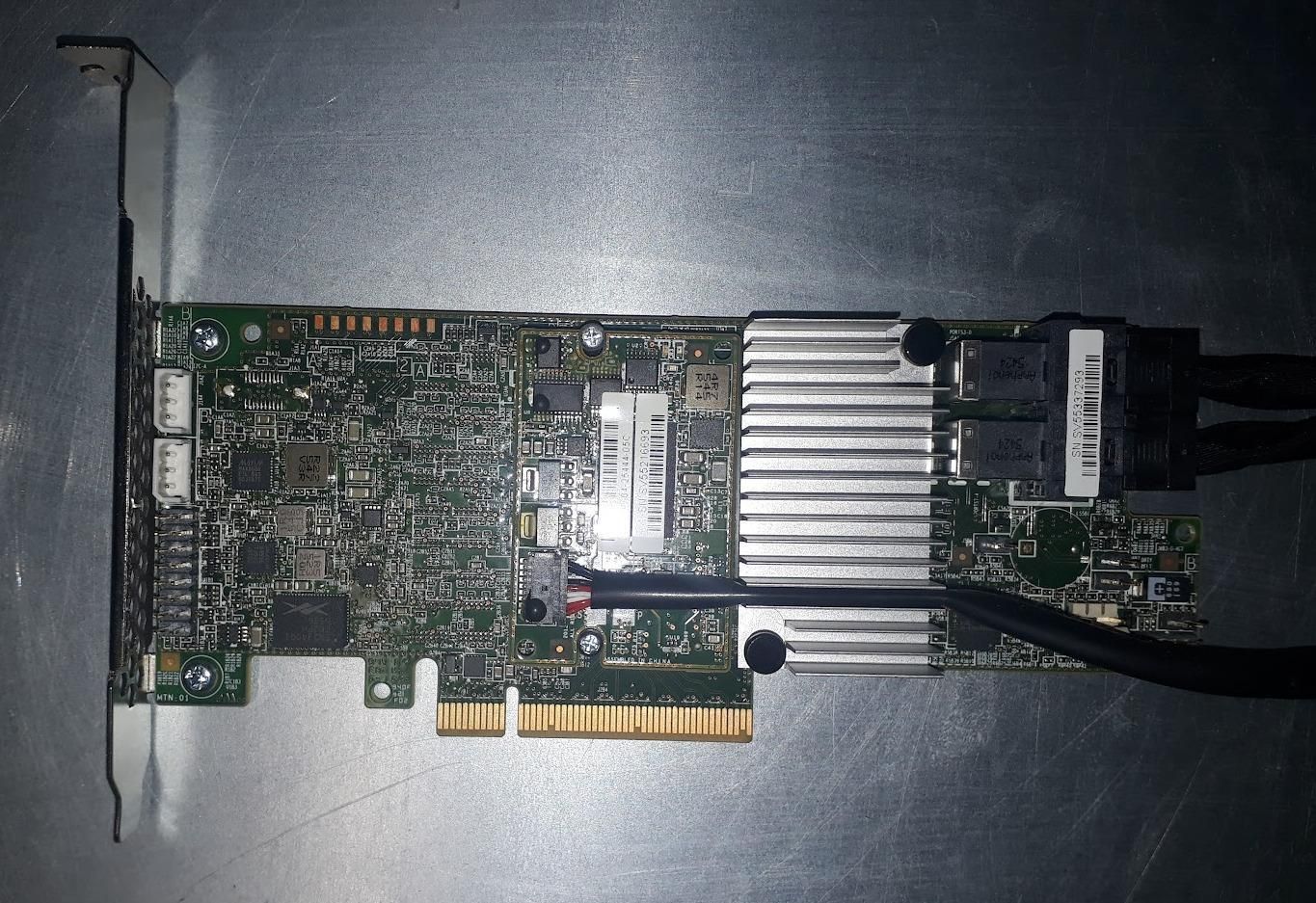

LSI MegaRAID SAS 9361-8i
LSI MegaRAID SAS 9361-8i 8x 12Gb/s SAS
(2x SFF-8643), PCIe 3.0 x8, 1024MB
05-25420-08
Cache Vault Module + SuperCap Capacitor
Dell MM445
MegaRAID LSI 9361-8i 12GB SAS/SATA RAID Controller
- LSI SAS 3108 dual core RAID on Chip (ROC)
- 8port (int) Pci-e 3.0 X8 SATA/SAS Raid Controller
- RAID 0, 1, 5, 6, 10, 50, 60
- 1GB 1866MHz DDRIII SDRAM
- CacheVault Flash Module backup capacitor
Datasheet: https://docs.broadcom.com/doc/BC00-0478EN
| Specification | Value |
|---|---|
| Lifecycle | Active |
| Distrib. Inventory | No |
| RAID-on-Chip Controller | LSISAS3108 dual core RAID on Chip (ROC) |
| What's in the box | MegaRAID SAS 9361-8i, QIG, LP bracket |
| Generation | 12 Gb/s |
| RAID Management Software | LSA (LSI Storage Authority), MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure) |
| Cache Protection | Optional CacheVault Flash Module (LSICVM02) Includes CVFM04, CVPM02, mounting clip, and cable |
| Physical Dimensions | MD2 Low profile (6.6" x 2.536") |
| Host Bus Type | x8 lane PCI Express® 3.0 |
| Cache Memory | 1GB 1866MHz DDRIII SDRAM |
| Internal Ports | 8 |
| Data Transfer Rates | Up to 12Gb/s per port |
| Devices Supported | Up to 240 SATA and/or SAS devices |
| Internal Connectors | 2 HD Mini-SAS SFF8643 (Horizontal mount) |
| MTBF | 1,343,187 hours |
| Operating Temperature | Maximum ambient: Controller Card with included CacheVault module: 55°C |
| Operating Voltage (V) | +12V, +3.3V |
| OS | Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. *Visit the downloads page for the most complete list of supported operating systems |
| Raid Level: | 0, 1, 5, 6, 10, 50, and 60 |
| Cache: | 1GB 1866MHz DDRIII SDRAM |
| Celkový počet portu: | 8 |
| Počet internich portu: | 8 |
| Typ konektoru: | mini SAS HD SFF-8643 interní |
| Připojeni k PC: | x8 lane PCI Express® 3.0 |
