Supermicro AOC-SASLP-MV8 8-Port SAS/SATA Card

Name: Supermicro AOC-SASLP-MV8 8-Port SAS/SATA Card
Brand: SUPERMICRO
Price: 1999 CZK
Availability: InStock

Úvod

Řadiče SAS/SATA

SAS/SATA II (3Gb/s)

Supermicro AOC-SASLP-MV8 8-Port SAS/SATA Card

Supermicro AOC-SASLP-MV8 8-Port SAS/SATA Card

Zboží je bazarové - otestované 100% funkční

Výrobce:	SUPERMICRO
Kód:	AOC-SASLP-MV8

Dostupnost:	skladem
Počet ks:	1 ks

1 999,- Kč

Supermicro AOC-SASLP-MV8 8-Port SAS/SATA Card

Supermicro AOC-SASLP-MV8 8-Port SAS/SATA Card

AOC-SASLP-MV8:
Product page:
http://www.supermicro.com/products/accessories/addon/AOC-SASLP-MV8.cfm
driver + firmware:
ftp://ftp.supermicro.com/driver/SAS/Marvell/MV8/SAS1/
Drivers: V3.1.0.22
firmware: V3.1.0.21

Add-on Card


Supermicro 8-Port SAS/SATA Card - (AOC-SASLP-MV8)

Summary

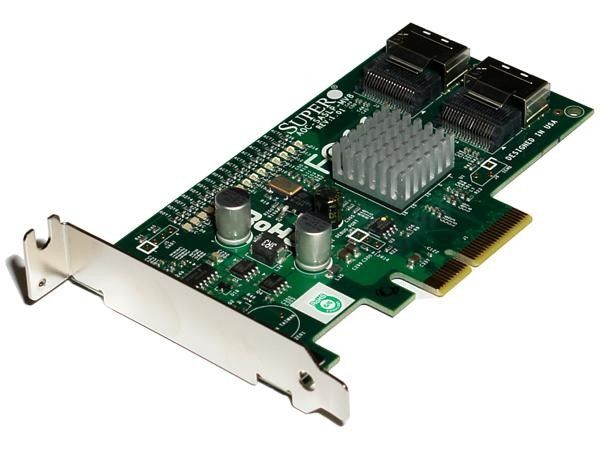

Supermicro's SASLP-MV8 controller (based on the Marvell 6480 host controller) provides 8-port SAS/SATA HDD support via PCI-E by 4 bus interface with high-performance features. Serving as a 3rd generation SAS/SATA storage card, the AOC-SASLP-MV8 offers double the data transfer rate of its 1st generation counterpart and offers functionalities for server, workstation and network storage environments in a low-profile PCI platform.

The SASLP-MV8 is ideal for storage arrays for Network Attached Storage (NAS) and Nearline Backup. Built with superior quality and features, the SASLP-MV8 will become an integral part of today's data storage solutions.

The SASLP-MV8 Installation CD contains drivers for Microsoft Windows and RedHat/SuSE/Fedora Linux operating systems.


Download

User's Guide	AOC-SASLP-MV8 User's Guide (PDF Format) [ Download ]

Key Features

• 8-channel SAS/SATA adapter with 300MB/s per channel • PCI-E x4 interface • Software RAID supported


Other Features

Benefit	Affordable, easy-install, eight-port SAS/SATA Card
Key Application	Storage arrays for Network Attached Storage (NAS) and Nearline Backup
Device Support	Up to 8 SAS/SATA disk drives, activity LED indicated for each drive (LED cables not included)
Data Transfer Rates	Up to 3.0 Gigabits/sec per port
RAID	Software RAID suported
Bus Type	PCI-E x4
Internal Connectors	2 SFF 8087 connectors
Warranty	2 Years Limited Warranty


Operating Systems

Supported Operating Systems	• Windows 2003, 2008 and Vista • RedHat Enterprise Linux • Fedora Linux 9 • SuSE Linux Enterprise
